Model: 15542
Spare part: Ball guide Kawasaki 1902017510 SKS Part number: 1902017510 Cross-Number: YW10V00005S156,..
26.28 $
excl. VAT 21.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12926
Spare part: Drive Shaft Kawasaki K3SP30, K3SP36 L=257.7 mm, 15T HANDOK Part number: Cross-Number: Us..
83.40 $
excl. VAT 69.50 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 12925
Spare part: Drive Shaft Kawasaki K3SP30, K3SP36 L=280.0 mm, 15T HANDOK Part number: Cross-Number: Us..
91.80 $
excl. VAT 76.50 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 12884
Spare part: Gear pump Kawasaki YT10V00004F1 HANDOK Part number: YT10V00004F1 Cross-Number: Use in: P..
201.36 $
excl. VAT 167.80 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 12885
Spare part: Gear pump Kawasaki YT10V00005F1 HANDOK Part number: YT10V00005F1 Cross-Number: 190201760..
293.76 $
excl. VAT 244.80 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 13979

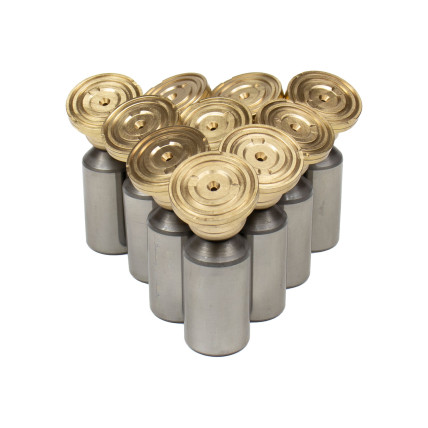

Spare part: Piston shoe Kawasaki PY10V00003S011 SKS Part number: PY10V00003S011 Cross-Number: Use in..
20.52 $
excl. VAT 17.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15545
Spare part: Retainer Plate Kawasaki 1902017509 SKS Part number: 1902017509 Cross-Number: PY10V00003S..
33.48 $
excl. VAT 27.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12887
Spare part: Servo Piston Kawasaki YT10V00003S532 HANDOK Part number: YT10V00003S532 Cross-Number: 19..
27.00 $
excl. VAT 22.50 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12646
Spare part: Spring of Ball guide Kawasaki YT10V00003S157 SKS Part number: YT10V00003S157 Cross-Numbe..
1.92 $
excl. VAT 1.60 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 12650
Spare part: Swash plate Ball Kawasaki YT10V00003S215 SKS Part number: YT10V00003S215 Cross-Number: 1..
18.84 $
excl. VAT 15.70 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 12649
Spare part: Swash plate Ball Kawasaki YT10V00003S216 SKS Part number: YT10V00003S216 Cross-Number: 1..
18.84 $
excl. VAT 15.70 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 12891
Spare part: Tilting Pin Kawasaki YT10V00003R300 HANDOK Part number: YT10V00003R300 Cross-Number: 190..
34.32 $
excl. VAT 28.60 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 15546

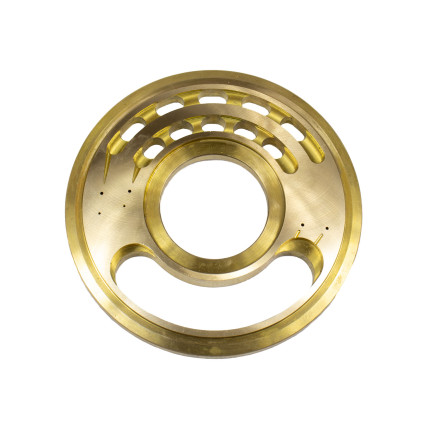

Spare part: Valve plate Right Kawasaki YT10V00003R100 SKS Part number: YT10V00003R100 Cross-Number: ..
102.12 $
excl. VAT 85.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12881
Pre-Order
Spare part: Ball guide Kawasaki 2437U188S156 HANDOK Part number: 2437U188S156 Cross-Number: YW10V000..
23.04 $
excl. VAT 19.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12880
Pre-Order

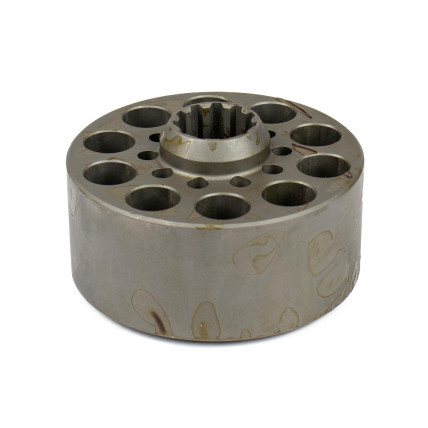

Spare part: Cylinder block Rotor Kawasaki PY10V00003S013 HANDOK Part number: PY10V00003S013 Cross-Nu..
179.40 $
excl. VAT 149.50 $
Main hydraulic units:
Main hydraulic units
Kawasaki K3SP30 hydraulic pump specifications
The Kawasaki K3SP30 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in mobile and industrial equipment.
Technical specifications of the Kawasaki K3SP30 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 30 cm3/rev
- Nominal pressure: 320 bar
- Maximum pressure: 350 bar
- Maximum rotation speed: up to 2700 rpm
- Weight: about 27 kg
- Direction of rotation: right (clockwise)
- Mounting type: SAE flange with splined shaft
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
- Applications: injection machines, fans, excavators, loaders, cranes, tractors, combines, garbage trucks
Design features of the Kawasaki K3SP30 hydraulic pump:
- Configurations: single-section
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Additional options: presence or absence of PTO (power take-off shaft)
The Kawasaki K3SP30 hydraulic pump has the following advantages::
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump models: K3SP30-110R-9001, K3SP30-110R-2C01
Hydraulic pump cross number: PY10V00003F1, PY10V00001F1, YJ10V00001F1, YW10V00005S156, 1902017510, 2437U188S156, YT10V00003S157, 1902017511, 2437U188S157, 1902017501, YT10V00004F1, YT10V00005F1, 1902017600, SDYA255R338, PY10V00003S013, YT10V00003R500, 1902017592, 1902024192, PY10V00003S011, YT10V00003S532, 1902017529, PY10V00003S532, YT10V00003S153, 1902017509, PY10V00003S153, YT10V00003S215, YT10V00003S216, 1902017514, 1902017515, YT10V00003R200, 1902017594, YT10V00003R300, 1902017596, PY10V00003S530, YT10V00003R100, 1902017593, 1902024193, 1902017503, 1902017504, 1902017558, 1902017599
Installed in the model: Kobelco SK50-2YR, Case CX50
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K3SP30 hydraulic pump.
