Model: 13293
Coupling 208-38-11120 140H Komatsu — elastic coupling for transmitting torque between aggregates wit..
124.80 $
excl. VAT 104.00 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6640
Coupling assembled (bolt) CF-A-140 140A Centaflex — elastic coupling with a gear hub for the transfe..
138.24 $
excl. VAT 115.20 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 13287
Coupling assembled (bolt) CF-A-022 22A Centaflex — elastic coupling with a gear hub for the transfer..
45.00 $
excl. VAT 37.50 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6632
Coupling assembled (bolt) CF-A-028 28A Hitachi — elastic coupling with a gear hub for the transfer o..
38.40 $
excl. VAT 32.00 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6633
Coupling assembled (bolt) 4275308 30A Hitachi — elastic coupling with a gear hub for the transfer of..
55.80 $
excl. VAT 46.50 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6628
Coupling assembled (bolt) CF-A-004 4A Centaflex — elastic coupling with a gear hub for the transfer ..
27.24 $
excl. VAT 22.70 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6615
Coupling assembled (bolt) 331/25063 50AS JCB — elastic coupling with a gear hub for the transfer of ..
61.44 $
excl. VAT 51.20 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6638
Coupling assembled (bolt) CF-A-090 90A Centaflex — elastic coupling with a gear hub for the transfer..
123.00 $
excl. VAT 102.50 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6631
Coupling assembled (bolt) 4246158 Hitachi — elastic coupling with a gear hub for the transfer of tor..
49.92 $
excl. VAT 41.60 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6629
Coupling assembled (bolt) 4426513 Hitachi — elastic coupling with a gear hub for the transfer of tor..
31.32 $
excl. VAT 26.10 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6639
Coupling assembled (pin) CF-A-140 140A Centaflex — flexible coupling with an inner element for torqu..
187.32 $
excl. VAT 156.10 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 3873
Coupling assembled (pin) CF-A-140 140A Hitachi — flexible coupling with an inner element for torque ..
176.88 $
excl. VAT 147.40 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 6630
Coupling assembled (pin) 4393115 16A Hitachi — flexible coupling with an inner element for torque tr..
54.00 $
excl. VAT 45.00 $
Hydraulics:
Couplings & Components
Most Viewed

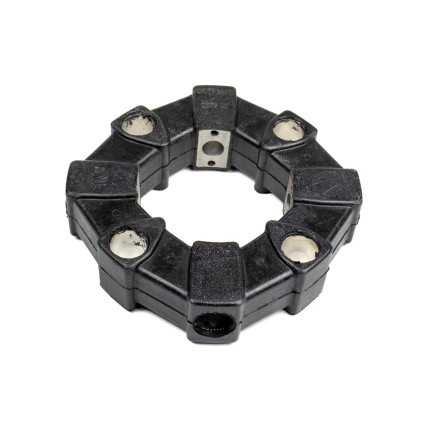

Model: 13286
Coupling assembled (pin) CF-A-022 22A Kobelco — flexible coupling with an inner element for torque t..
48.84 $
excl. VAT 40.70 $
Hydraulics:
Couplings & Components
Most Viewed
Model: 11039
Coupling assembled (pin) CF-A-025 25A Centaflex — flexible coupling with an inner element for torque..
57.48 $
excl. VAT 47.90 $
Hydraulics:
Couplings & Components
Centaflex Elastic Couplings
Centaflex is a series of elastic couplings used to connect two shafts in mechanical systems such as engines, drives, pumps, and other industrial applications. The manufacturer of the Centaflex coupling series is CENTA, a company specializing in the development and production of flexible couplings for various industries.
The Centaflex elastic coupling is characterized by high elasticity and the ability to compensate for radial, axial, and angular misalignments between shafts. They ensure smooth transmission of torque, reduce vibration and noise, and provide equipment protection against overload.
The Centaflex series includes various coupling models that may differ in size, characteristics, and manufacturing materials, such as polyurethane or rubber. Some models may have special design features, such as torsional springs or gear engagement, to improve the elastic properties of the coupling.
To select the appropriate Centaflex elastic coupling for your application, you should consider the equipment characteristics, operating conditions, and shaft specifications.

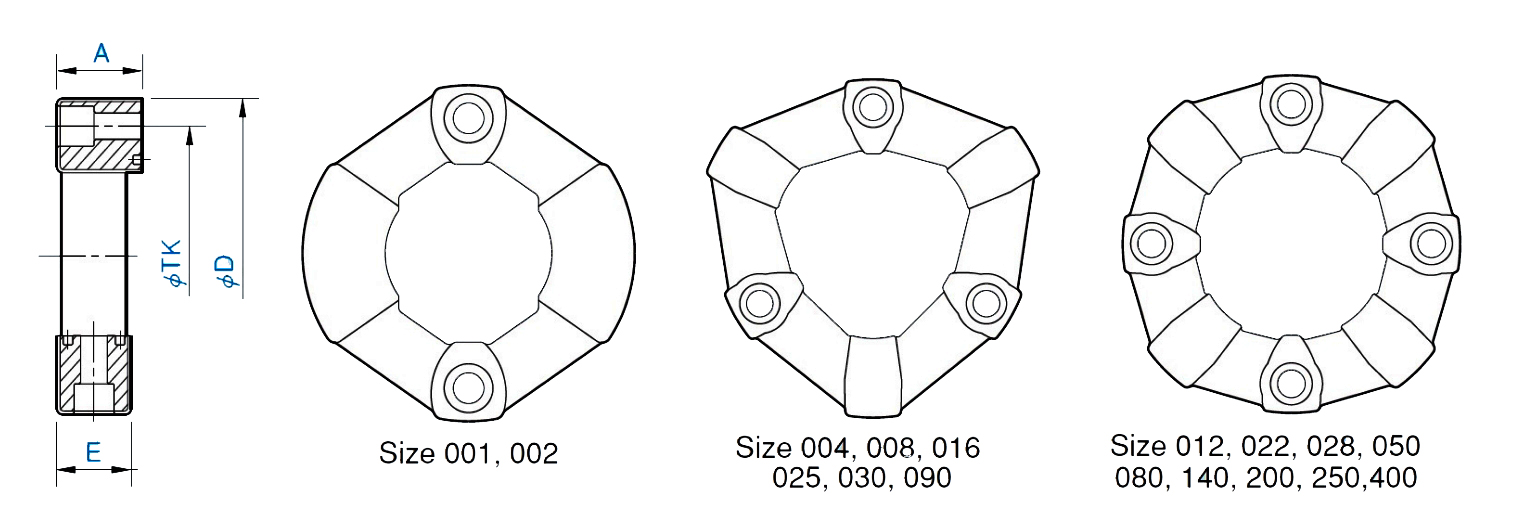

Centaflex-A Series Technical Specifications
| Marking | Article | D, mm | TK, mm | A, mm | E, mm |
|---|---|---|---|---|---|
| Centaflex-A size 1 | CF-A-001 | 56 | 44 | 24 | 22 |
| Centaflex-A size 2 | CF-A-002 | 85 | 68 | 24 | 20 |
| Centaflex-A size 4 | CF-A-004 | 100 | 80 | 28 | 24 |
| Centaflex-A size 8 | CF-A-008 | 120 | 100 | 32 | 28 |
| Centaflex-A size 12 | CF-A-012 | 120 | 100 | 32 | 28 |
| Centaflex-A size 16 | CF-A-016 | 150 | 125 | 42 | 36 |
| Centaflex-A size 22 | CF-A-022 | 150 | 125 | 42 | 36 |
| Centaflex-A size 25 | CF-A-025 | 170 | 140 | 46 | 40 |
| Centaflex-A size 28 | CF-A-028 | 170 | 140 | 46 | 40 |
| Centaflex-A size 30 | CF-A-030 | 200 | 165 | 58 | 50 |
| Centaflex-A size 50 | CF-A-050 | 200 | 165 | 58 | 50 |

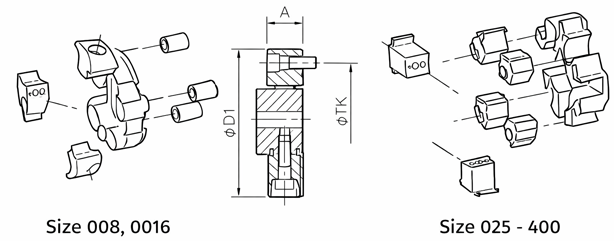

Centaflex CF-H Series Technical Specifications
| Marking | Article | Tk, mm | D1, mm | A, mm |
|---|---|---|---|---|
| Centaflex CF-H-8 Type 8H | CFH008 | 100 | 125 | 32 |
| Centaflex CF-H-16 Type 16H | CFH016 | 120 | 155 | 41 |
| Centaflex CF-H-25 Type 25H | CFH025 | 140 | 182 | 47 |
| Centaflex CF-H-30 Type 30H | CFH030 | 165 | 205 | 56 |
| Centaflex CF-H-50 Type 50H | CFH050 | 165 | 205 | 50 |
| Centaflex CF-H-90 Type 90H | CFH090 | 165 | 215 | 56 |
| Centaflex CF-H-110 Type 110H | CFH110 | 180 | 230 | 56 |
| Centaflex CF-H-140 Type 140H | CFH140 | 215 | 270 | 56 |
| Centaflex CF-H-160 Type 160H | CFH160 | 215 | 270 | 59 |
| Centaflex CF-H-240 Type 240H | CFH240 | 260 | 330 | 65 |
| Centaflex CF-H-400 Type 400H | CFH400 | 324.5 | 397 | 58 |
