Model: 11976

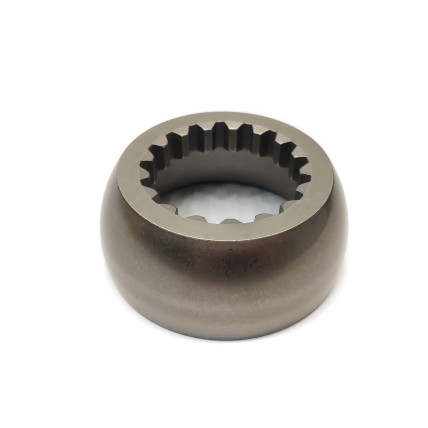

Spare part: Ball guide Hitachi 263H7-17141 SKS Part number: 263H7-17141 Cross-Number: 3100739 Use in..
52.44 $
excl. VAT 43.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11975

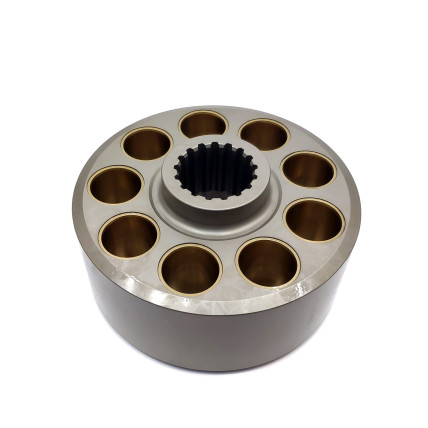

Spare part: Cylinder block Rotor Hitachi 263G7-17941 SKS Part number: 263G7-17941 Cross-Number: 263H..
563.04 $
excl. VAT 469.20 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 12956

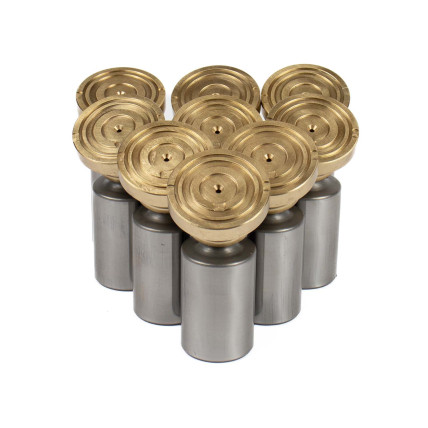

Spare part: Piston shoe Hitachi 263G7-17571 SKS Part number: 263G7-17571 Cross-Number: Use in: Pleas..
52.44 $
excl. VAT 43.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11977

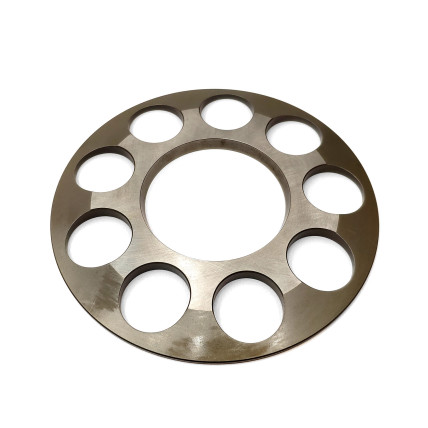

Spare part: Retainer Plate Hitachi 263H7-17151 SKS Part number: 263H7-17151 Cross-Number: Use in: Pl..
47.28 $
excl. VAT 39.40 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11978

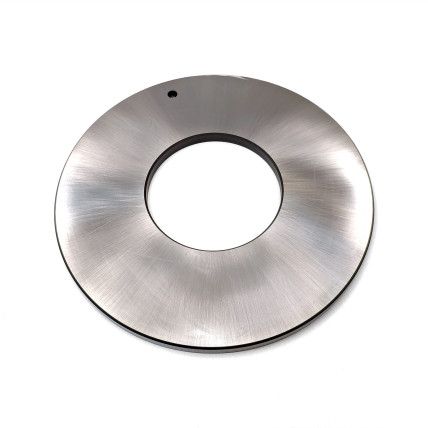

Spare part: Shoe plate Hitachi 263H7-17121 SKS Part number: 263H7-17121 Cross-Number: Use in: Please..
43.08 $
excl. VAT 35.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12957

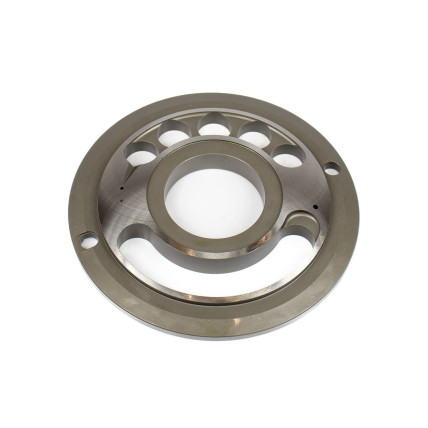

Spare part: Valve plate Right Hitachi 263G7-17941 SKS Part number: 263G7-17941 Cross-Number: 263H7-1..
70.44 $
excl. VAT 58.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 2845
Pre-Order
Spare part: Gear pump Hitachi 9217994 HANDOK
Part number: 9217994
Cross-Number: 9217993, 922..
188.64 $
excl. VAT 157.20 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11958
Pre-Order

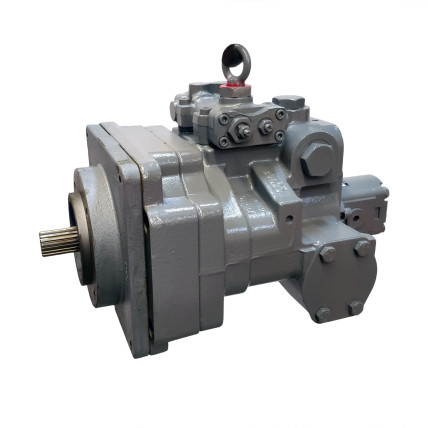

Spare part: Hydraulic Pump assembly Hitachi 9255402 HITACHI Part number: 9255402 Cross-Number: 263J7..
14,650.80 $
excl. VAT 12,209.00 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 12958
Pre-Order

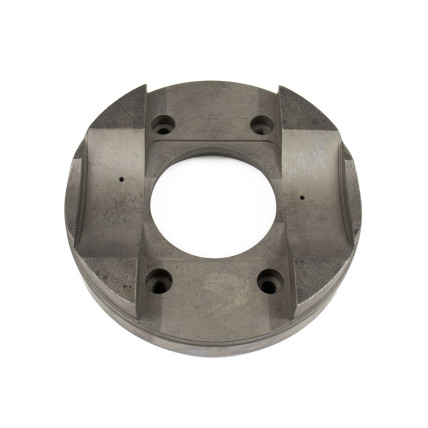

Spare part: Support Hitachi 263H7-17101 SKS Part number: 263H7-17101 Cross-Number: Use in: Please ma..
255.36 $
excl. VAT 212.80 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 12959
Pre-Order

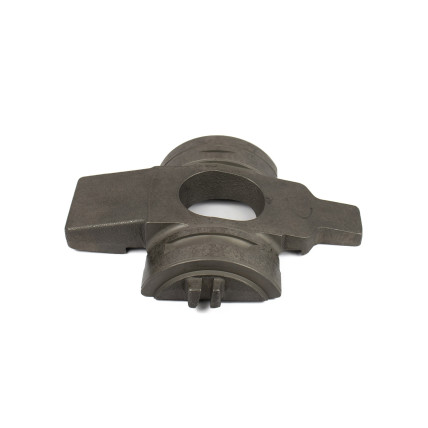

Spare part: Swash plate (Cam rocker) Hitachi 263H7-17111 SKS Part number: 263H7-17111 Cross-Number: ..
242.04 $
excl. VAT 201.70 $
Main hydraulic units:
Main hydraulic units
Hitachi HPK170BS pump specifications
The HPK170BS hydraulic pump is an axial piston pump with a slant block, used in powerful hydraulic systems for construction, industrial and mining equipment. It provides high performance and reliability even in difficult operating conditions.
Technical specifications Hitachi HPK170BS:
- Type: Axial piston pump with inclined block
- Maximum working volume: 170 cm³ per revolution
- Working pressure
- Nominal pressure: 31.5 MPa 315 bar
- Maximum pressure: 35 MPa 350 bar
- Rotation speed:
- Maximum: 1900-2000 rpm
- Weight: 150–170 kg, depending on configuration
- Used in hydraulic systems for:
- Heavy-duty excavators
- Front-end loaders
- Mining equipment
- Other special equipment for heavy-duty work
Hydraulic pump cross number Hitachi HPK170BS: 263H7-12021, 263H7-12022, 263J7-12021, 263J7-12022, YB60000215
Installed in Hitachi models: ZW250, ZX310
The company "Aspect Plus" offers a wide range of spare parts for repairing the Hitachi HPK170BS hydraulic pump.
