Model: 14345
Ball guide R902439437 Bosch Rexroth — holds spherical elements in a defined position relative to the..
74.28 $
excl. VAT 61.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8041
Ball guide Washer R902400545 Bosch Rexroth — compensates for angular misalignment between the pressu..
9.48 $
excl. VAT 7.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8054
Bias Spring R909436881 Bosch Rexroth — generates a preload force on the servo piston, returning the ..
8.16 $
excl. VAT 6.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed

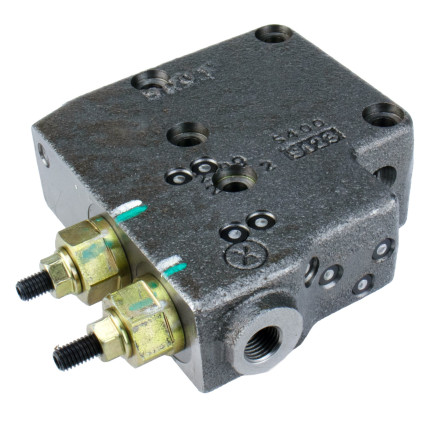

Model: 18193
Control Valve Regulator R909437826 Bosch Rexroth — automatically controls the working volume ofthe h..
434.16 $
excl. VAT 361.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10735
Cradle Bearing Cage R913027002 Bosch Rexroth — holds the rollers in a defined position and ensures t..
36.96 $
excl. VAT 30.80 $
Hydraulics:
Pump & Motor Parts
Top
Most Viewed
Model: 15296
Cradle Bearing Set R913027002 R902066600 Bosch Rexroth — ensures smooth tilting of the hydraulic pum..
81.36 $
excl. VAT 67.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 11034
Cylinder block Rotor R902439442 Bosch Rexroth — converts the working fluid flow into mechanical moti..
474.24 $
excl. VAT 395.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8047
Drive Shaft Bosch Rexroth A11VO190 — transmits torque to the rotor group and drives the piston group..
161.64 $
excl. VAT 134.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8046
Drive Shaft Bosch Rexroth A11VO190 — transmits torque to the rotor group and drives the piston group..
107.76 $
excl. VAT 89.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8045
Drive Shaft Bosch Rexroth A11VO190 — transmits torque to the rotor group and drives the piston group..
107.76 $
excl. VAT 89.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8049
Drive Shaft Bosch Rexroth A11VO190 — transmits torque to the rotor group and drives the piston group..
107.76 $
excl. VAT 89.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8048
Drive Shaft Bosch Rexroth A11VO190 — transmits torque to the rotor group and drives the piston group..
107.76 $
excl. VAT 89.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8043
Fix Plate of Retainer Plate R902007712 Bosch Rexroth — holds the piston retainer plate in a defined ..
84.60 $
excl. VAT 70.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 17078
Piston shoe Bosch Rexroth A11VO190 — performs reciprocating motion within the cylinder of the block,..
75.48 $
excl. VAT 62.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 13649
Piston shoe R902438137 Bosch Rexroth — performs reciprocating motion within the cylinder of the bloc..
39.36 $
excl. VAT 32.80 $
Hydraulics:
Pump & Motor Parts
Bosch Rexroth A11V190 A11VO190 A11VLO190 — axial piston pump 190 cm³
The Bosch Rexroth A11V190 A11VO190 A11VLO190 hydraulic pump is an axial piston variable displacement pump designed for hydraulic systems of heavy construction, forestry and industrial equipment. Pumps of the A11V series are known for their high efficiency, reliability and stable operation under heavy loads.
The A11V190 / A11VO190 / A11VLO190 models are used in hydraulic systems of truck-mounted concrete pumps, forestry machines, wheeled excavators and other specialized equipment where stable hydraulic power transmission and precise hydraulic oil flow control are required.
The full model range is available in the section Bosch Rexroth A11V series.
Technical specifications
- Type: axial piston
- Displacement: 190 cm³
- Operating pressure:
- Nominal: up to 35 MPa / 350 bar
- Maximum: up to 40 MPa / 400 bar
- Maximum rotation speed: 1800 rpm
- Flow rate (at maximum speed): up to 342 l/min
- Weight: 80–85 kg
OEM numbers Bosch Rexroth A11V190
-
JCB
- JRJ0215
- 333/J4316
- 334/J0641
Part numbers Bosch Rexroth A11V190
-
Bosch Rexroth
- R909157194
- R909156745
- R902400547
-
Caterpillar
- 179-6916
Applications
-
KCP
- KCP20Z120 — Truck-mounted concrete pump
- KCP24ZX120 — Truck-mounted concrete pump
- KCP28ZX120 — Truck-mounted concrete pump
- KCP31ZX5170 — Truck-mounted concrete pump
-
John Deere
- 1270D — Forestry harvester
-
Parker
- PVE5021 — Hydraulic pump
-
Logset
- 8H — Forestry harvester
-
JCB
- JS200W — Wheeled excavator
Spare parts for Bosch Rexroth A11V190 A11VO190 A11VLO190
- Cylinder block
- Pump shaft
- Bushing
- Spherical bushing
- Elastic ring
- Retaining ring
- Charge pump
- Bearing
- Roller bearing
- Pressure plate
- Swash plate
- Piston with slipper
- Pump repair kit
- Pump seal
- Valve plate
- Pressure relief valve
- Pump regulator
- Servo piston
Repair and service Bosch Rexroth A11V190
Repair of the Bosch Rexroth A11V190 hydraulic pump includes diagnostics of pressure and flow parameters as well as inspection of the piston group and valve plate. After worn components are identified, defective parts are replaced and the pump is tested on a hydraulic test bench.
- Hydraulic system diagnostics
- Inspection of cylinder block and piston group
- Replacement of bearings, seals and repair kits
- Checking and adjustment of the regulator
- Final testing on a hydraulic test bench
Spare parts diagram Bosch Rexroth A11V190
Spare parts diagram
Technical specifications verified by the Aspect Plus technical catalog.
