Model: 15355
Ball guide 0011033139 Sauer-Danfoss — holds spherical elements in a defined position relative to the..
32.64 $
excl. VAT 27.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 16004
Cradle Bearing Set Sauer-Danfoss H1P060 — ensures smooth tilting of the hydraulic pump cradle when t..
108.48 $
excl. VAT 90.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15356
Cylinder block press Pin 0011040075 Sauer-Danfoss — prevents the cylinder block from rotating relati..
2.28 $
excl. VAT 1.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 16039
Cylinder block Rotor 0011050267 Sauer-Danfoss — converts the working fluid flow into mechanical moti..
233.88 $
excl. VAT 194.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed

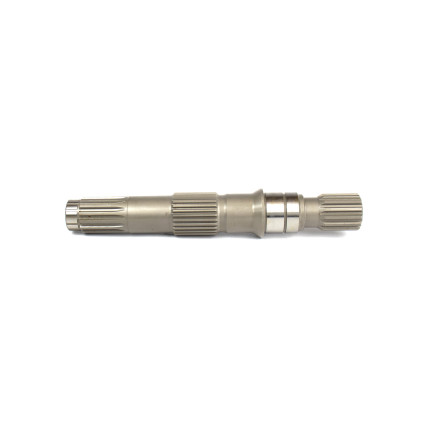

Model: 15352
Drive Shaft 0011038238 Sauer-Danfoss — transmits torque to the rotor group and drives the piston gro..
173.64 $
excl. VAT 144.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15353
Piston shoe 0011087709 Sauer-Danfoss — performs reciprocating motion within the cylinder of the bloc..
21.96 $
excl. VAT 18.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed

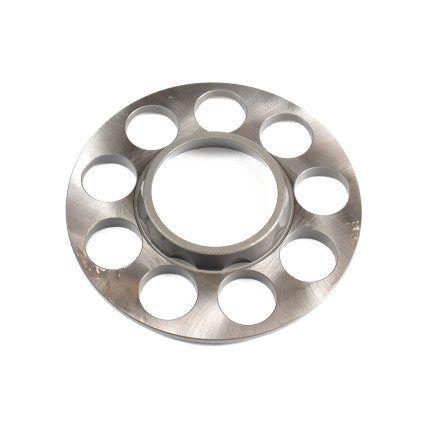

Model: 15354
Retainer Plate 0011033140 Sauer-Danfoss — presses the piston shoes against the swashplate surface of..
41.76 $
excl. VAT 34.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed

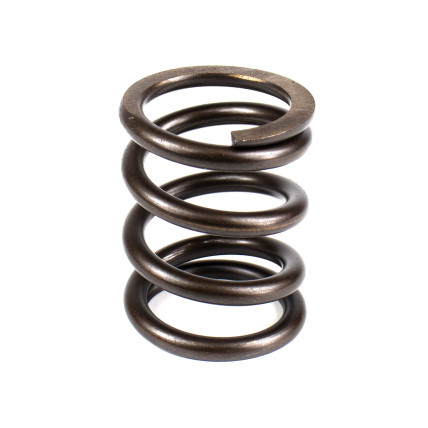

Model: 15351
Spring of Rotor Sauer-Danfoss H1P060 — generates an axial preload force on the cylinder block of the..
10.80 $
excl. VAT 9.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed

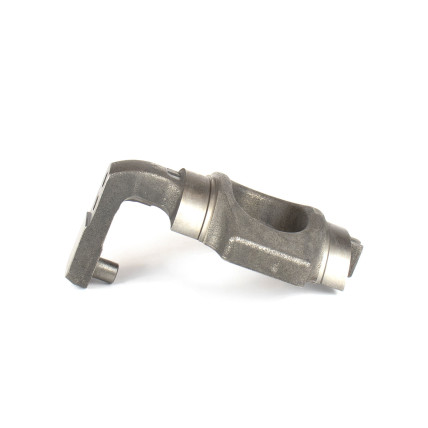

Model: 16038
Swash plate (Cam rocker) 11121000 Sauer-Danfoss — is an inclined disc in axial piston pumps/hydrauli..
197.52 $
excl. VAT 164.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed

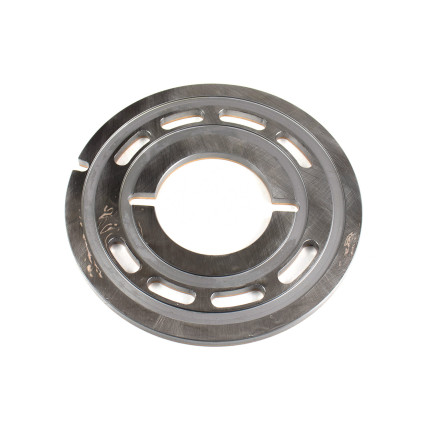

Model: 15357
Valve plate Left 0011082840 Sauer-Danfoss — a hydraulic pump element that distributes the service fl..
96.24 $
excl. VAT 80.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed

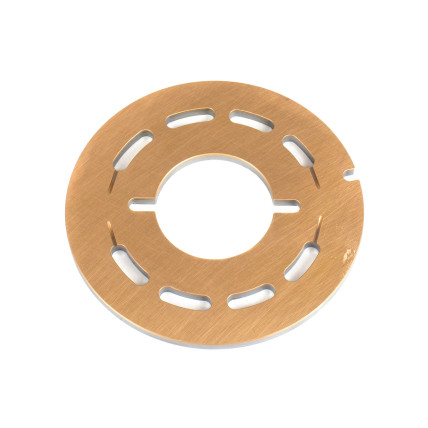

Model: 15996
Valve plate Left 0011082840 Sauer-Danfoss — a hydraulic pump element that distributes the service fl..
96.24 $
excl. VAT 80.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed

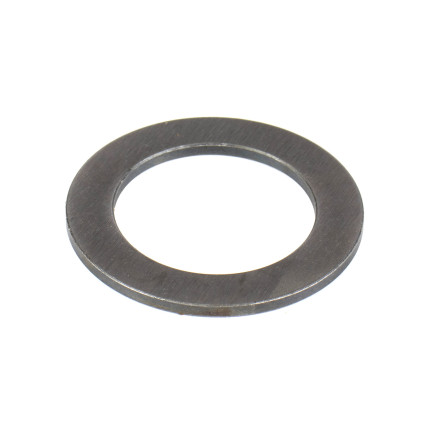

Model: 15349
Washer Sauer-Danfoss H1P060 — distributes load and ensures connection seal integrity. We'll help you..
7.56 $
excl. VAT 6.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15350
Washer Sauer-Danfoss PV90M75 — distributes load and ensures connection seal integrity. Used in John ..
2.40 $
excl. VAT 2.00 $
Hydraulics:
Pump & Motor Parts
Sauer-Danfoss H1P060 — axial piston hydraulic pump 60 cm³
Sauer-Danfoss H1P060 is an axial piston hydraulic pump with variable displacement and a swashplate, closed-circuit design. The pump is designed for hydrostatic transmissions of compact and medium mobile machinery — mini excavators, skid steer loaders, bulldozers, pipelayers and drilling machines. The design includes an integrated Gerotor charge pump with pressure-balanced valve plates. The electrohydraulic servo system controls the swashplate inclination angle — flow reversal is achieved by tilting the plate to the opposite position without additional valves. EDC, FNR, MDC, AC, FDC control systems are supported. The H1P060 is the first frame size in the series where the maximum speed increases to 4,000 rpm (compared to 3,500 in the H1P045/053).
Full model range in the section Sauer-Danfoss H1P series.
Technical specifications H1P060
- Displacement: 60.4 cm³/rev
- Rated pressure (delta): 380 bar
- Max. pressure (delta): 480 bar
- Rated speed: 3,500 rpm
- Max. speed: 4,000 rpm
Installed in equipment
-
Equipment types
- Crawler excavator — Hydrostatic travel transmission
- Dozer — Hydrostatic travel transmission
- Pipelayer — Hydrostatic travel transmission
- Skid steer loader — Travel drive + working functions
- Drilling rig — Drill tool drive
OEM numbers H1P060
-
Sauer-Danfoss
- 83012450
- 83013567
- 83013568
- 83014102
- 83014234
- 83015022
- 83016013
- 83016014
- 83016151
- 83016376
- 83016956
- 83017132
- 83017152
- 83017307
- 83017412
- 83017523
- 83017963
- 83018004
- 83018716
- 83018760
- 83018761
- H1-P-060-X-X-X-XX
Spare parts for Sauer-Danfoss H1P060
- Cylinder block Rotor
- Drive Shaft
- Separation Bush
- Ball guide
- Disk Spring
- Snap Ring
- Slider
- Coupling of drive shaft
- Cylinder block press pin
- Charge Pump
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston shoe
- Rotor Spring
- Seal kit pump
- Shaft Seal
- Wire
- Valve plate
- Ball guide washer
- Pressure Override Valve
- Control Valve Regulator
- Regulator assembly
- Servo Piston
Repair and service H1P060
We accept pump Sauer-Danfoss H1P060 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair H1P060 and provide spare parts with quality warranty.
