Model: 15369
Ball guide 11148926 Sauer-Danfoss — holds spherical elements in a defined position relative to the r..
30.00 $
excl. VAT 25.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15364
Ball guide Washer Sauer-Danfoss H1P089 — compensates for angular misalignment between the pressure p..
7.56 $
excl. VAT 6.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18043
Cradle Bearing Cage 11039955 Sauer-Danfoss — holds the rollers in a defined position and ensures the..
141.84 $
excl. VAT 118.20 $
Hydraulics:
Bearings
Most Viewed
Model: 15363

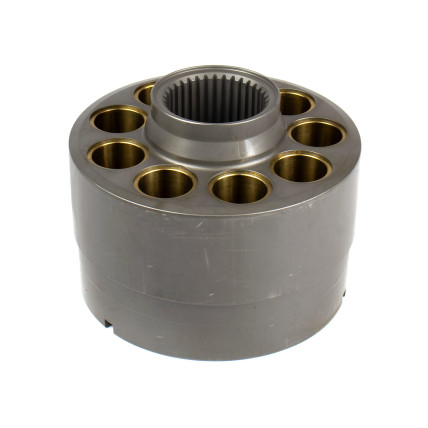

Cylinder block Rotor 11124486 Sauer-Danfoss — converts the working fluid flow into mechanical motion..
228.48 $
excl. VAT 190.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15366

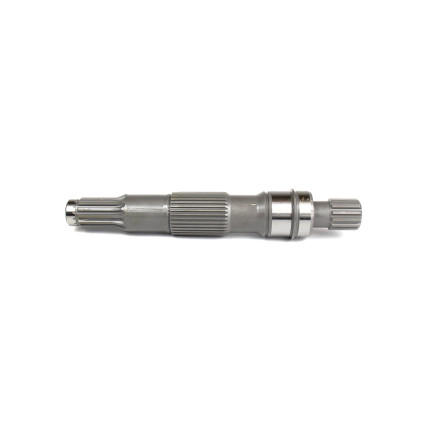

Drive Shaft motor 11112178 Sauer-Danfoss — transmits torque to the rotor assembly and drives the pis..
184.68 $
excl. VAT 153.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15367

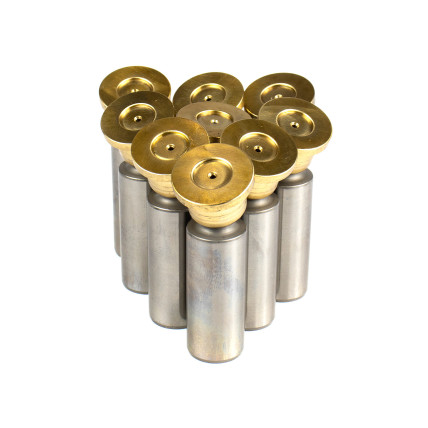

Piston shoe 11039954 Sauer-Danfoss — performs reciprocating motion within the cylinder of the block,..
24.72 $
excl. VAT 20.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15368

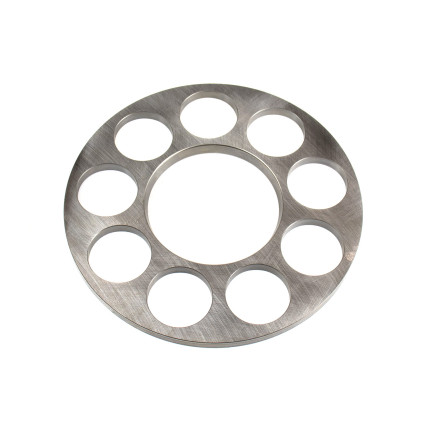

Retainer Plate 11008582 Sauer-Danfoss — presses the piston shoes against the swashplate surface of t..
41.76 $
excl. VAT 34.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15365

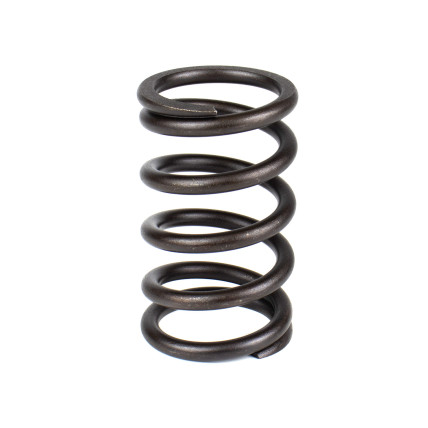

Spring of Rotor Sauer-Danfoss H1P089 — generates an axial preload force on the cylinder block of the..
10.92 $
excl. VAT 9.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18042
Swash plate (Cam rocker) 11250901 Sauer-Danfoss — is an inclined disc in axial piston pumps/hydrauli..
250.08 $
excl. VAT 208.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 15370

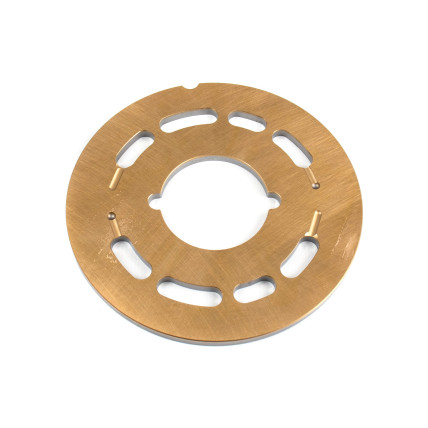

Valve plate Right 11125566 Sauer-Danfoss — a hydraulic pump element that distributes the service flu..
91.92 $
excl. VAT 76.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18481
Pre-Order
Spring of Rotor 11175203 Sauer-Danfoss — generates an axial preload force on the cylinder block of t..
165.00 $
excl. VAT 137.50 $
Hydraulics:
Pump & Motor Parts
Sauer-Danfoss H1P089 — axial piston hydraulic pump 89 cm³
Sauer-Danfoss H1P089 is a closed-circuit axial piston hydraulic pump with variable displacement and a cradle swashplate design. Designed for hydrostatic transmissions of medium mobile machinery — crawler excavators, bulldozers, pipelayers and loaders. With the transition to the 089 frame size, the rated speed decreases to 3,300 rpm, reflecting an orientation towards more powerful and heavier machines with higher torque. The integrated Gerotor charge pump with pressure-balanced valve plates minimises volumetric losses and ensures stable charge pressure in the closed circuit. Flow direction and magnitude are controlled by the swashplate angle via the electrohydraulic servo system — reversal is achieved without switching valves. Available control options: EDC, FNR, MDC, AC, FDC.
Full model range in the section Sauer-Danfoss H1P series.
Technical specifications H1P089
- Displacement: 89.2 cm³/rev
- Rated pressure (delta): 380 bar
- Max. pressure (delta): 480 bar
- Rated speed: 3,300 rpm
- Max. speed: 3,800 rpm
Installed in equipment
-
Equipment types
- Crawler excavator — Hydrostatic travel transmission
- Dozer — Hydrostatic travel transmission
- Pipelayer — Hydrostatic travel transmission
- Skid steer loader — Travel drive + working functions
- Drilling rig — Drill tool drive
OEM numbers H1P089
-
Sauer-Danfoss
- 83009456
- 83011165
- 83011892
- 83011942
- 83012205
- 83013230
- 83013318
- 83013529
- 83013552
- 83014125
- 83014358
- 83015599
- 83016150
- 83016222
- 83016457
- 83016973
- 83017554
- 83017843
- 83018337
- 83019278
- 83019279
- 83019723
- 83020309
- 83020483
- 83020755
- H1-P-089-X-X-X-XX
Spare parts for Sauer-Danfoss H1P089
- Cylinder block Rotor
- Drive Shaft
- Separation Bush
- Ball guide
- Disk Spring
- Snap Ring
- Slider
- Coupling of drive shaft
- Cylinder block press pin
- Charge Pump
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston shoe
- Rotor Spring
- Seal kit pump
- Shaft Seal
- Wire
- Valve plate
- Ball guide washer
- Pressure Override Valve
- Control Valve Regulator
- Regulator assembly
- Servo Piston
Repair and service H1P089
We accept pump Sauer-Danfoss H1P089 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair H1P089 and provide spare parts with quality warranty.
