Model: 18167

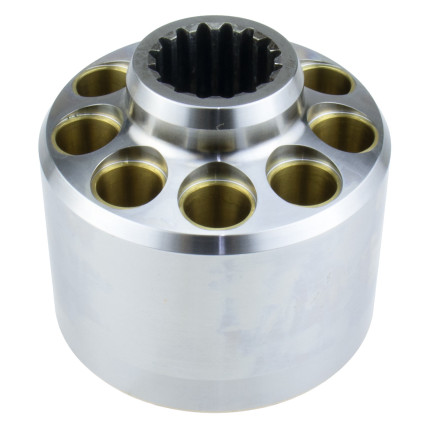

Cylinder block Rotor 2663200800 Linde — converts the working fluid flow into mechanical motion of th..
483.36 $
excl. VAT 402.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18166

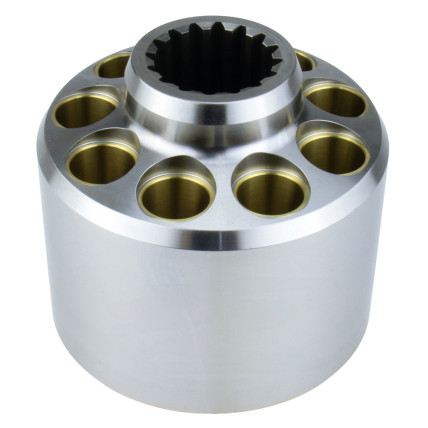

Cylinder block Rotor 2563200811 Linde — converts the working fluid flow into mechanical motion of th..
483.36 $
excl. VAT 402.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18715
Drive Shaft 2363230106 Linde — transmits torque to the rotor group and drives the piston group of th..
292.80 $
excl. VAT 244.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18203
Drive Shaft 2363230107 Linde — transmits torque to the rotor group and drives the piston group of th..
292.80 $
excl. VAT 244.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18172
Fix Plate of Retainer Plate 2363431830 Linde — holds the piston retainer plate in a defined position..
199.08 $
excl. VAT 165.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9664
Oil Seal 0009280374 Linde — sealing element preventing oil leakage and contamination penetration at ..
26.76 $
excl. VAT 22.30 $
Hydraulics:
Oil Seals
Most Viewed
Model: 18173
Pipe 2363014003 Linde — connects components of hydraulic, fuel, or other liquid/air systems, providi..
29.40 $
excl. VAT 24.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18168

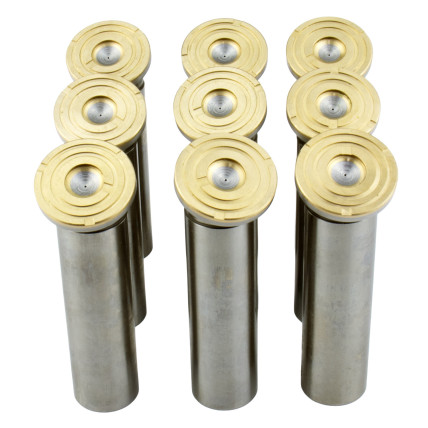

Piston shoe 2663200404 Linde — performs reciprocating motion within the cylinder of the block, drawi..
32.76 $
excl. VAT 27.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18169

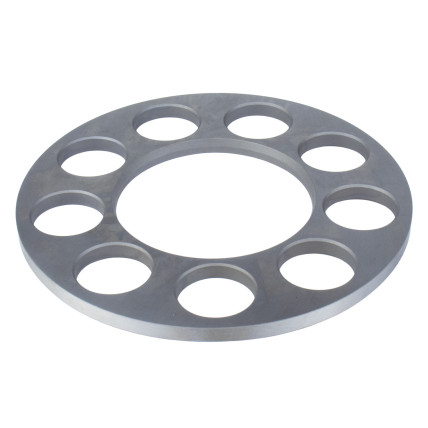

Retainer Plate 2363231404 Linde — presses the piston shoes against the swashplate surface of the hyd..
54.96 $
excl. VAT 45.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18596
Servo Piston 2363450412 Linde — a control element that, under hydraulic pressure, moves regulating c..
99.00 $
excl. VAT 82.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18595
Servo Piston 2363450414 Linde — a control element that, under hydraulic pressure, moves regulating c..
91.08 $
excl. VAT 75.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 17471
Sliding Bearing 0009234049 Linde — provides support and guidance for the shaft or moving elements, r..
43.44 $
excl. VAT 36.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 17625
Socket Pin Linde HPV105-02 — secures adjacent parts against axial displacement, rotation, or mutual ..
5.88 $
excl. VAT 4.90 $
Hydraulics:
Pump & Motor Parts
Novelty
Model: 18840
Swing Pin 0009080261 Linde — a support or guide element of a hydraulic motor/pump mechanism that ena..
4.44 $
excl. VAT 3.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18175

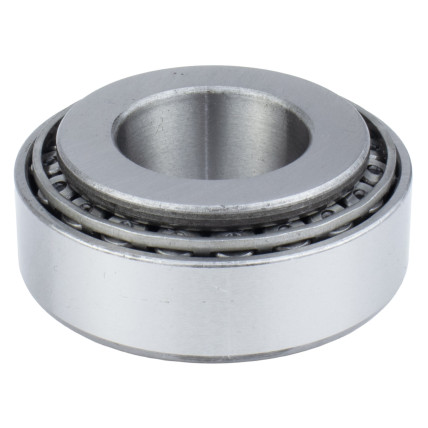

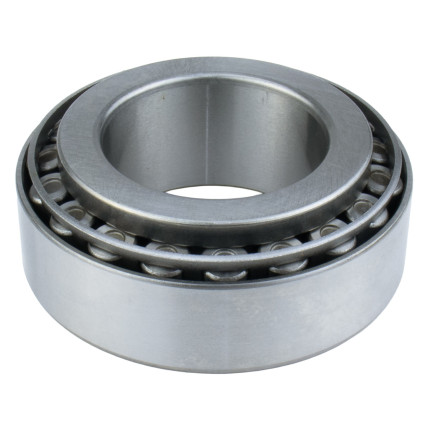

Tapered Roller Bearing 0009247398 Linde — a rolling element designed to receive both radial and axia..
114.72 $
excl. VAT 95.60 $
Hydraulics:
Bearings
Linde HMV165-02 — axial piston motor 165 cm³
Linde HMV165-02 is a variable displacement axial piston hydraulic motor with swash plate design. It develops torque exceeding 1100 Nm at nominal pressure, defining its niche — wheeled and tracked drives of heavy machinery where motor load cyclically alternates between traction and travel modes. Displacement regulation to zero enables a wide speed range in a closed hydrostatic circuit without a transfer gearbox. Open and closed circuit. SAE flange; PTO Through-Drive optional. Used in Holmer, JCB, O&K, Atlas, Caterpillar and Liebherr machinery, as well as in construction, agricultural and forestry equipment.
Full model range in the section Linde HMV-02 series
Technical specifications HMV165-02
- Displacement: 165.6 cm³
- Nominal pressure: 450 bar
- Maximum pressure: 500 bar
- Maximum speed (Vmax): 3100 rpm
- Maximum speed (Vmin): 3500 rpm
- Torque (at 430 bar): 1133 Nm
- Weight: ~76 kg
Installed in equipment
-
Holmer
- Terra Dos — Sugar beet harvester
-
JCB
- 525-60 — Telescopic handler
-
Compatible brands
- O&K
- Atlas
- Caterpillar
- Liebherr
-
Equipment types
- Wheeled excavator
- Loader
- Telescopic handler
- Roller / Compactor
- Winches and drum drives
- Feller-buncher
- Feed mixer
- Harvester
- Transit mixer
- Construction equipment
- Agricultural machinery
- Forestry equipment
OEM numbers HMV165-02
-
JCB
- 334/F2797
Spare part numbers HMV165-02
-
Linde
- 2563200811
- 2663200800
- 2363200802
- 0009216605
- 0009144339
- 0009144010
- 9289003717
- 9289003713
- 9289003712
- 9289003711
- 9456622588
- 2363231404
- 2663200404
- 2663200402
- 2563200408
- 2563200407
- 2363200412
- 2363200403
- 2363240208
- 2363230106
- 2363230113
- 2363230107
- 2363230502
- 2363232017
- 2363232009
- 2363232007
- 0009234049
- 0009080261
- 2363014003
- 2363450411
- 2363450410
- 2363431830
- 2363431822
- 2363431814
- 2363431807
- 2363431829
- 2363431824
- 2363431821
- 2363431817
- 9509000856
- 0009247398
- 0009280374
- 0009280378
Spare parts for Linde HMV165-02
- Cylinder block Rotor
- Ball guide
- Disk Spring
- Coupling of drive shaft
- Cylinder block press pin
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston
- Rotor Spring
- Shaft Seal
- Valve plate
- Ball guide washer
- Washer
- Pressure Override Valve
- Seal kit motor
- Control Valve Regulator
- Servo Piston
- Drive Shaft motor
- Friction Plate
Repair and service HMV165-02
We accept motor Linde HMV165-02 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair HMV165-02 and provide spare parts with quality warranty.
Spare Parts Diagram Linde HMV165-02
Spare Parts Diagram
Technical specifications verified by the Aspect Plus technical catalog.
