Model: 8216
Cylinder block Rotor 2933200807 Linde — converts the working fluid flow into mechanical motion of th..
330.12 $
excl. VAT 275.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9899
Drive Shaft 2933230108 Linde — transmits torque to the rotor group and drives the piston group of th..
121.20 $
excl. VAT 101.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 18038

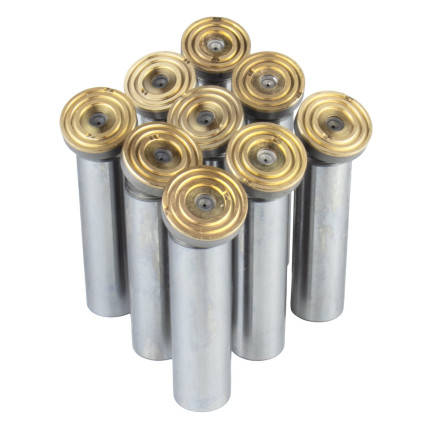

Piston 2333200404 Linde — performs reciprocating motion within the cylinder of the block, drawing in..
25.80 $
excl. VAT 21.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9898
Retainer Plate 2933231403 Linde — presses the piston shoes against the swashplate surface of the hyd..
72.72 $
excl. VAT 60.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 8130
Roller Bearing XJCK-00014 Kayaba — absorbs radial and axial shaft loads through cylindrical or taper..
22.80 $
excl. VAT 19.00 $
Hydraulics:
Bearings
Most Viewed
Model: 9676
Separation Bush 2933230501 Linde — serves as a support for moving or stationary parts of the hydraul..
15.72 $
excl. VAT 13.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 16965
Sliding Bearing 0009234031 Linde — provides support and guidance for the shaft or moving elements, r..
24.36 $
excl. VAT 20.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 17625
Socket Pin Linde HPV105-02 — secures adjacent parts against axial displacement, rotation, or mutual ..
5.88 $
excl. VAT 4.90 $
Hydraulics:
Pump & Motor Parts
Novelty
Model: 18840
Swing Pin 0009080261 Linde — a support or guide element of a hydraulic motor/pump mechanism that ena..
4.44 $
excl. VAT 3.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10847
Valve plate Motor 2933240206 Linde — a hydraulic motor element that ensures the distribution of work..
83.28 $
excl. VAT 69.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9640
Washer 0009143218 Linde — distributes load and ensures connection seal integrity. Inquiry for Linde ..
3.60 $
excl. VAT 3.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9641
Washer Linde HPR55-02 — distributes load and ensures connection seal integrity. Diagnostics and repa..
3.60 $
excl. VAT 3.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 17874
Pre-Order
Cylinder block Rotor 2933200804 Linde — converts the working fluid flow into mechanical motion of th..
309.24 $
excl. VAT 257.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9672
Pre-Order
Fix Plate of Retainer Plate 22533431802 Linde — holds the piston retainer plate in a defined positio..
66.12 $
excl. VAT 55.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9688
Pre-Order
Fix Plate of Retainer Plate 2633431808 Linde — holds the piston retainer plate in a defined position..
77.64 $
excl. VAT 64.70 $
Hydraulics:
Pump & Motor Parts
Linde HMV75-02 — axial piston motor 75 cm³
Linde HMV75-02 is a variable displacement axial piston hydraulic motor with swash plate design. Displacement regulation to zero provides a wide transmission ratio range for hydrostatic drives without mechanical steps. Open and closed circuit. SAE mounting flange; PTO Through-Drive option. Flushing valve optional. Used in Claas, O&K, Atlas, Caterpillar and Liebherr machinery, as well as in construction, agricultural and forestry equipment.
Full model range in the section Linde HMV-02 series
Technical specifications HMV75-02
- Displacement: 75.9 cm³
- Nominal pressure: 450 bar
- Maximum pressure: 500 bar
- Maximum speed (Vmax): 3800 rpm
- Maximum speed (Vmin): 4400 rpm
- Torque (at 430 bar): 519 Nm
- Weight: ~32 kg
Installed in equipment
-
Claas
- Jaguar 970 — Harvester
-
Compatible brands
- O&K
- Atlas
- Caterpillar
- Liebherr
-
Equipment types
- Wheeled excavator
- Loader
- Telescopic handler
- Roller / Compactor
- Winches and drum drives
- Feller-buncher
- Feed mixer
- Harvester
- Transit mixer
- Construction equipment
- Agricultural machinery
- Forestry equipment
Spare part numbers HMV75-02
-
Linde
- 2933200804
- 2933200807
- 0009215627
- 0009143506
- 0009143500
- 0009143218
- 9456622505
- 2333200402
- 2333200404
- 2933231403
- 2933240206
- 2533232033
- 2533232021
- 2533232013
- 2533232031
- 2533232008
- 0009234031
- 0009080261
- 2333230100
- 2933230501
- 22533431802
- 2633431809
- 2333431801
- 2333431803
- 2633431808
- 2533014003
- 2333450401
- 2333450402
- 0009623829
- 9509000731
- 9509000675
- 0009280367
Spare parts for Linde HMV75-02
- Cylinder block Rotor
- Ball guide
- Disk Spring
- Coupling of drive shaft
- Cylinder block press pin
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston
- Rotor Spring
- Shaft Seal
- Valve plate
- Ball guide washer
- Washer
- Pressure Override Valve
- Seal kit motor
- Control Valve Regulator
- Servo Piston
- Drive Shaft motor
- Friction Plate
Repair and service HMV75-02
We accept motor Linde HMV75-02 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair HMV75-02 and provide spare parts with quality warranty.
Spare Parts Diagram Linde HMV75-02
Spare Parts Diagram
Technical specifications verified by the Aspect Plus technical catalog.
