Model: 12218
Swash plate (Cam rocker) Sauer-Danfoss M22 — is an inclined disc in axial piston pumps/hydraulic mot..
97.80 $
excl. VAT 81.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10953
Swash plate (Cam rocker) Sauer-danfoss PV22 — is an inclined disc in axial piston pumps/hydraulic mo..
159.84 $
excl. VAT 133.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 12212
Valve plate Left 003889 Sauer-Danfoss — a hydraulic pump element that distributes the service fluid ..
78.12 $
excl. VAT 65.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10463
Valve plate Left Sauer-danfoss PVD22 — a hydraulic pump element that distributes the service fluid f..
47.04 $
excl. VAT 39.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10461
Valve plate Left Sauer-danfoss PVD22 — a hydraulic pump element that distributes the service fluid f..
47.04 $
excl. VAT 39.20 $
Hydraulics:
Pump & Motor Parts
Novelty
Model: 18880

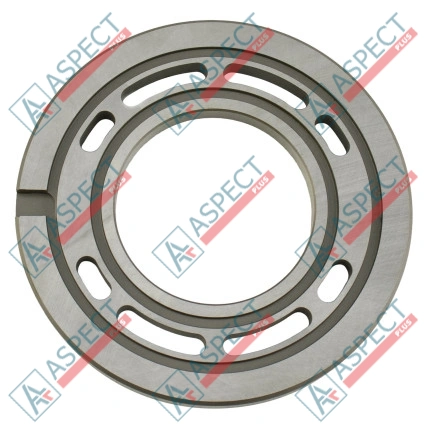

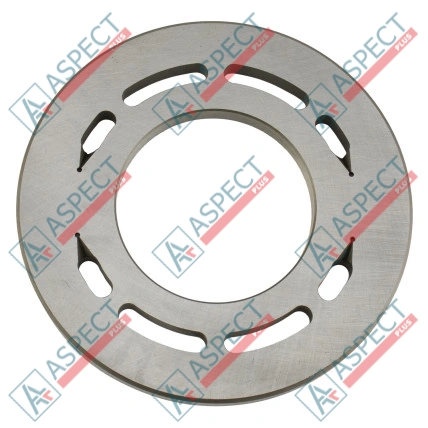

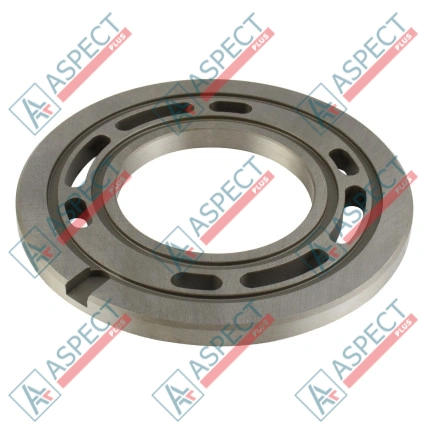

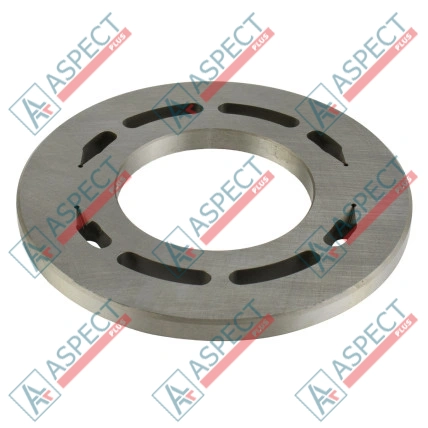

Valve plate Motor Sauer-Danfoss MF22 — a hydraulic motor element that ensures the distribution of wo..
45.60 $
excl. VAT 38.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12213
Valve plate Right 003897 Sauer-Danfoss — a hydraulic pump element that distributes the service fluid..
78.12 $
excl. VAT 65.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10458
Valve plate Right Sauer-danfoss PV22 — a hydraulic pump element that distributes the service fluid f..
59.52 $
excl. VAT 49.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10464
Valve plate Right Sauer-danfoss PVD22 — a hydraulic pump element that distributes the service fluid ..
47.04 $
excl. VAT 39.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10462
Valve plate Right Sauer-danfoss PVD22 — a hydraulic pump element that distributes the service fluid ..
47.04 $
excl. VAT 39.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10949
Washer Sauer-danfoss PV22 — distributes load and ensures connection seal integrity. Inquiry for Saue..
4.68 $
excl. VAT 3.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10948
Washer Sauer-danfoss PV22 — distributes load and ensures connection seal integrity. Diagnostics and ..
4.56 $
excl. VAT 3.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10448
Pre-Order
Ball guide 9220500 Sauer-danfoss — holds spherical elements in a defined position relative to the ro..
60.60 $
excl. VAT 50.50 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10449
Pre-Order
Bearing Plate 585893 Sauer-danfoss — forms a sliding support surface for the cylinder block, absorbi..
61.44 $
excl. VAT 51.20 $
Hydraulics:
Gear Pumps / Charge Pumps
Most Viewed
Model: 14376
Pre-Order
Bearing Plate 585893 Sauer-Danfoss — forms a sliding support surface for the cylinder block, absorbi..
85.56 $
excl. VAT 71.30 $
Hydraulics:
Gear Pumps / Charge Pumps
Sauer-Danfoss PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22 — hydraulic pump / motor
Sauer-Danfoss Series 20 pumps in frame sizes PV22, SPV22, PVD22 and SPV2/070 are axial piston units with a swashplate design and variable displacement, designed for closed-circuit hydrostatic transmissions. Displacement is steplessly adjusted in both directions from the swashplate neutral position, providing smooth flow reversal and flexible actuator speed control. The tandem version PVD22 combines two pump sections on a common shaft to supply two independent hydraulic circuits from a single drive. The SMF2/070, M22 and MF22 motors are fixed displacement swashplate units forming a unified closed hydrostatic system with Series 20 pumps. Compared to smaller frame sizes in the series, the frame 070 units are rated for higher nominal speed and greater torque.
Full model range in the section Sauer-Danfoss Series 20.
Technical specifications PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22
- PV22 — Variable displacement pump
- SPV22 — Variable displacement pump
- PVD22 — Variable displacement tandem pump
- SPV2/070 — Variable displacement pump
- SMF2/070 — Fixed displacement motor
- M22 — Fixed displacement motor
- MF22 — Fixed displacement motor
Technical specifications SPV2/070 SMF2/070
- Displacement: 69.8 cm³
- Max. working pressure: 420 bar
- Max. pressure with POR valve: 460 bar
- Rated speed (frame 070): 3,200 rpm
- Minimum speed: 500 rpm
Installed in equipment
-
Equipment types
- Industrial equipment
- Mining equipment
- Transit mixer
- Municipal equipment
Spare parts for Sauer-Danfoss PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22
- Cylinder block Rotor
- Drive Shaft
- Drive Shaft motor
- Separation Bush
- Ball guide
- Disk Spring
- Friction Plate
- Snap Ring
- Slider
- Coupling of drive shaft
- Charge Pump
- Cylinder block press pin
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston shoe
- Piston
- Rotor Spring
- Seal kit pump
- Seal kit motor
- Shaft Seal
- Wire
- Valve plate
- Ball guide washer
- Washer
- Pressure Override Valve
- Control Valve Regulator
- Regulator assembly
- Servo Piston
Repair and service PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22
We accept pump / motor Sauer-Danfoss PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair PV22 SPV22 PVD22 SPV2/070 SMF2/070 M22 MF22 and provide spare parts with quality warranty.
Technical specifications verified by the Aspect Plus technical catalog.
