Model: 13234
Charge Pump 0000501405 Sauer-Danfoss — boost pump for creating supply pressure in main hydraulic sys..
388.68 $
excl. VAT 323.90 $
Hydraulics:
Gear Pumps / Charge Pumps
Most Viewed
Model: 9724
Cradle Bearing Cage 11000866 Sauer-danfoss — holds the rollers in a defined position and ensures the..
37.32 $
excl. VAT 31.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9723
Cradle Bearing Cage Sauer-danfoss PV90R130 — holds the rollers in a defined position and ensures the..
17.28 $
excl. VAT 14.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9721
Cradle Bearing Seat 11000866 Sauer-danfoss — forms the raceway for the cradle bearing rollers, absor..
68.16 $
excl. VAT 56.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9722
Cradle Bearing Seat 11000866 Sauer-danfoss — forms the raceway for the cradle bearing rollers, absor..
61.08 $
excl. VAT 50.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9759
Cylinder block Rotor 11033869 Sauer-danfoss — converts the working fluid flow into mechanical motion..
388.56 $
excl. VAT 323.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10987
Drive Shaft 310458 Sauer-danfoss — transmits torque to the rotor group and drives the piston group o..
155.04 $
excl. VAT 129.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9717
Fix Plate of Retainer Plate 700963 Sauer-danfoss — holds the piston retainer plate in a defined posi..
20.40 $
excl. VAT 17.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9483
Oil Seal 519021 Sauer-danfoss — sealing element preventing oil leakage and contamination penetration..
51.60 $
excl. VAT 43.00 $
Hydraulics:
Oil Seals
Most Viewed
Model: 9889
Piston shoe 727750 Sauer-danfoss — performs reciprocating motion within the cylinder of the block, d..
32.04 $
excl. VAT 26.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9715
Retainer Plate 11067352 Sauer-danfoss — presses the piston shoes against the swashplate surface of t..
49.32 $
excl. VAT 41.10 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 10989
Seal kit pump Sauer-danfoss PV90L130 — a set of seals designed to restore the sealing and functional..
324.24 $
excl. VAT 270.20 $
Hydraulics:
Pump & Motor Seal Kits
Most Viewed
Model: 9760
Seal kit pump Sauer-danfoss PV90R130 — a set of seals designed to restore the sealing and functional..
145.56 $
excl. VAT 121.30 $
Hydraulics:
Pump & Motor Seal Kits
Most Viewed
Model: 9714

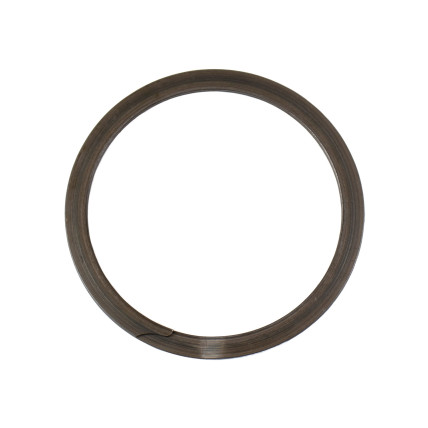

Snap Ring Sauer-danfoss PV90R130 — retaining ring to prevent axial displacement of components. Used ..
2.76 $
excl. VAT 2.30 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9713
Spring of Rotor Sauer-danfoss PV90R130 — generates an axial preload force on the cylinder block of t..
7.68 $
excl. VAT 6.40 $
Hydraulics:
Pump & Motor Parts
Sauer-Danfoss PV90R130 PV90L130 — axial piston hydraulic pump 130 cm³
The Sauer-Danfoss PV90R130 / PV90L130 is a closed-circuit axial piston unit of the Series 90 with a swash plate. The design features nine pistons with slipper pads sliding on the swash plate, providing smooth flow regulation from zero to maximum in both directions. PV90R130 and PV90L130 are mirror-image versions — with right-hand and left-hand shaft rotation respectively. They are used as the hydrostatic transmission pump in forwarders by Ponsse, Timberjack, John Deere and Valmet, as well as in Allianz / Johnston road sweepers and transit mixer drum drives. In Claas Lexion series combine harvesters, New Holland CR and Case IH Axial-Flow, they provide the hydrostatic drive for the undercarriage.
Full model range in the section Sauer-Danfoss Series 90.
Technical specifications PV90R130 PV90L130
- Displacement: 130 cm³
- Maximum working pressure: 450 bar
- Peak pressure: 480 bar
- Nominal speed: 2600 rpm
- Maximum speed: 2850 rpm
- Minimum speed: 500 rpm
- PV90R — clockwise rotation; PV90L — counter-clockwise
Installed in equipment
-
Claas
- Lexion 560 — Harvester
- Lexion 570 — Harvester
- Lexion 580 — Harvester
- Lexion 600 — Harvester
- Lexion 620 — Harvester
- Lexion 650 — Harvester
-
New Holland
- CR9060 — Harvester
- CR9070 — Harvester
-
Case IH
- Axial-Flow 9010 — Harvester
- Axial-Flow 9120 — Harvester
-
Valmet
- 840 — Forwarder
- 860 — Forwarder
- 890 — Forwarder
-
Timberjack
- 1410 — Forwarder
- 1710 — Forwarder
-
John Deere
- 1210E — Forwarder
- 1510E — Forwarder
-
Ponsse
- Buffalo S16 — Forwarder
- Elephant S — Forwarder
- 8W — Forwarder
- Pushmaster — Forwarder
-
Allianz / Johnston
- Street sweeper
-
Equipment types
- Transit mixer
OEM numbers PV90R130 PV90L130
-
Sauer-Danfoss
- 518458
- 702640
- 515709
- 505265 — 90L130
- 506528 — 90L130
- 515549 — 90L130
- 9721052 — 90L130
- 9721230 — 90L130
- 9721269 — 90L130
- 9721270 — 90L130
- 516771 — 90R130
- 9721504 — 90R130
- 9721633 — 90R130
-
Claas
- 518458
-
Valmet
- 518458
-
Allianz / Johnston
- 325606
Spare part numbers PV90R130 PV90L130
-
Sauer-Danfoss
- 346601
- 511619
- 508592
- 11010697
Spare parts for Sauer-Danfoss PV90R130 PV90L130
- Cylinder block Rotor
- Drive Shaft
- Separation Bush
- Ball guide
- Disk Spring
- Snap Ring
- Slider
- Coupling of drive shaft
- Cylinder block press pin
- Charge Pump
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston shoe
- Rotor Spring
- Seal kit pump
- Shaft Seal
- Wire
- Valve plate
- Ball guide washer
- Pressure Override Valve
- Control Valve Regulator
- Regulator assembly
- Servo Piston
Repair and service PV90R130 PV90L130
Diagnostics and repair of axial piston hydraulic pump Sauer-Danfoss PV90R130 PV90L130: monitoring operating pressure and leaks, inspection of the piston group and valve plate, and bench testing after repair.
Contact us — we will repair hydraulic pump PV90R130 PV90L130 and select genuine spare parts.
Technical specifications verified by the Aspect Plus technical catalog.
