Model: 13228
Charge Pump 8100479 Sauer-Danfoss — boost pump for creating supply pressure in main hydraulic system..
263.28 $
excl. VAT 219.40 $
Hydraulics:
Gear Pumps / Charge Pumps
Most Viewed
Model: 13229
Charge Pump 8100481 Sauer-Danfoss — boost pump for creating supply pressure in main hydraulic system..
263.28 $
excl. VAT 219.40 $
Hydraulics:
Gear Pumps / Charge Pumps
Most Viewed
Model: 9742
Cradle Bearing Cage 11131108 Sauer-danfoss — holds the rollers in a defined position and ensures the..
31.08 $
excl. VAT 25.90 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9807
Cradle Bearing Seat 518671 Sauer-danfoss — forms the raceway for the cradle bearing rollers, absorbi..
72.72 $
excl. VAT 60.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9743
Cradle Bearing Seat Sauer-danfoss PV90M75 — forms the raceway for the cradle bearing rollers, absorb..
51.84 $
excl. VAT 43.20 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9792
Cylinder block Rotor 519253 Sauer-danfoss — converts the working fluid flow into mechanical motion o..
262.56 $
excl. VAT 218.80 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 11003
Drive Shaft Sauer-danfoss PV90R75 — transmits torque to the rotor group and drives the piston group ..
87.12 $
excl. VAT 72.60 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 11001
Drive Shaft Sauer-danfoss PV90R75 — transmits torque to the rotor group and drives the piston group ..
113.28 $
excl. VAT 94.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9803
Fix Plate of Retainer Plate 334391 Sauer-danfoss — holds the piston retainer plate in a defined posi..
18.00 $
excl. VAT 15.00 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9812
Oil Seal 519666 Sauer-danfoss — sealing element preventing oil leakage and contamination penetration..
46.92 $
excl. VAT 39.10 $
Hydraulics:
Oil Seals
Most Viewed
Model: 9798
Piston shoe 708230 Sauer-danfoss — performs reciprocating motion within the cylinder of the block, d..
21.24 $
excl. VAT 17.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9797
Piston shoe Sauer-danfoss PV90R75 — performs reciprocating motion within the cylinder of the block, ..
19.68 $
excl. VAT 16.40 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 9800
Retainer Plate 11067350 Sauer-danfoss — presses the piston shoes against the swashplate surface of t..
41.64 $
excl. VAT 34.70 $
Hydraulics:
Pump & Motor Parts
Most Viewed
Model: 12794
Roller Bearing XJBN-00950 Kawasaki — absorbs radial and axial shaft loads through cylindrical or tap..
57.12 $
excl. VAT 47.60 $
Hydraulics:
Bearings
Most Viewed
Model: 9799

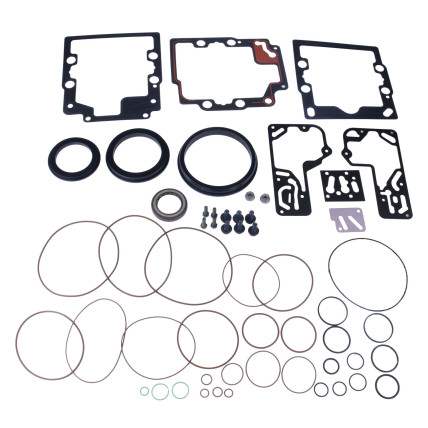

Seal kit pump 11095648 Sauer-danfoss — a set of seals designed to restore the sealing and functional..
98.76 $
excl. VAT 82.30 $
Hydraulics:
Pump & Motor Seal Kits
Sauer-Danfoss PV90R75 PV90L75 — axial piston hydraulic pump 75 cm³
The Sauer-Danfoss PV90R75 / PV90L75 is a closed-circuit axial piston pump of the Series 90 with a swash plate. The design features nine pistons with slipper pads sliding on the swash plate, providing smooth flow regulation from zero to maximum in both directions. PV90R75 and PV90L75 are mirror-image versions — with right-hand and left-hand shaft rotation respectively. They are used as the drive pump in soil compactors by Dynapac and Bomag, soil and tandem compactors by Hamm, wheel loaders by Volvo CE, forwarders by Timberjack and John Deere, as well as in Bobcat telescopic handlers and special equipment based on the MAN TGS chassis.
Full model range in the section Sauer-Danfoss Series 90.
Technical specifications PV90R75 PV90L75
- Displacement: 75 cm³
- Maximum working pressure: 450 bar
- Peak pressure: 480 bar
- Nominal speed: 3600 rpm
- Maximum speed: 3950 rpm
- Minimum speed: 500 rpm
- PV90R — clockwise rotation; PV90L — counter-clockwise
Installed in equipment
-
Dynapac
- CA250D — Roller / Compactor
- CA301D — Roller / Compactor
-
Bomag
- BW177 — Roller / Compactor
- BW202 — Roller / Compactor
- BW217 — Roller / Compactor
-
Hamm
- H11 — Roller / Compactor
- H13 — Roller / Compactor
- HD130 — Roller / Compactor
-
Volvo CE
- L50F — Loader
- L60F — Loader
-
John Deere
- 1110 series — Forwarder
- 1210 series — Forwarder
-
Timberjack
- 810 — Forwarder
- 1010 — Forwarder
-
Bobcat
- T357 — Telescopic handler
-
MAN
- TGS — Truck and Bus
OEM numbers PV90R75 PV90L75
-
Sauer-Danfoss
- 504103
- 83036882 — 90-R-075
- 83036885 — 90-R-075
- 83036927 — 90-R-075
- 83036971 — 90-R-075
- 83037148 — 90-R-075
- 83037799 — 90-R-075
- 83037896 — 90-R-075
- 83038465 — 90-R-075
- 83038598 — 90-R-075
- 83038714 — 90-R-075
- 83038869 — 90-R-075
- 83038936 — 90-R-075
- 83038976 — 90-R-075
- 9522605 — 90-R-075
- 11028745 — 90R075+MPV046C+SNP2
- 11063098 / 512436 / 90PV075
-
Bomag
- 05817050 / 83036428
Spare parts for Sauer-Danfoss PV90R75 PV90L75
- Cylinder block Rotor
- Drive Shaft
- Separation Bush
- Ball guide
- Disk Spring
- Snap Ring
- Slider
- Coupling of drive shaft
- Cylinder block press pin
- Charge Pump
- Roller Bearing
- Cradle Bearing Set
- Retainer Plate
- Swash plate (cam rocker)
- Piston shoe
- Rotor Spring
- Seal kit pump
- Shaft Seal
- Wire
- Valve plate
- Ball guide washer
- Pressure Override Valve
- Control Valve Regulator
- Regulator assembly
- Servo Piston
Repair and service PV90R75 PV90L75
We accept axial piston hydraulic pump Sauer-Danfoss PV90R75 PV90L75 for repair: full diagnostics of hydraulic parameters, assessment of wear of pistons and cylinder block, seal inspection and bench testing after restoration.
Contact us — we will repair hydraulic pump PV90R75 PV90L75 and select genuine spare parts.
Technical specifications verified by the Aspect Plus technical catalog.
