A6VM107 A6VE107

Especificaciones del motor Bosch Rexroth A6VM107 A6VE107

El Bosch Rexroth A6VM107 A6VE107 es un motor de pistones axiales de desplazamiento variable que tiene alta eficiencia y confiabilidad. Este motor es ideal para aplicaciones que requieren alta potencia y funcionamiento estable en condiciones difíciles.

Especificaciones técnicas de Bosch Rexroth A6VM107 A6VE107:

• Volumen de trabajo:
  • Nominal: 53,5 cm³
  • Máximo: 107 cm³
• Presión de trabajo:
  • Nominal: hasta 40 MPa 400 bar
  • Máximo: hasta 45 MPa 450 bar
• Velocidad máxima de rotación: 2800 rpm
• Par motor: hasta 700 N·m
• Peso: 35–40 kg
• Medio de funcionamiento: Aceites minerales (ISO VG 32–46) u otros fluidos compatibles con HLP/HVLP
• Ajuste de desplazamiento: hidráulico o electrohidráulico
• Aplicación en equipos especiales: excavadoras, grúas, cargadoras, prensas, apisonadoras, transportadores, máquinas herramienta, etc.

Números cruzados del motor hidráulica: R992001729, R992001731, R992001765, R902209938, R902206650, R909604659, R902221947, R902035353, R902206644, R902209956, R902063884, R902063883, R902206633, R902204660, R902223111, R909605842, R902067833, R902206604, R902212029, R902038558, R902121526, R902072540, R902207847, R902209935, R902224456, R902124270, R902209945, R902209907, R902209961, R902233906, R902117931, R902151712, R902261439, R902245636, R902009826, R902102697, R902124072, R902224098, R902094976, R902099067, R902054926, R902126848, R902206615, R902207969, R902102701, R902215356, R902209964, R902209913, R902207970, R902231415, R902139806, R902207765, R902209995, R902226299, R902206680, R902000391, R902065940, R902100131, R902035493, R902209998, R902243316, R902024957, R902212034, R902208894, R902206634, R902060251, R902033308, R902206620, R909429952, R902200471, R902101596, R902090274, R902094859, R902206629, R902153654, R902092751, R902063741, R902207972, R902241804, R902209920, R902101199, R902054183, R902134669, R902124213, R902115535, R902011737, R909604558, R902067523, R902206658, R902207854, R902088821, R902101080, R902207763, R902227963, R902212016, R902054360, R902227914, R902227913, R902206617, R902207971, R902209911, R902075445, R902126833, R902239855, R902021689, R902212022, R902207762, R902211628, R902018187, R902075353, R902060429, R902207878, R909610107, R909410429, R992001643, R909922089, R902070702, R909610271, R909650146, R909610421, R902258555, R909604909, R902258574, R902221491, R992001068, R992000013, R992000256, R992000193, R992000538, R992000398, R992000048, R992000071, R992000327, R992000014, R992000221, R992000596, R992000586, R992000386, R992000482, R992000464, R992000254, R992001043, R992000556, R992000250, R992000395, R992000055, R992000650, R909921384, R909604521, R992000382, R992000383, R902090266, R992000621, R902119872, R992000423, R992000355, R902166284, R902166273, R902166257, R902166210, R902166182, R902166008, R902095779, R902166430, R902002099, R902221166, R992001314, R902221109, R902221065, R902221026, R902166953, R992000354, R992000106, R992000243, R992000102, R992000101, R992000100, R992001029, R992001333, R992000107, R902088948, R992001036, R992000235, R902276493, 31Q4-41010, 31Q4-41300, 31N5-43000, 31N5-43001, 31N5-43002, XJDD-00233, XJDD-00230, XJDD-00240, XJDD-00241, XJDD-00232, XJDD-00918, XJDD-00919, XJDD-00234, XJDD-00235, XJDD-00236, XJDD-00237, XJDD-00238, XJDD-00239, XJDD-00231, R902027135, R909611140, R902035318, R902166714, R902078846, R902057395, R992000314, R902084454, R902207869, R902139577, R902102502, R902166866, R902070719, R902077189, R902138361, R992001319, R909610632, R902166235, R902047046, R902119778, R909611333, R902088730, R902119937, R902139655, R902099100, R902014137, R902121993, R902260282, R902101301, R902117914, R902096754, R902068516, R902057387, R902221393, R902031572, R902082065, R902084245, R902092839, R902092328, R992000419, R902033216, R902101927, R902040333, R902068745, R902092051, R902166652, R902024833, R902092156, R902009759, R902155020, R902096663, R902057398, R909604200, R902117896, R902126550, R902016681, R902060350, R992000010, R902092052, R909610611, R902092725, R902102883, R902073652, R902024734, R902080570, R902092327, R902138363, R902057396, R902207769, R902092207, R902221161, R902092854, R902139803, R902077157, R902080929, R902107858, R902063713, R902036515, R909441882, R909429529, R909605929, R902047069, R902092767, R902018062, R902092382, R902084467, R902138365, R902208572, R902033370, R902207807, R902084132, R902006671, R902092872, R902099381, R902038535, R902206606, R902212003, R902101873, R909604870, R902077493, R902031859, R902027270, R902119503, R909604372, R902107874, R902101334, R902092125, R902052339, R902086739, R909610612, R902088587, R902130706, R902102678, R992001563, R992001740, R902082139, R902077010, R902092603, R902124387, R909605880, R902139512, R902016519, R902166857, R909604375, R902080945, R992000223, R902014478, R902088689, R902134530, R902206612, R902027423, R909605875, R902009879, R902009730, R909611093, R902092057, R902092915, R902014159, R902107795, R902166968, R902009620, R909605744, R902057388, R902070930, R902096873, R902107857, R902009728, R902024829, R909604374, R902132140, R902031922, R902057392, R902075495, R902063868, R902092163, R902082381, R902134528, R902156040, R909605943, R902075242, R902101729, R902057393, R902092814, R902092897, R902054925, R902057390, R902207797, R902101335, R902092742, R902031809, R909605788, R909610613, R992001562, R902215113, R909611073, R902035449, R902070717, R902101306, R902078568, R902009646, R902134744, R902092745, R902024724, R902038799, R909605930, R902095999, R902057385, R902138258, R909605386, R902065534, R902096607, R902050612, R909610609, R902092158, R902221095, R909442441, R902166753, R902077008, R902070639, R909604373, R902068716, R902065587, R902119548, R992001712, R902077495, R902065575, R902221384, R902132308, R909921954, ZGAR-00421, XJDD-00914, ZGAR-00422, XJDD-00915, ZGAR-00433, XJDD-00928, ZGAR-00431, XJDD-00926, ZGAR-00423, XJDD-00916, ZGAR-00407, XJDD-00900, ZGAR-00424, XJDD-00917, ZGAR-00420, XJDD-00913, ZGAR-00419, XJDD-00912, XJDD-00212, XJDD-00894, XJDD-00683

Instalado en el modelo:

• Hyundai R140W-7, R140W-7A, R140W-9, R140W-9A, R140W-9S, R170W-7, R170W-7A, R170W-9S, R180W-9S
• O&K RH 12.5
• Liebherr L509
• Fiat-Hitachi EX165W

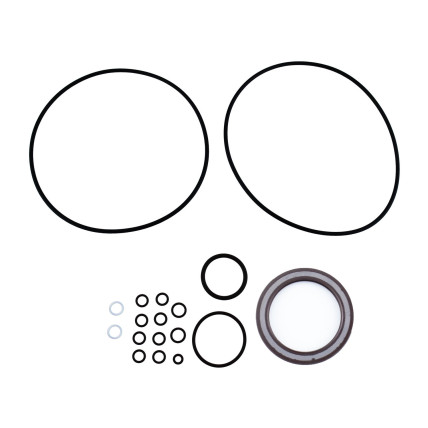

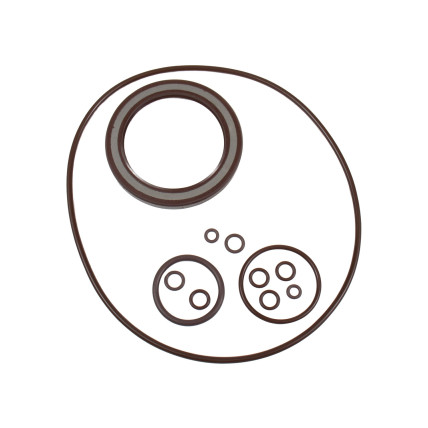

La empresa "Aspect Plus" ofrece una amplia gama de repuestos para la reparación del motor hidráulico Bosch Rexroth A6VM107 A6VE107.
