Model: 10898
Spare part: Ball guide Kawasaki 0365407 SKS Part number: 0365407 Cross-Number: K9004571, 26031 Use i..
40.32 $
excl. VAT 33.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3067
Spare part: Ball guide Washer Kawasaki 0365410 HANDOK Part number: 0365410 Cross-Number: K9004558 Us..
5.28 $
excl. VAT 4.40 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 10899
Spare part: Ball Guide Washer Kawasaki 0365410 SKS Part number: 0365410 Cross-Number: K9004558 Use i..
5.88 $
excl. VAT 4.90 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 3817
Spare part: Bearing Kawasaki 0365324 SNR Part number: 0365324 Cross-Number: Use in: Please make sure..
28.44 $
excl. VAT 23.70 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 11969
Spare part: Cylinder block press Pin Kawasaki 0365409 SKS Part number: 0365409 Cross-Number: K900456..
2.28 $
excl. VAT 1.90 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 4022
Spare part: Cylinder block Rotor Kawasaki 0803004 HANDOK Part number: 0803004 Cross-Number: 0496104 ..
252.72 $
excl. VAT 210.60 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10894
Spare part: Cylinder block Rotor Kawasaki 0803004 SKS Part number: 0803004 Cross-Number: 0496104 Use..
279.96 $
excl. VAT 233.30 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 16285
Spare part: Cylinder block Rotor Kawasaki M2X210 SKS Part number: Cross-Number: Use in: Kawasaki M2X..
302.40 $
excl. VAT 252.00 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 17858
Spare part: Drive Shaft motor Kawasaki 0803003 SKS
Part number: 0803003
Cross-Number: 036540..
135.96 $
excl. VAT 113.30 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 17351
Spare part: Friction plate Kawasaki 0365428 SKS
Part number: 0365428
Cross-Number:
Use in..
36.00 $
excl. VAT 30.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10897
Spare part: Piston shoe Kawasaki 0983304 SKS Part number: 0983304 Cross-Number: K9004568, 0365401, 2..
26.88 $
excl. VAT 22.40 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 16286
Spare part: Retainer Plate Kawasaki K9004555 SKS Part number: K9004555 Cross-Number: 0803005, 036541..
51.48 $
excl. VAT 42.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3827
Spare part: Roller Bearing Kawasaki M2X210, Bosch Rexroth A8VO55, Cat SBS120, SBS140 NTN Part number..
86.16 $
excl. VAT 71.80 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 16287

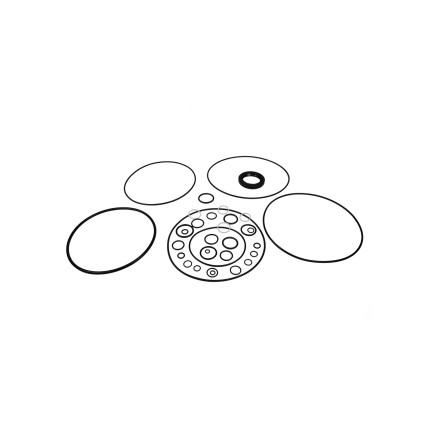

Spare part: Seal kit motor Kawasaki K9004885 SKS
Part number: K9004885
Cross-Number:
Use ..
62.64 $
excl. VAT 52.20 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 8350
Spare part: Separation Plate Kawasaki 0365429 HANDOK Part number: 0365429 Cross-Number: Use in: Plea..
15.84 $
excl. VAT 13.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki M2X210 hydraulic motor specifications
The Kawasaki M2X210 hydraulic motor is a fixed displacement, swashplate axial piston motor designed for medium to large excavator slewing drives. It is part of the M2X series, which includes models with displacements from 63 to 210 cc.
Technical specifications of the Kawasaki M2X210 hydraulic motor:
- Type: Fixed displacement axial piston motor with swash plate
- Displacement: 210 cm3/rev
- Maximum working pressure: 29.4 MPa (294 bar)
- Maximum torque: up to 20,000 N m
- Maximum rotation speed: up to 2,200 rpm
- Brake release pressure: 2.3 MPa (maximum allowable - 4.9 MPa)
Design features of the Kawasaki M2X210 hydraulic motor:
- Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
- High efficiency: Optimized design ensures stable operation under high loads.
- Reliability: Built-in valves provide overload protection and stable system operation.
Hydraulic motor cross number: 4371768, 4637117
Installed in the model:
- Hitachi: EX300-5 EX345USR(LC) EX350H-5 EX370-5M EX385USR ZX870-3
- JCB: JS330 JS360 JS460
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X210 hydraulic motor.
