Model: 14227
Spare part: Center Pin Bosch Rexroth R909063017 SKS
Part number: R909063017
Cross-Number:
..
50.04 $
excl. VAT 41.70 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 13933
Spare part: Cylinder block Rotor Bosch Rexroth A2F160, A7V160, A8V160 SKS
Part number:
Cross..
266.52 $
excl. VAT 222.10 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 15956
Spare part: Drive Shaft Bosch Rexroth A2F160, A7V160, A8V160 SKS
Part number:
Cross-Number:
..
246.96 $
excl. VAT 205.80 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 15957
Spare part: Drive Shaft motor Bosch Rexroth R909072918 SKS
Part number: R909072918
Cross-Num..
246.36 $
excl. VAT 205.30 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 13936
Spare part: Piston Bosch Rexroth R909069117 SKS
Part number: R909069117
Cross-Number:
Use..
33.24 $
excl. VAT 27.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 6489
Spare part: Retainer Plate Bosch Rexroth R902072553 HANDOK Part number: R902072553 Cross-Number: Use..
37.20 $
excl. VAT 31.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 7453
Spare part: Retainer Plate Bosch Rexroth R902072553 SKS Part number: R902072553 Cross-Number: Use in..
43.32 $
excl. VAT 36.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13056
Spare part: Shaft Seal Bosch Rexroth R909153488 SKS Part number: R909153488 Cross-Number: Use in: Pl..
23.76 $
excl. VAT 19.80 $
Oil seals and belts:
Oil seals and belts
Most Viewed
Model: 14228

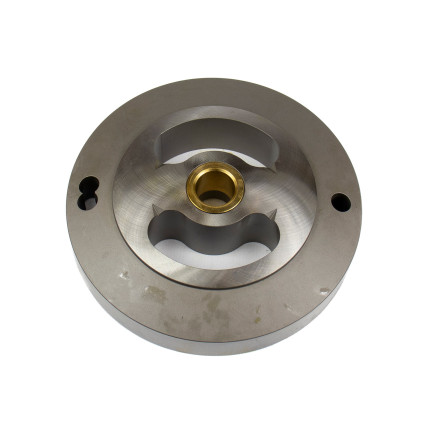

Spare part: Valve plate Motor Bosch Rexroth A2F160 SKS Part number: Cross-Number: Use in: Bosch Rexr..
103.20 $
excl. VAT 86.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 14229

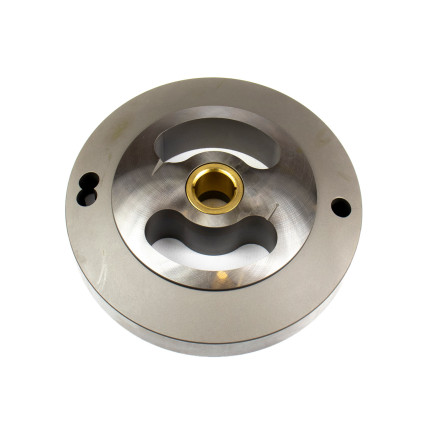

Spare part: Valve plate Right Bosch Rexroth A2F160 SKS Part number: Cross-Number: Use in: Bosch Rexr..
103.20 $
excl. VAT 86.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 14226
Pre-Order
Spare part: Disk Spring Bosch Rexroth R909063019 SKS
Part number: R909063019
Cross-Number:
..
4.68 $
excl. VAT 3.90 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 14230
Pre-Order
Spare part: Valve plate Left Bosch Rexroth A2F160 SKS Part number: Cross-Number: Use in: Bosch Rexro..
103.20 $
excl. VAT 86.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Bosch Rexroth A2F160 pump characteristics
The Bosch Rexroth A2F160 hydraulic pump is a constant displacement axial piston pump with an inclined block designed for operation in high-pressure systems. This model provides efficient power transmission and reliability in severe operating conditions. The A2F160 pump can be used as a pump or motor in open or closed hydraulic systems.
Technical specifications of Bosch Rexroth A2F160:
- Type: Axial piston pump with inclined block.
- Maximum displacement: 160 cm³
- Working pressure
- Nominal: up to 35 MPa 350 bar
- Maximum: up to 40 MPa 400 bar
- Rotation speed:
- Maximum: up to 3000 rpm
- Operating medium: mineral-based hydraulic oils or equivalents according to ISO VG 32–46
- Weight: 75–80 kg
- Application in special equipment: harvesters, forwarders, hydraulic presses, conveyors, machine tools, road machines, special vehicles
Hydraulic pump cross number:
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A2F160 hydraulic pump.
