Vendor code:
Model: 7345

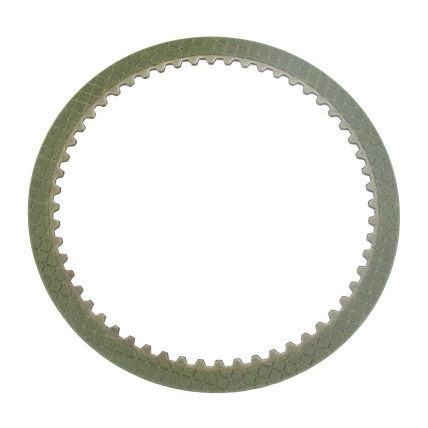

Spare part: Friction Plate Toshiba LR00040 AFM
Part number: LR00040
Cross-Number:
Use in:..
30.24 $
excl. VAT 25.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11143
Spare part: Friction plate Toshiba LR00040 HANDOK Part number: LR00040 Cross-Number: Use in: Please ..
43.48 $
excl. VAT 36.23 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5794

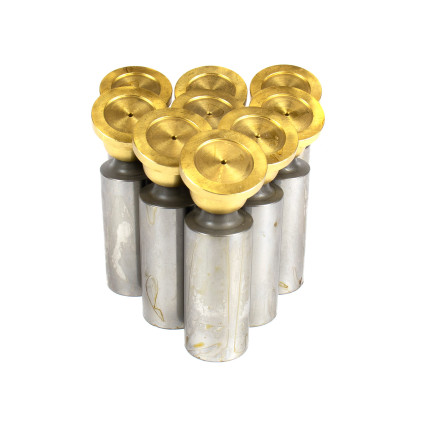

Spare part: Piston shoe Toshiba SG15, MFB200, MFC200 HANDOK Part number: Cross-Number: Use in: Toshi..
22.33 $
excl. VAT 18.61 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5793

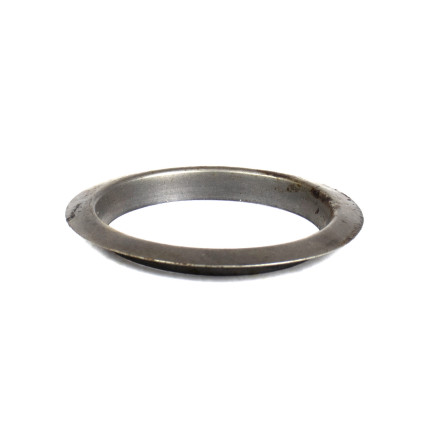

Spare part: Retainer Spring Toshiba LG00540 HANDOK Part number: LG00540 Cross-Number: Use in: Please..
37.27 $
excl. VAT 31.06 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 5792

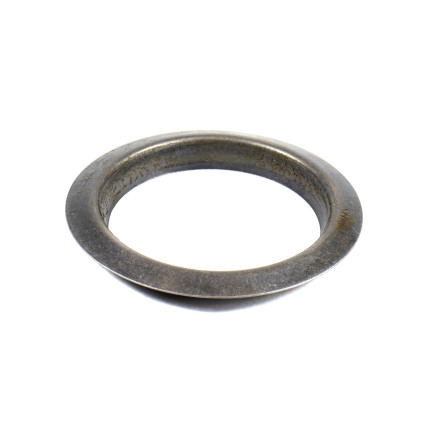

Spare part: Retainer Spring Toshiba SG15 HANDOK Part number: Cross-Number: Use in: Toshiba SG15 Use ..
16.97 $
excl. VAT 14.14 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 12975

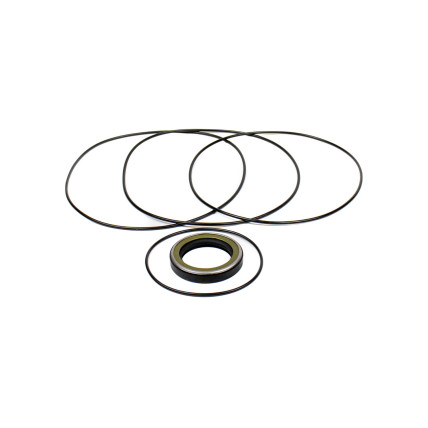

Spare part: Seal kit motor Toshiba SG12, SG15 SKS Part number: Cross-Number: Use in: Toshiba SG12, S..
70.42 $
excl. VAT 58.68 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 7346

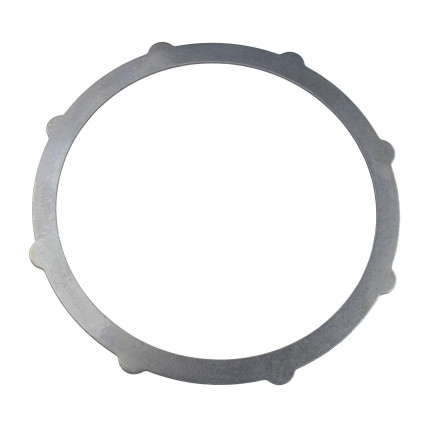

Spare part: Separation Plate Toshiba LR00041 AFM
Part number: LR00041
Cross-Number:
Use i..
30.24 $
excl. VAT 25.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11144

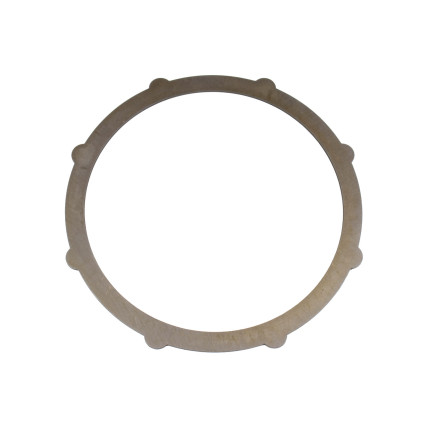

Spare part: Separation plate Toshiba LR00041 HANDOK Part number: LR00041 Cross-Number: Use in: Pleas..
23.90 $
excl. VAT 19.92 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5790

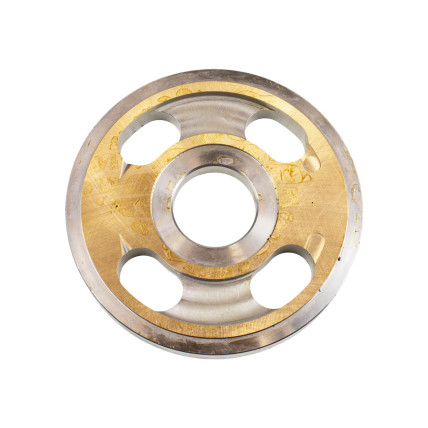

Spare part: Valve plate Toshiba SG15 HANDOK Part number: Cross-Number: Use in: Toshiba SG15 Use in m..
151.46 $
excl. VAT 126.22 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5789
Pre-Order

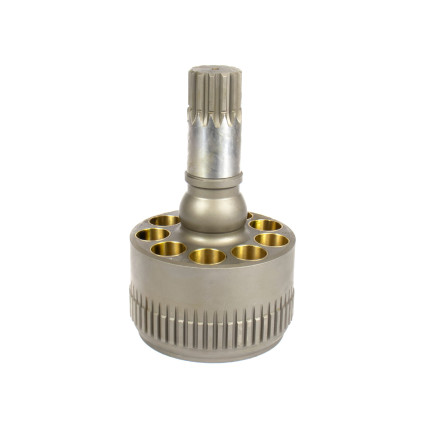

Spare part: Cylinder block Rotor Toshiba SG15 HANDOK
Part number:
Cross-Number:
Use in: T..
824.16 $
excl. VAT 686.80 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 5791
Pre-Order

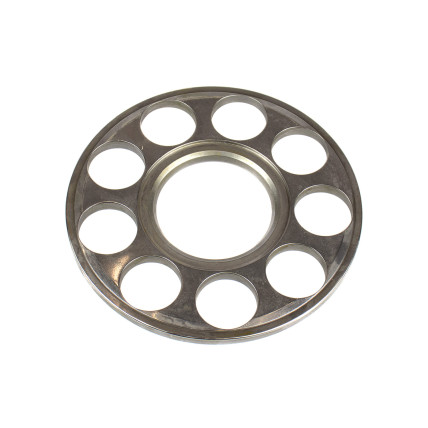

Spare part: Retainer Plate Toshiba SG15 HANDOK Part number: Cross-Number: Use in: Toshiba SG15 Use i..
81.12 $
excl. VAT 67.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5290
Pre-Order
Spare part: Seal kit motor Toshiba SG15 NOK KOREA Part number: Cross-Number: Use in: Toshiba SG15 Us..
108.36 $
excl. VAT 90.30 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 5795
Pre-Order

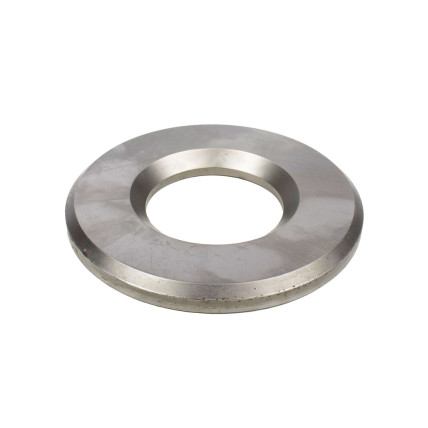

Spare part: Shoe plate Toshiba LF00001 HANDOK Part number: LF00001 Cross-Number: Use in: Please make..
77.76 $
excl. VAT 64.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Toshiba SG15 MFB200 MFC200 hydraulic motor specifications
The Toshiba SG15 hydraulic motor is a high-power hydraulic gear motor designed to drive the slewing mechanisms of large and heavy tracked excavators. This unit is a combination of a large-volume axial piston hydraulic motor and a durable multi-stage planetary gearbox. Its main task is to create extremely high torque to rotate the multi-ton platform of quarry and construction excavators with maximum precision and safety.
Technical specifications of the Toshiba SG15 MFB200 MFC200 hydraulic motor:
- Type: Hydraulic motor-reducer for platform rotation
- Construction: It is a single massive unit consisting of
- Hydraulic motor: Axial piston motor with a swash plate, designed to operate with high pressure and high flows of hydraulic fluid.
- Gearbox: Integrated planetary gearbox with reinforced design for transmitting huge torque.
- Valve block: An integrated block containing safety and brake valves to protect against overloads and ensure smooth braking.
- Displacement: 200 cm3/rev.
- Nominal working pressure: 300 - 350 bar (30 - 35 MPa).
- Maximum peak pressure: Can exceed 400 bar (40 MPa).
- Output speed: 9-11 rpm
- Weight: approximately 280-350 kg.
- Application: The SG15 gear motor is installed on heavy excavators weighing from 30 to 40 tons.
Cross numbers of hydraulic motors: 155613A1, 155620A1, 155106A1, 156133A1, 165745A1, LG00540, LF00001, LR01166, LR00040, LR00041, 155199A1, LJ00042, LBQ5264, 156082A1, LB00841, LE01021, LA00848, 154467A1, 160306A1, 160101A1, LJ00723, LR017710, LB00040, 155614A1, LNM0426, 166176A1, 154487A1, 154471A1, 154515A1, 153991A1, 155944A1, 156079A1, 156305A1, 154535A1, LJ01143, 154515A1, 154535A1, 154503A1, 153982A1, 108R020Z060N, 160903A1, LM00076, 155201A1, LR00895
Installed in the equipment model: CASE CX290, CX290B, CX300B, CX300C, CX330, CX350
The company "Aspect Plus" offers a wide range of spare parts for repairing the Toshiba SG15 MFB200 MFC200 hydraulic motor.
