Vendor code:
Model: 13972
Spare part: Drive Shaft Kawasaki K3VL28 SKS Part number: Cross-Number: Use in: Kawasaki K3VL28 Use i..
111.41 $
excl. VAT 92.84 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15223

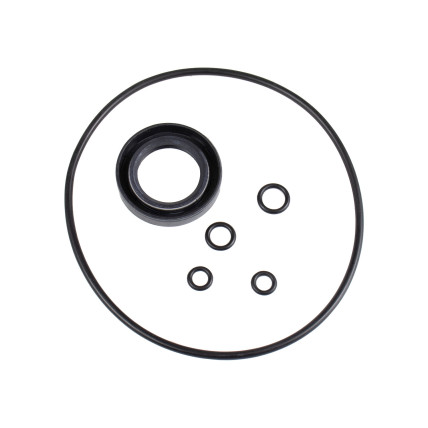

Spare part: Seal kit pump Kawasaki K3VL28 SKS
Part number:
Cross-Number:
Use in: Kawasaki..
87.42 $
excl. VAT 72.85 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 15149

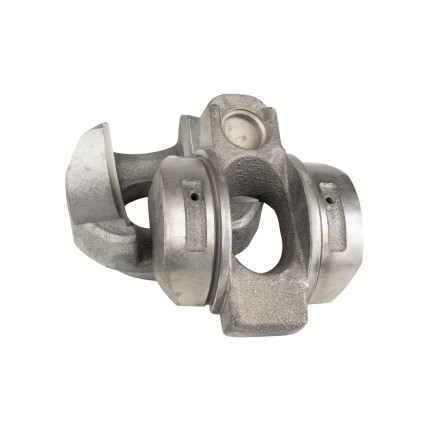

Spare part: Swash plate with Support Kawasaki KAK700513 SKS Part number: KAK700513 Cross-Number: Use..
337.55 $
excl. VAT 281.29 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13975
Spare part: Valve plate Right Kawasaki 1184403 SKS Part number: 1184403 Cross-Number: Use in: Please..
82.32 $
excl. VAT 68.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15148
Pre-Order
Spare part: Ball guide Kawasaki 1184413 SKS Part number: 1184413 Cross-Number: Use in: Please make s..
36.62 $
excl. VAT 30.52 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13971
Pre-Order
Spare part: Cylinder block Rotor Kawasaki 1184403 SKS Part number: 1184403 Cross-Number: Use in: Ple..
213.86 $
excl. VAT 178.22 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 13973
Pre-Order
Spare part: Piston shoe Kawasaki 1184402 SKS Part number: 1184402 Cross-Number: Use in: Please make ..
17.65 $
excl. VAT 14.71 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13974
Pre-Order
Spare part: Retainer Plate Kawasaki 1184412 SKS Part number: 1184412 Cross-Number: Use in: Please ma..
35.40 $
excl. VAT 29.50 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 2703
Pre-Order

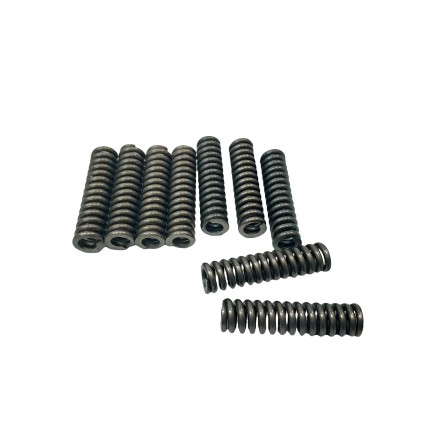

Spare part: Spring of Rotor Kawasaki 0818511 HANDOK
Part number: 0818511
Cross-Number: 08185..
1.99 $
excl. VAT 1.66 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 13970
Pre-Order
Spare part: Spring of Rotor Kawasaki 0818511 SKS Part number: 0818511 Cross-Number: XJBN-00421, 20/9..
2.52 $
excl. VAT 2.10 $
Hydraulic parts other:
Hydraulic parts other
Kawasaki K3VL28 hydraulic pump specifications
The Kawasaki K3VL28 hydraulic pump is a variable displacement axial piston pump with a swash plate designed for open hydraulic systems in mobile and industrial applications.
Technical specifications of the Kawasaki K3VL28 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacement: 28 cm3/rev (1.71 in3/rev)
- Nominal pressure: 320 bar
- Maximum pressure: 350 bar
- Maximum rotation speed: up to 3000 rpm (self-priming)
- Maximum torque on the shaft: 155 N m
- Weight: about 20 kg
- Shaft type: SAE B (splined)
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt (system must be warmed up before starting)
- Applications: injection molding machines, fans, garbage trucks, forklifts, cranes, etc.
Design features of the Kawasaki K3VL28 hydraulic pump:
- Configurations: single-section
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Additional options: presence or absence of PTO (power take-off shaft)
The Kawasaki K3VL28 hydraulic pump has the following advantages::
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump models: K3VL28/C-10RKS-P0, K3VL28/C-1NRKS-L0, K3VL28/C-10RSM-PR-T407
Hydraulic pump cross number: 60242827
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K3VL28 hydraulic pump.
