HPR75-02

Linde HPR75-02 hydraulic pump specifications

The Linde HPR75-02 hydraulic pump is a variable displacement axial piston pump designed for open circuit systems. It provides high reliability, efficiency and adaptability in a variety of mobile and industrial applications such as construction machinery, agricultural machinery and other mobile installations.

Technical specifications of the Linde HPR75-02 hydraulic pump:

• Pump type: Axial piston with variable displacement
• Displacement: 75.9 cm³/rev
• Maximum rotation speed: up to 2700 rpm
• Maximum volumetric flow: up to 114 l/min (at 1500 rpm)
• Nominal pressure: 420 bar
• Maximum pressure: 500 bar
• Maximum pressure in the housing: 2.5 bar
• Torque: approximately 519 N m
• Theoretical power: about 185 kW
• Weight: approximately 49 kg

The Linde HPR75-02 regulating pump has the following features and advantages:

• High energy efficiency: The flow on demand function allows the pump to adapt the hydraulic flow according to the system requirements, reducing energy consumption.
• Noise reduction: The integration of the SPU (Silencer Pulsation Unit) reduces pressure pulsations by up to 70%, ensuring quiet operation in sensitive environments.
• Modular design: Supports a variety of configurations, including tandem and multi-pump installations, with compatibility for high-pressure SAE ports and a variety of mounting flanges.
• Reliability: High performance and durability even in difficult operating conditions.

Hydraulic pump cross number: 2933200804, 2933231403, 22533431802, 2633431809, 2533431811, 22533431801, 2533431816, 0009215627, 2633200403, 2633230123, 2533230107, 2633230122, 2533230102, 2933230501, 2533240202, 2533240206, 2533232035, 2533232019, 2533232011, 0009234031, 2533014003, 2533450406, 2533450401, 9509000731, 9509000675, 0009280367

Installed in the model:

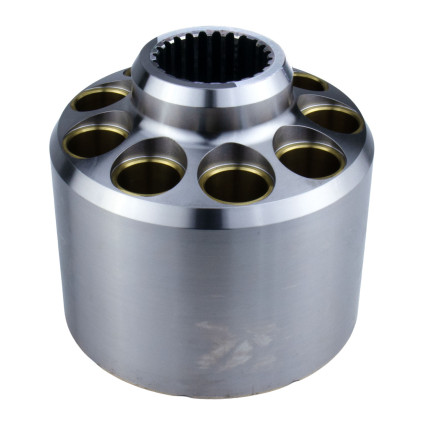

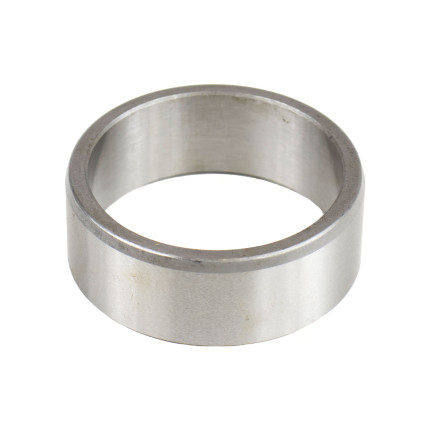

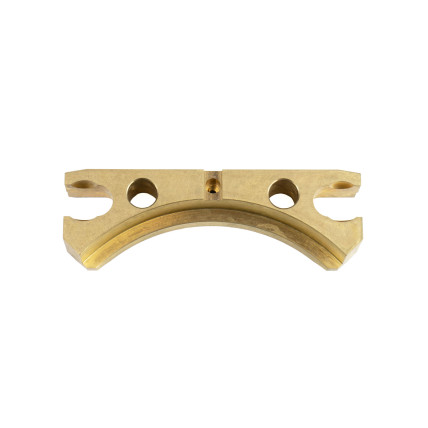

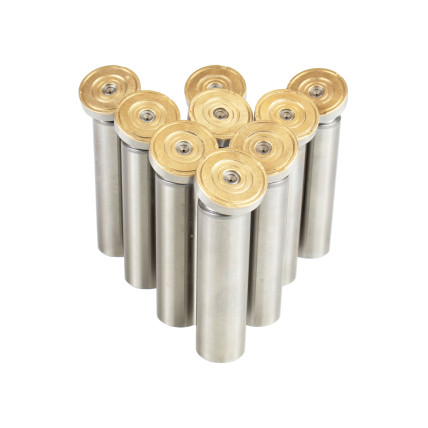

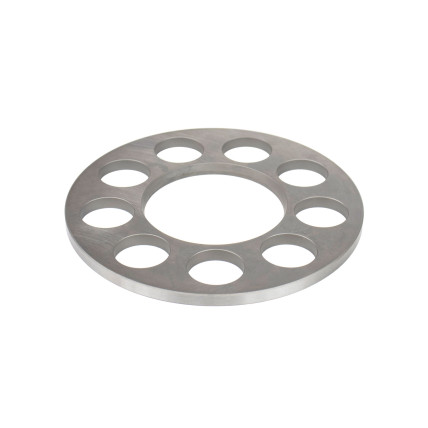

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Linde HPR75-02 hydraulic pump.
