Vendor code:
Model: 8216
Spare part: Cylinder block Rotor Linde 2933200807 SKS
Part number: 2933200807
Cross-Number:
..
353.70 $
excl. VAT 294.75 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9672
Spare part: Fix Plate of Retainer Plate Linde 22533431802 SKS Part number: 22533431802 Cross-Number:..
57.65 $
excl. VAT 48.04 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9688

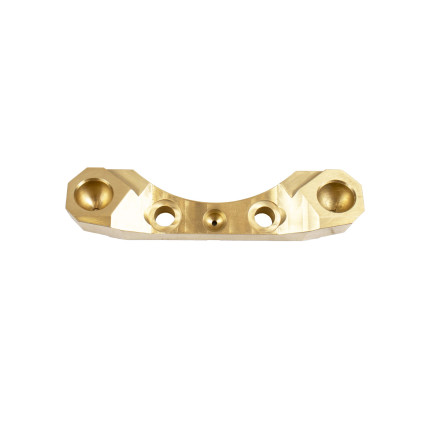

Spare part: Fix Plate of Retainer Plate Linde 2633431808 SKS Part number: 2633431808 Cross-Number: 2..
83.14 $
excl. VAT 69.28 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9898
Spare part: Retainer Plate Linde 2933231403 SKS Part number: 2933231403 Cross-Number: Use in: Please..
77.87 $
excl. VAT 64.89 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9676
Spare part: Separation Bush Linde 2933230501 SKS Part number: 2933230501 Cross-Number: 2053230505 Us..
16.85 $
excl. VAT 14.04 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 16965
Spare part: Sliding Bearing Linde 0009234031 reinforced SKS Part number: 0009234031 Cross-Number: Us..
26.09 $
excl. VAT 21.74 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17625
Spare part: Socket Pin Linde HPV55-02, HPR55-02, HMV55-02, HMR75-02, HMV75-02, HPR75-02, HPV75-02, H..
5.51 $
excl. VAT 4.59 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9640
Spare part: Washer Linde 0009143218 SKS Part number: 0009143218 Cross-Number: Use in: Please make su..
3.85 $
excl. VAT 3.21 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9641
Spare part: Washer Linde HPR55-02, HPV75-02, HMV75-02, HMF75-02, HMR75-02 SKS Part number: Cross-Num..
3.85 $
excl. VAT 3.21 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 8130
Pre-Order
Spare part: Bearing Kayaba XJCK-00014 SKS
Part number: XJCK-00014
Cross-Number: 2441U1040S32..
24.32 $
excl. VAT 20.27 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17874
Pre-Order
Spare part: Cylinder block Rotor Linde 2933200804 SKS
Part number: 2933200804
Cross-Number: ..
331.32 $
excl. VAT 276.10 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9899
Pre-Order
Spare part: Drive Shaft Linde 2933230108 SKS
Part number: 2933230108
Cross-Number: 293323010..
95.90 $
excl. VAT 79.92 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9877
Pre-Order
Spare part: Piston shoe Linde 2333200402 SKS Part number: 2333200402 Cross-Number: Use in: Please ma..
22.97 $
excl. VAT 19.14 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10847
Pre-Order
Spare part: Valve plate Motor Linde 2933240206 SKS Part number: 2933240206 Cross-Number: Use in: Ple..
89.15 $
excl. VAT 74.29 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Linde HMV75-02 hydraulic motor
The Linde HMV75-02 hydraulic motor is a variable displacement axial piston motor designed for operation in open and closed hydraulic circuit systems. This motor is characterized by high reliability, compactness and stable operation at low speeds.
Technical characteristics of the Linde HMV75-02 hydraulic motor:
- Motor type: Axial piston with variable displacement
- Displacement: ~75.9 cm3/rev
- Maximum rotation speed:
- at maximum volume: up to 3800 rpm
- at minimum volume (periodically): up to 5000 rpm
- Maximum working pressure: 450 bar
- Maximum pressure (intermittent): 500 bar
- Torque:
- constant: ~302 N m
- maximum: ~508 N m
- Power:
- constant: ~120 kW
- maximum: ~202 kW
- Weight: ~32 kg
The Linde HMV75-02 variable displacement hydraulic motor has the following features and advantages:
- High reliability: Ensures a long service life even with intensive use.
- Compact design: Allows the motor to be integrated in confined spaces.
- Flexibility in settings: Ability to adapt to different system requirements.
- Smooth start and stable operation at low speeds: Provides precise control and efficiency.
- Possibility of installing additional valves and flanges: Increases the functionality and adaptability of the motor.
Hydraulic motor cross number: 2933200804, 2933200807, 0009215627, 0009143506, 0009143500, 0009143218, 9456622505, 2333200402, 2333200404, 2933231403, 2933240206, 2533232033, 2533232021, 2533232013, 2533232031, 2533232008, 0009234031, 0009080261, 2333230100, 2933230501, 22533431802, 2633431809, 2333431801, 2333431803, 2633431808, 2533014003, 2333450401, 2333450402, 0009623829, 9509000731, 9509000675, 0009280367
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMV75-02 hydraulic motor.
