Sort By:
Most Viewed
Vendor code:
Model: 11970

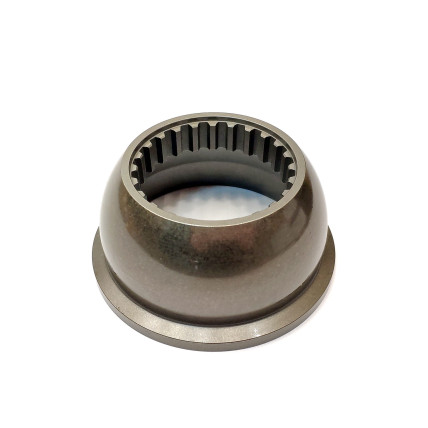

Spare part: Ball guide 3724610-0017 Kawasaki M3X530 SKS Part number: 3724610-0017 Cross-Number: Use ..
70.30 $
excl. VAT 58.58 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11971

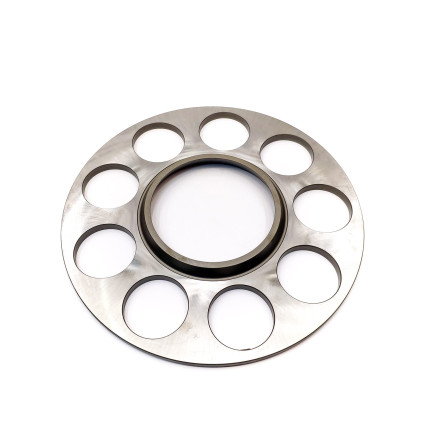

Spare part: Retainer Plate 3724110-0011 Kawasaki M3X530 SKS Part number: 3724110-0011 Cross-Number: ..
174.84 $
excl. VAT 145.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10902
Pre-Order

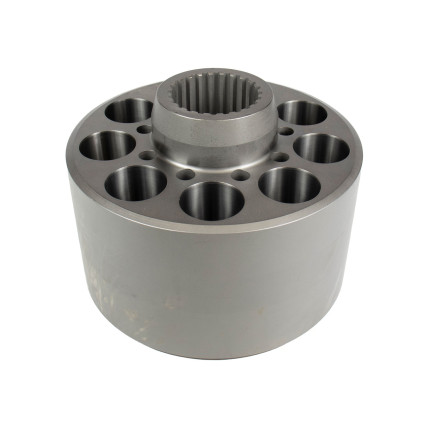

Spare part: Cylinder block Rotor 3724370-0175 Kawasaki M3X530 SKS
Part number: 3724370-0175
..
1,125.90 $
excl. VAT 938.25 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 10903
Pre-Order

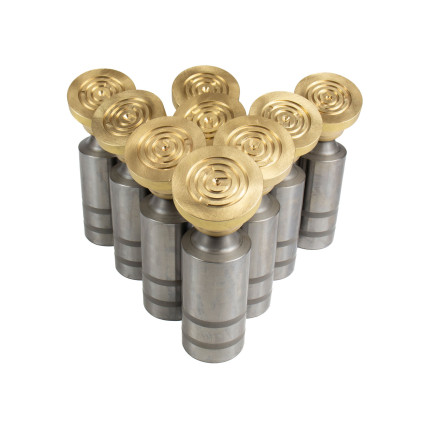

Spare part: Piston shoe 3724530-0080 Kawasaki M3X530 SKS Part number: 3724530-0080 Cross-Number: 370..
104.59 $
excl. VAT 87.16 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11972
Pre-Order

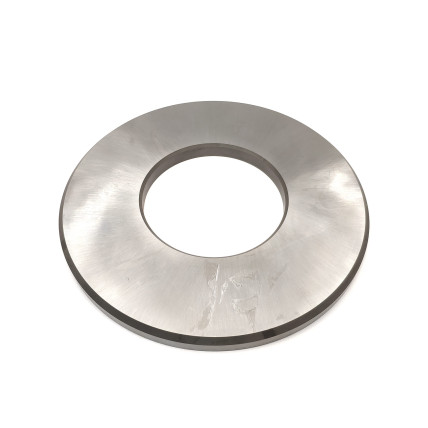

Spare part: Shoe plate 3724670-0010 Kawasaki M3X530 SKS Part number: 3724670-0010 Cross-Number: Use ..
156.12 $
excl. VAT 130.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10904
Pre-Order
Spare part: Valve plate Motor 3724370-0175 Kawasaki M3X530 SKS Part number: 3724370-0175 Cross-Numbe..
175.27 $
excl. VAT 146.06 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki M3X530 hydraulic motor specifications
The Kawasaki M3X530 hydraulic motor is a fixed displacement, swashplate axial piston motor designed for heavy duty mobile and industrial applications such as drilling rigs, cranes, crushers, tunnel boring machines and marine vessels.
Technical specifications of the Kawasaki M3X530 hydraulic motor:
- Displacement: 533 cm3/rev
- Nominal pressure: 29.4 MPa (300 bar)
- Maximum pressure: 34.3 MPa (343 bar)
- Maximum speed: 1,400 rpm
- Maximum flow rate: 750 l/min
- Rated torque: 2,500 N m
- Rated power: 370 kW
- Mass
- without brake: 90 kg
- with brake: 134 kg
- Body volume: 2.5 l
- Moment of inertia: 7.3 N m2
- Applications in special equipment: cargo ships, oil tankers, offshore platforms, plastic molding, injection molding machines, drilling rigs, burners, crushers, etc.
Design features of the Kawasaki M3X530 hydraulic motor:
- Smooth start: Reduced pressure pulsations and friction ensure stable operation at low speeds.
- High efficiency: Optimized design ensures stable operation under high loads.
- Gearbox integration capability: The M3X530 model can be equipped with the RG10S6.4 gearbox, providing a total volume of 3,104 cm3, a maximum pressure of 20.6 MPa and a maximum speed of 150 rpm
Hydraulic motor cross number: 37180820-231
Hydraulic pump models: M3X530ACM-011A, M3X530BCN-485-013A, M3X530BCN-467-009A-V1, M3X530BCN-467-009A-KDC30, M3X530BCN-019A, M3X530APN-XV023A, M3X530APN-485-RV024A, M3X530APN-485-012A-RG10S6.4A5, M3X530APN-485-012A, M3X530APN-467-018A-RG10S, M3X530A1N-021A, M3X530APN-467-018A, M3X530APN-014A-RG10S6.4, M3X530APN-014A-KDC30, M3X530APN-014A, M3X530APM-485-RV025A, M3X530APM-485-024A, M3X530ACM-485-002B-KDC30MR-AX3.1, M3X530ACM-485-002B-KDC30-AY4.1, M3X530ACM-485-002B, M3X530ACM-011A-KDC30-AY4.1, M3X530BCN-485-013A-VBS-199, M3X530APN-022A, M3X530BCN-485-013B, M3X530BCN-485-017A, M3X530E0-20N-01M-600, M3X530BPN-485-020A-V1, M3X530BPN-485-020A-KDC30MR-764A, M3X530BPN-485-020A-KDC30MR-752A, M3X530BPN-485-020A-KDC30MR, M3X530BPN-467-007A-V1, M3X530BPN-467-007A-RG10S-KDC30, M3X530BPN-010A, M3X530BPN-008A-B25C, M3X530BPN-008A, M3X530BPN-003A-KDC30-750, M3X530BPN-003A, M3X530BPM-485-016A-KDC30MRHS, M3X530BPM-485-016A-KDC30MRH, M3X530BPM-485-016A, M3X530BPM-004A-KDC30-750, M3X530BPM-004A, M3X530BPM-001B-KDC30MR-766, M3X530BPM-001B-KDC30, M3X530BPM-001B, M3X530BCN-485-017A-KDC30, M3X530BCN-485-013B-VBS-199, M3X530E0-20N-02M-600
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M3X530 hydraulic motor.
