Vendor code:
Model: 8114
Spare part: Ball guide Liebherr LPVD150, DPVPO108 SKS Part number: Cross-Number: Use in: Liebherr LP..
59.26 $
excl. VAT 49.38 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8115

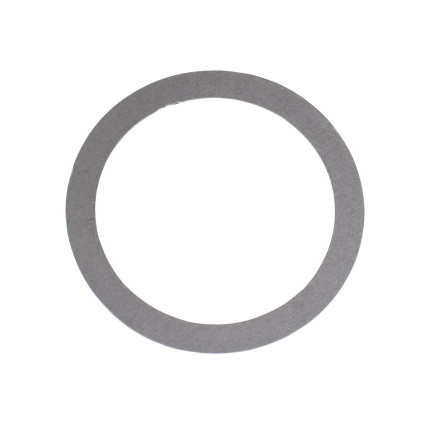

Spare part: Ball Guide Washer Liebherr LPVD150, DPVPO108 SKS Part number: Cross-Number: Use in: Lieb..
5.21 $
excl. VAT 4.34 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 14356
Spare part: Cylinder block Rotor Liebherr LPVD150, DPVPO108 SKS
Part number:
Cross-Number:
..
612.37 $
excl. VAT 510.31 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 8110
Spare part: Drive Shaft Liebherr LPVD140, LPVD150 SKS Part number: Cross-Number: Use in: Liebherr LP..
165.26 $
excl. VAT 137.72 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9831
Spare part: Driven Shaft Liebherr LPVD140, LPVD150 SKS Part number: Cross-Number: Use in: Liebherr L..
165.26 $
excl. VAT 137.72 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Top
Most Viewed
Vendor code:
Model: 8117

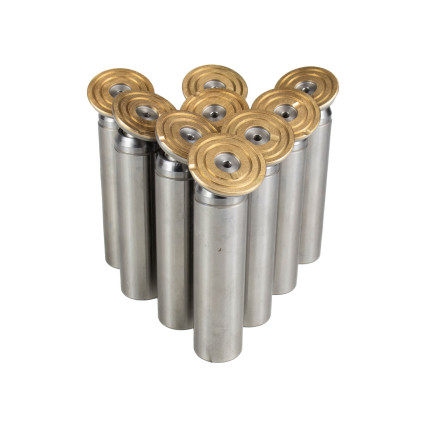

Spare part: Piston shoe Liebherr LPVD150, DPVPO108 SKS Part number: Cross-Number: Use in: Liebherr L..
39.98 $
excl. VAT 33.32 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8113
Spare part: Retainer Plate Liebherr LPVD150, DPVPO108 SKS
Part number:
Cross-Number:
Use ..
75.38 $
excl. VAT 62.82 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8111
Spare part: Seal kit pump Liebherr LPVD140, LPVD150 SKS Part number: Cross-Number: Use in: Liebherr ..
113.71 $
excl. VAT 94.76 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 8118

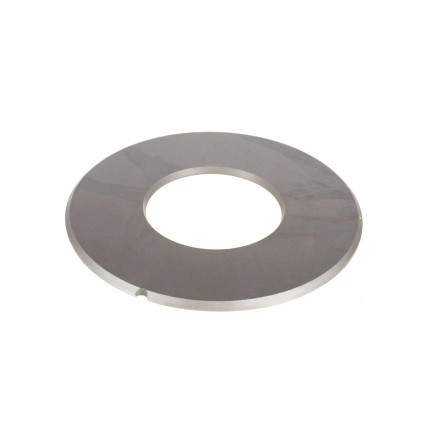

Spare part: Shoe plate Liebherr LPVD150, DPVPO108 SKS Part number: Cross-Number: Use in: Liebherr LP..
60.18 $
excl. VAT 50.15 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9693

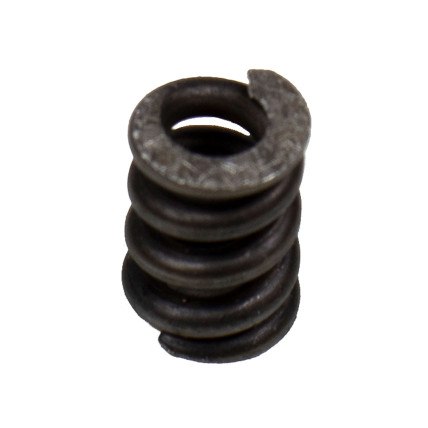

Spare part: Spring of Ball guide Liebherr 7382167 SKS
Part number: 7382167
Cross-Number:
..
3.85 $
excl. VAT 3.21 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 8112
Spare part: Valve plate Left Liebherr LPVD150, DPVPO108 SKS Part number: Cross-Number: Use in: Liebh..
109.73 $
excl. VAT 91.44 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9832
Pre-Order
Spare part: Cylinder block Rotor Liebherr LPVD150 SKS Part number: Cross-Number: Use in: Liebherr LP..
586.39 $
excl. VAT 488.66 $
Main hydraulic units:
Main hydraulic units
Characteristics of the Liebherr LPVD150 hydraulic pump
The Liebherr LPVD150 hydraulic pump is a variable displacement axial piston pump for open circuit systems, designed for heavy mobile machinery operating under high loads. Thanks to its large displacement, high pressure and reliability, it is an effective solution for machinery where a stable and powerful hydraulic supply is required.
Technical characteristics of the Liebherr LPVD150 hydraulic pump:
- Type: variable displacement axial piston pump
- Design: with swash plate, for open circuit
- Displacement: 150 cm3/rev
- Maximum working pressure: 400 bar
- Peak pressure: 420 bar
- Maximum rotation speed: about 2,000–2,200 rpm
- Adjustment system: hydraulic, electro-hydraulic, depending on configuration
- Rotation direction: CW or CCW
- Weight: approximately 85–90 kg
- Drive type: splined or tapered shaft
- Installation: standard flange mounting, can be used in multi-pump systems
Application of the Liebherr LPVD150 hydraulic pump:
- Heavy construction equipment (excavators 40–70 t)
- Mining and quarrying machines
- Road construction installations
- Drilling machines, large mobile machinery
- Industrial systems requiring high hydraulic fluid flow rates
Hydraulic pump cross number: 9080214
Installed in the model: Liebherr A944C Li, R944 Li
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Liebherr LPVD150 hydraulic pump.
