P2145

Parker P2145 hydraulic pump characteristics

The Parker P2145 hydraulic pump is the most powerful axial piston pump with variable displacement in its series. This model is designed for the most severe operating conditions and is used in equipment that requires maximum hydraulic performance. Its main task is to provide a high and at the same time precisely regulated fluid flow to power the main working elements of large machines.

Technical characteristics of the Parker P2145 hydraulic pump:

• Type: Variable displacement axial piston pump
• Design: with swashplate, reinforced cast iron body, conical pistons, designed for maximum loads.
• Displacement: 145 cm³/rev
• Maximum working pressure: 280 bar (4060 psi)
• Rotation speed
  • Maximum continuous speed: 2,200 rpm
  • Minimum speed: 500 rpm
• Weight: approximately 51 kg (uses the same chassis as the P2105)
• Application:
  • heavy construction equipment (large wheel loaders, excavators, bulldozers)
  • logging equipment (forwarders, harvesters)
  • mining equipment
  • large agricultural machinery (forage harvesters)
• Other features:
  • highest performance in the series
  • high overall efficiency
  • available with various types of regulators, including Load Sensing
  • designed for long service life under intensive and peak loads

Hydraulic pump cross number:

Installed in the model:

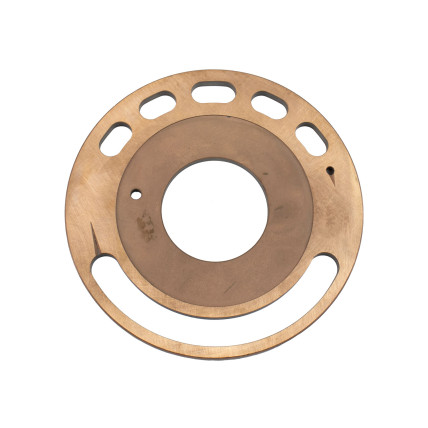

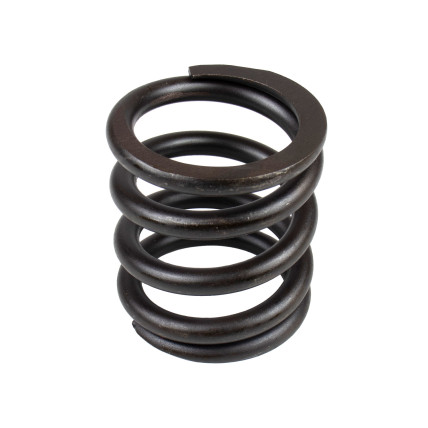

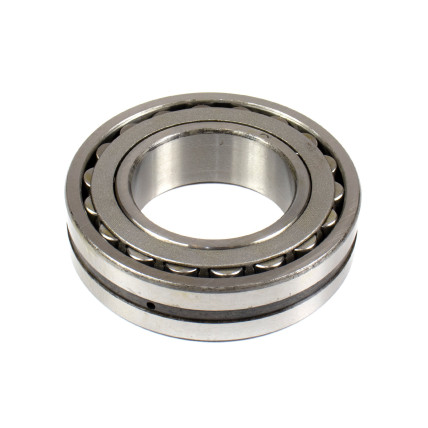

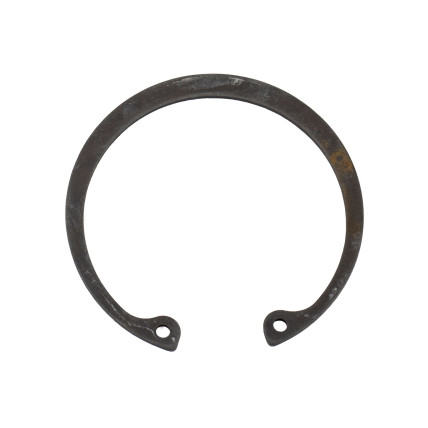

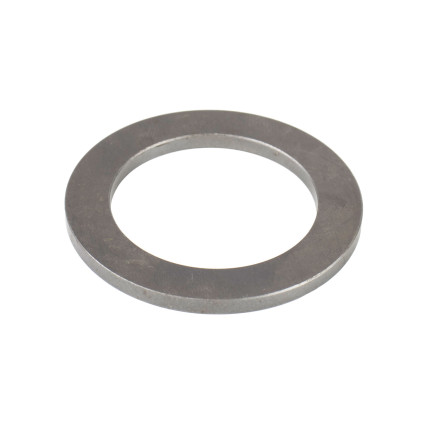

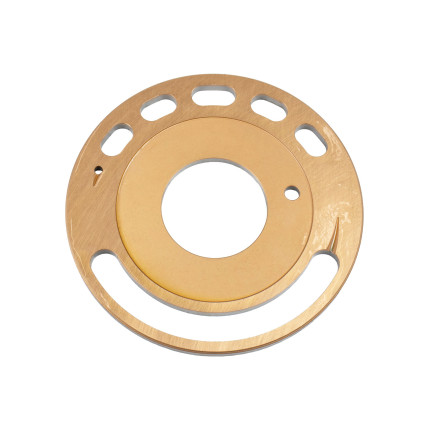

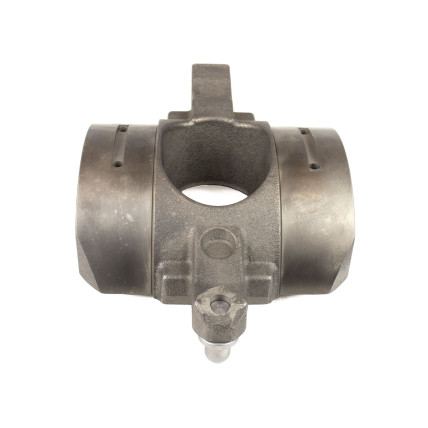

The company "Aspect Plus" offers a wide range of spare parts for repairing the Parker P2145 hydraulic pump.
