Vendor code:
Model: 14023
Spare part: Fix Plate of Retainer Plate Linde 2573431805 SKS Part number: 2573431805 Cross-Number: U..
168.73 $
excl. VAT 140.61 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 14022
Spare part: Fix Plate of Retainer Plate Linde 2573431806 SKS Part number: 2573431806 Cross-Number: U..
168.59 $
excl. VAT 140.49 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 15869
Spare part: Fix Plate of Retainer Plate Linde 2673431801 SKS Part number: 2673431801 Cross-Number: U..
232.91 $
excl. VAT 194.09 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 14028

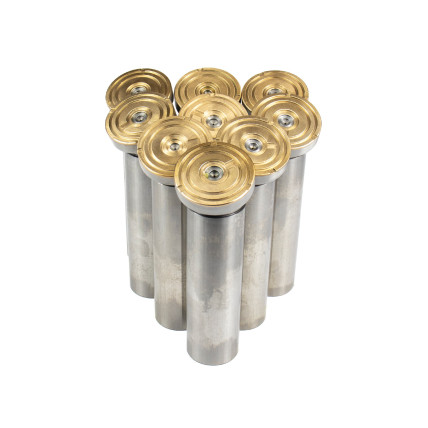

Spare part: Piston shoe Linde 2373200404 SKS
Part number: 2373200404
Cross-Number:
Use in..
47.09 $
excl. VAT 39.24 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 14019
Spare part: Retainer Plate Linde 2673231403 SKS
Part number: 2673231403
Cross-Number:
Use..
88.90 $
excl. VAT 74.08 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 14024
Spare part: Rod Linde 2573014003 SKS Part number: 2573014003 Cross-Number: 2573014000 Use in: Please..
23.94 $
excl. VAT 19.95 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 14027
Spare part: Shaft Seal Linde 0009280276 SKS
Part number: 0009280276
Cross-Number:
Use in:..
18.88 $
excl. VAT 15.73 $
Oil seals and belts:
Oil seals and belts
Most Viewed
Vendor code:
Model: 14029

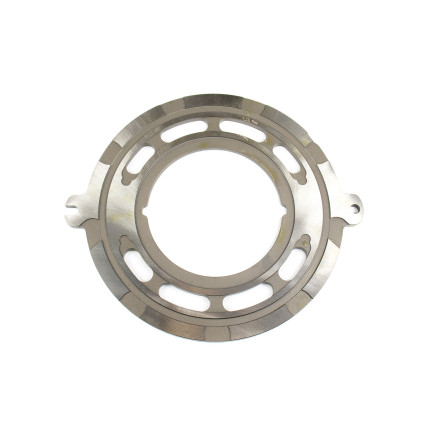

Spare part: Valve plate Motor Linde 2373240202 SKS
Part number: 2373240202
Cross-Number: 237..
98.71 $
excl. VAT 82.26 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10302
Pre-Order
Spare part: Cylinder block Rotor Linde 2373200802 SKS
Part number: 2373200802
Cross-Number:
..
491.71 $
excl. VAT 409.76 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 14026
Pre-Order
Spare part: Sliding Bearing Linde 0009234045 SKS
Part number: 0009234045
Cross-Number:
Us..
48.50 $
excl. VAT 40.42 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Characteristics of the Linde HMR210-02 hydraulic motor
The Linde HMR210-02 hydraulic motor is a variable displacement axial piston motor designed for use in closed hydraulic systems. It provides high power, reliability and efficiency, making it suitable for use in mobile machinery, construction machinery and industrial equipment.
Technical specifications of the Linde HMR210-02 hydraulic motor:
- Motor type: Axial piston with variable displacement
- Design: Bent axle (swash plate design)
- Displacement: 210 cm3/rev
- Maximum rotation speed at Vmax: 2700 rpm
- Maximum rotation speed at Vmin: 3200 rpm
- Nominal working pressure: 450 bar
- Maximum pressure (short-term): 500 bar
- Output torque (at ?p=430 bar): 1438 N m
- Power at angular speed: 482 kW
- Weight: ~101 kg
The Linde HMR210-02 regulating motor has the following features and advantages:
- High reliability: Ensures a long service life even with intensive use.
- Compact design: Allows the motor to be integrated in confined spaces.
- Flexibility in settings: Ability to adapt to different system requirements.
Hydraulic motor cross number: 2373200802, 2573200803, 2373200404, 2673231403, 2373230101, 2373230103, 0009246868, 9509000776, 2673232000, 2673232006, 2573431806, 2573431805, 2373431806, 2373431801, 2673431801, 2573431804, 0009160200, 2573014003, 2573014000, 2373240202, 2373240207, 0009234045, 0009080261, 2373230500, 2373230501, 0009280276
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMR210-02 hydraulic motor.
