Vendor code:
Model: 9470
Spare part: Ball guide Uchida AP2D18 SKS Part number: Cross-Number: Use in: Uchida AP2D18 Use in mac..
23.26 $
excl. VAT 19.38 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9471
Spare part: Cylinder block press Pin Uchida AP2D18, AP2D14, A10V28, A10VD28, GM21, TM18, PVD-1B SKS ..
2.99 $
excl. VAT 2.49 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9249

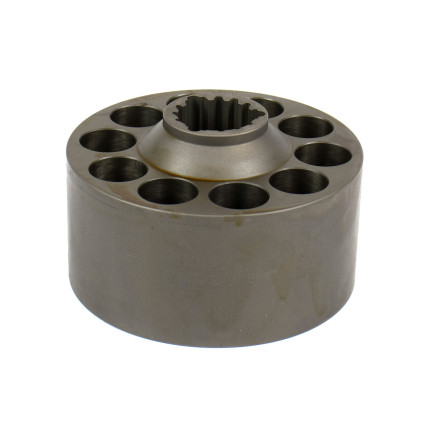

Spare part: Cylinder block Rotor Uchida AP2D18 HANDOK Part number: Cross-Number: Use in: Uchida AP2D..
153.55 $
excl. VAT 127.96 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9467
Spare part: Cylinder block Rotor Uchida AP2D18 SKS Part number: Cross-Number: Use in: Uchida AP2D18 ..
187.10 $
excl. VAT 155.92 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 12177

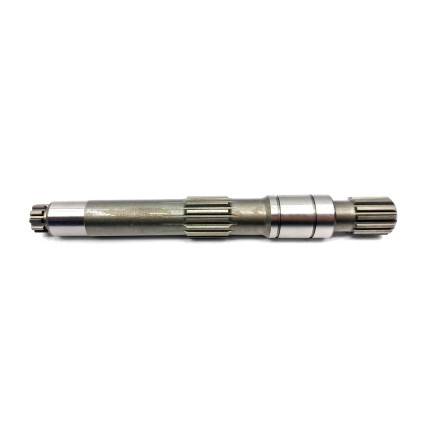

Spare part: Drive Shaft Uchida AP2D18 L=205.0 mm, 13T/10T SKS Part number: Cross-Number: Use in: Uch..
83.93 $
excl. VAT 69.94 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15308

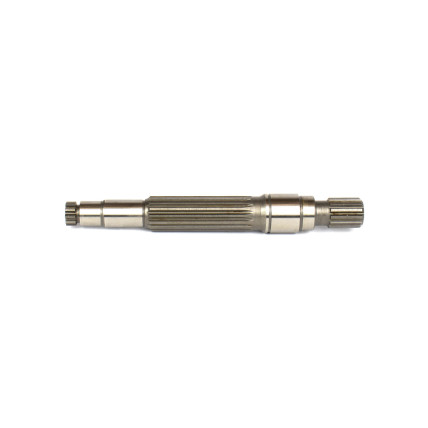

Spare part: Drive Shaft Uchida AP2D18 L=208.5 mm, 13T/10T SKS Part number: Cross-Number: Use in: Uch..
75.10 $
excl. VAT 62.58 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9251

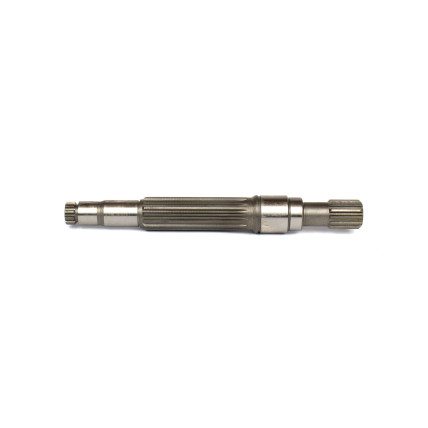

Spare part: Drive Shaft Uchida AP2D18 L=218.0 mm, 13T/10T HANDOK Part number: Cross-Number: Use in: ..
60.16 $
excl. VAT 50.13 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9259

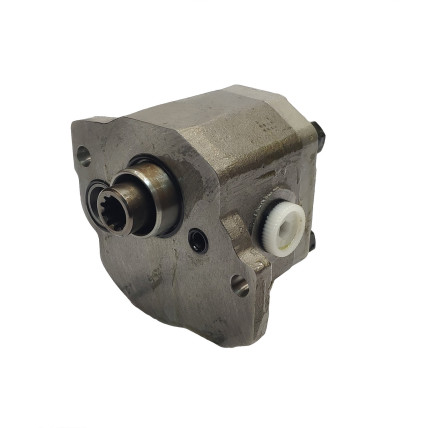

Spare part: Gear pump Uchida AP2D12, AP2D18, AP2D21, AP2D25 HANDOK Part number: Cross-Number: Use in..
193.14 $
excl. VAT 160.95 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 9253

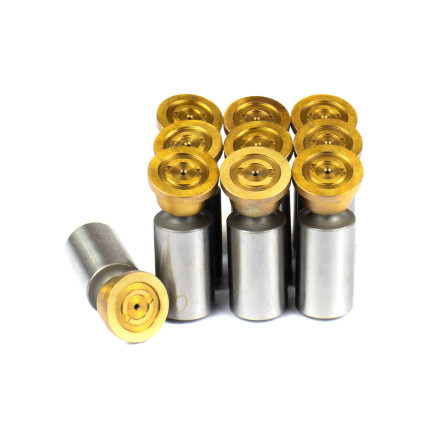

Spare part: Piston shoe Uchida AP2D18 HANDOK Part number: Cross-Number: Use in: Uchida AP2D18 Use in..
14.75 $
excl. VAT 12.29 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9468

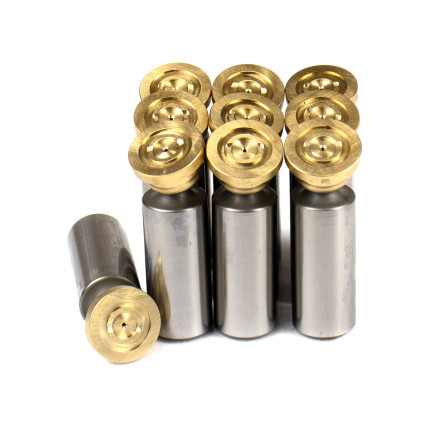

Spare part: Piston shoe Uchida AP2D18 SKS Part number: Cross-Number: Use in: Uchida AP2D18 Use in ma..
18.26 $
excl. VAT 15.22 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12863
Spare part: Piston shoe Uchida AP2D18LV3R SKS Part number: Cross-Number: Use in: Uchida AP2D18LV3R U..
18.26 $
excl. VAT 15.22 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Top
Most Viewed
Vendor code:
Model: 13221

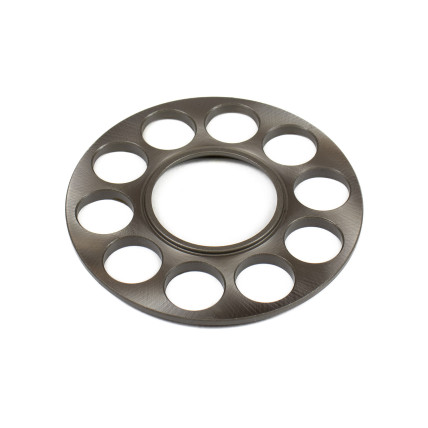

Spare part: Retainer Plate Uchida AP2D18 SKS Part number: Cross-Number: Use in: Uchida AP2D18 Use in..
33.60 $
excl. VAT 28.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15309
Spare part: Retainer Plate Uchida AP2D18LV3R SKS Part number: Cross-Number: Use in: Uchida AP2D18LV3..
33.60 $
excl. VAT 28.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9254

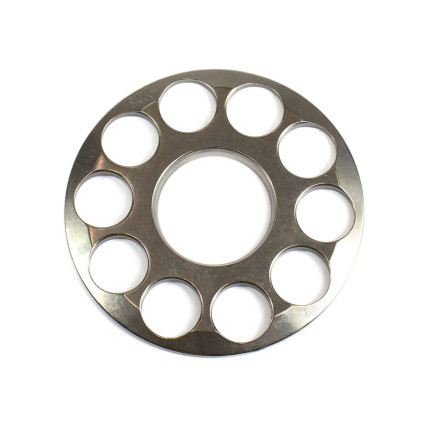

Spare part: Retainer Plate Uchida D=87.0 mm HANDOK Part number: D=87.0 mm Cross-Number: Use in: Plea..
28.54 $
excl. VAT 23.78 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9457

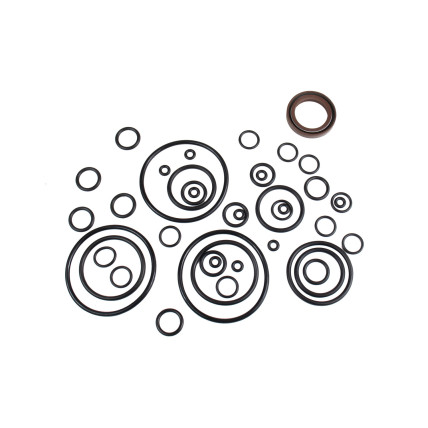

Spare part: Seal kit pump Uchida AP2D18 SKS Part number: Cross-Number: Use in: Uchida AP2D18 Use in ..
71.72 $
excl. VAT 59.77 $
Hydraulic seal kits:
Hydraulic seal kits
Characteristics of the Uchida AP2D18 hydraulic pump
The Uchida AP2D18 hydraulic pump is a high-performance dual (tandem) axial piston pump with variable displacement, which serves as the main power unit of hydraulic systems in mini excavators and other mid-range mobile equipment. Its design combines two pumps in one housing, which allows you to effectively power several hydraulic circuits simultaneously, ensuring high speed and smooth operation. Thanks to its reliable design and built-in power control system, the AP2D18 pump ensures optimal use of engine power, durability and stable operation of the machine under load.
Technical characteristics of the Uchida AP2D18 hydraulic pump:
- Type: Axial piston pump, double (tandem), with variable displacement
- Design: Swash plate pump. Often equipped with a third gear pump for control circuits (pilot line)
- Displacement (piston part): 2 x 18 cm³/rev
- Nominal working pressure: 20.6 MPa (210 kgf/cm² or 206 bar)
- Maximum pressure: up to 25 MPa (250 bar)
- Maximum rotation speed: ~2400 - 2600 rpm
- Performance (Flow): 2 x ~43 l/min
- Direction of rotation: Right (clockwise)
- Weight: Approximately 40 - 45 kg
- Application: Main hydraulic pump for 4-5 ton mini excavators
Hydraulic pump cross number: 2293229, 229-3229, 31MH-10010, 263-1867
Installed in the model:
- Kubota KX91-3
- CAT 303 E303
- KOMATSU PC30
- KOBELCO SK30
- IHI 45
- Hyundai R35-7Z, R35Z-7A, R35-Z9
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Uchida AP2D18 hydraulic pump.
