Vendor code:
Model: 6898
Spare part: Ball guide Liebherr LPVD64, FMF64 HANDOK Part number: Cross-Number: Use in: Liebherr LPV..
39.98 $
excl. VAT 33.32 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 17053

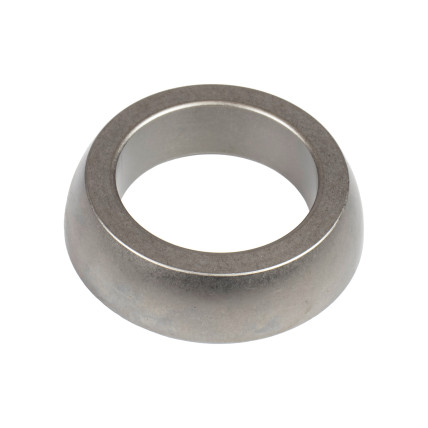

Spare part: Ball guide Liebherr LPVD64, FMF64 SKS
Part number:
Cross-Number:
Use in: Lieb..
51.38 $
excl. VAT 42.82 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8071

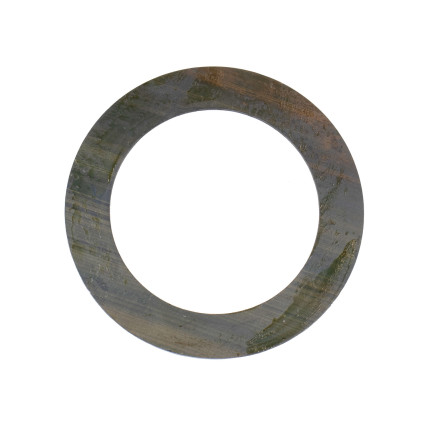

Spare part: Ball guide Washer Liebherr LPVD64 SKS Part number: Cross-Number: Use in: Liebherr LPVD64..
4.21 $
excl. VAT 3.51 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 8069

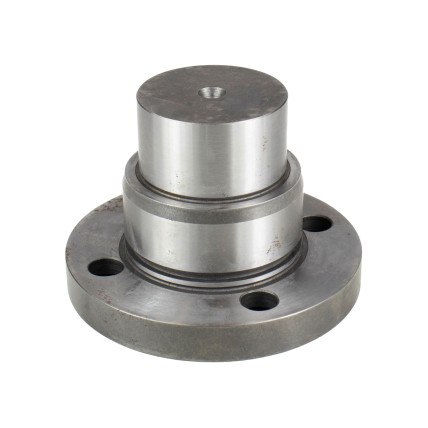

Spare part: Bearing Seat Liebherr 9277186 SKS Part number: 9277186 Cross-Number: Use in: Please make..
32.40 $
excl. VAT 27.00 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 15298

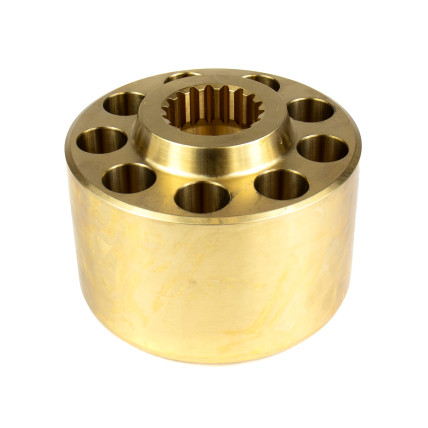

Spare part: Cylinder block Rotor Liebherr LPVD64, FMF64 SKS Part number: Cross-Number: Use in: Liebh..
373.03 $
excl. VAT 310.86 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 8073

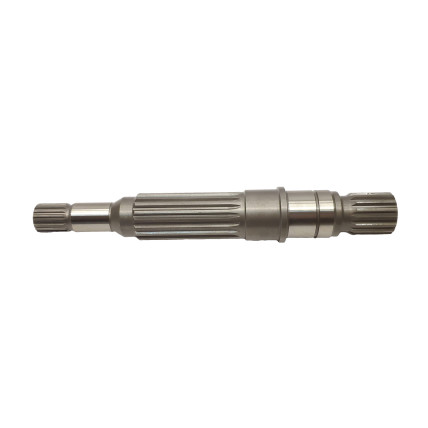

Spare part: Drive Shaft Liebherr LPVD64 L=291 mm, 16T/18T SKS Part number: Cross-Number: Use in: Lie..
175.85 $
excl. VAT 146.54 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9830

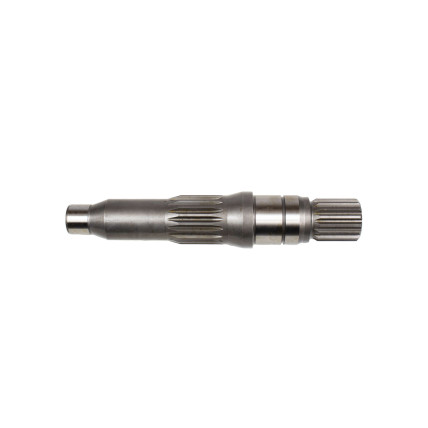

Spare part: Drive Shaft Liebherr LPVD64, FMF64 L=233.5 mm, 16T/0T SKS Part number: Cross-Number: Use..
96.19 $
excl. VAT 80.16 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9698

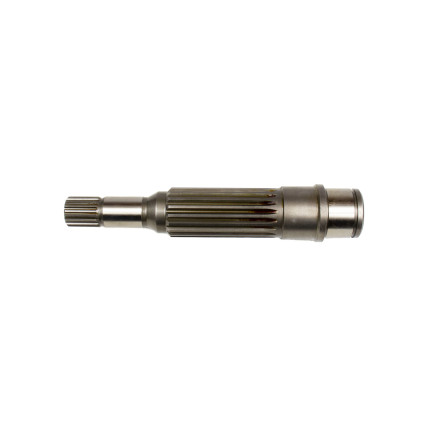

Spare part: Driven Shaft Liebherr LPVD64 SKS Part number: Cross-Number: Use in: Liebherr LPVD64 Use ..
104.83 $
excl. VAT 87.36 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15982

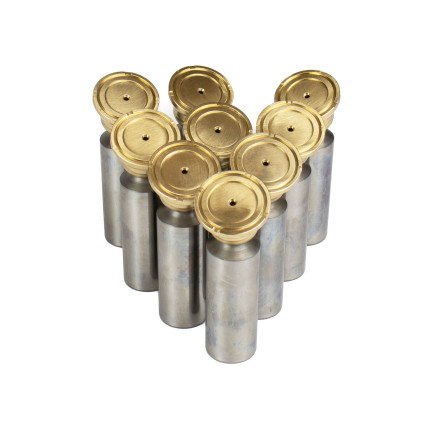

Spare part: Piston shoe Liebherr LPVD64, FMF64 SKS Part number: Cross-Number: Use in: Liebherr LPVD6..
28.93 $
excl. VAT 24.11 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15299

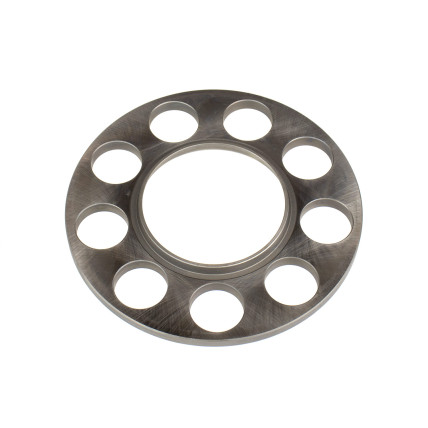

Spare part: Retainer Plate Liebherr 9265067 SKS Part number: 9265067 Cross-Number: Use in: Please ma..
46.18 $
excl. VAT 38.48 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 6902

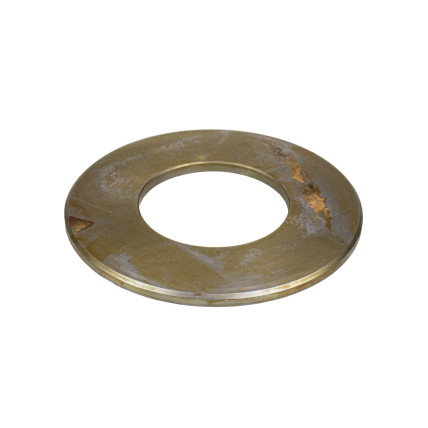

Spare part: Shoe plate Liebherr LPVD64, FMF64 HANDOK Part number: Cross-Number: Use in: Liebherr LPV..
36.56 $
excl. VAT 30.47 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 17054

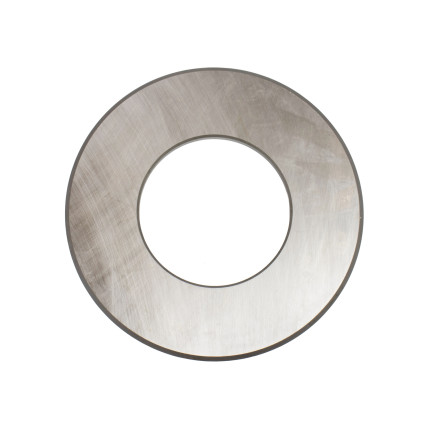

Spare part: Shoe plate Liebherr LPVD64, FMF64 SKS
Part number:
Cross-Number:
Use in: Lieb..
50.89 $
excl. VAT 42.41 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8068

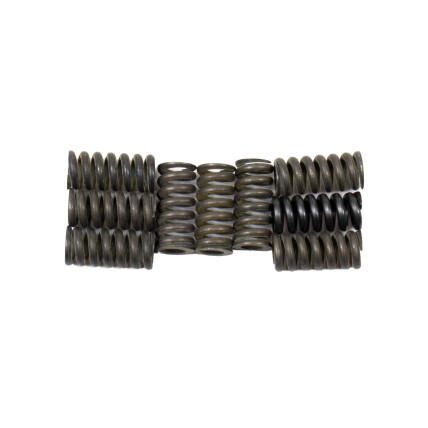

Spare part: Spring of Rotor Liebherr LPVD64 SKS Part number: Cross-Number: Use in: Liebherr LPVD64 U..
5.14 $
excl. VAT 4.28 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 8070

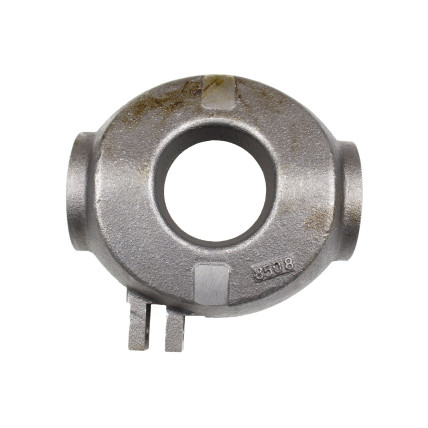

Spare part: Swash plate (Cam rocker) Liebherr 9277185 SKS Part number: 9277185 Cross-Number: Use in:..
170.41 $
excl. VAT 142.01 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 6903

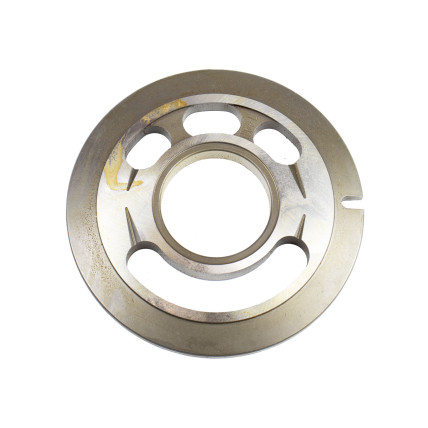

Spare part: Valve plate Left Liebherr LPVD64 HANDOK Part number: Cross-Number: Use in: Liebherr LPVD..
95.26 $
excl. VAT 79.38 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Liebherr LPVD64 hydraulic pump
The Liebherr LPVD64 hydraulic pump is a variable displacement axial piston pump designed for open-circuit hydraulic systems. It provides efficient power transmission, precise flow control and reliable operation under difficult operating conditions, making it suitable for use in heavy machinery.
Technical characteristics of the Liebherr LPVD64 hydraulic pump:
- Type: variable displacement hydraulic pump
- Design: axial piston (axial arrangement of pistons), adjustable volume, with inclined washer
- Displacement: 64 cm3/rev
- Maximum operating pressure: up to 400 bar
- Peak pressure: up to 420 bar
- Maximum rotation speed: up to 3,000 rpm
- Adjustment: hydraulic or electro-hydraulic
- Rotation direction: CW or CCW
- Weight: 30–33 kg
- Installation type: flange connection, standard dimensions for installation on special equipment
- Drive shaft: splined or conical, depending on the order
Application of Liebherr LPVD64 hydraulic pump:
- Wheeled and tracked excavators
- Loaders and bulldozers
- Cranes, drilling rigs
- Specialized construction and quarry equipment
- Hydraulic systems with high requirements for precision control of hydraulic fluid flow
Hydraulic pump cross number: 9880153, 9277511, 9278369, 9277687, 9266034, 9267820, 9274794, 9277501
Installed in the model: Liebherr A900 Li, A912
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Liebherr LPVD64 hydraulic pump.
