Vendor code:
Model: 15265

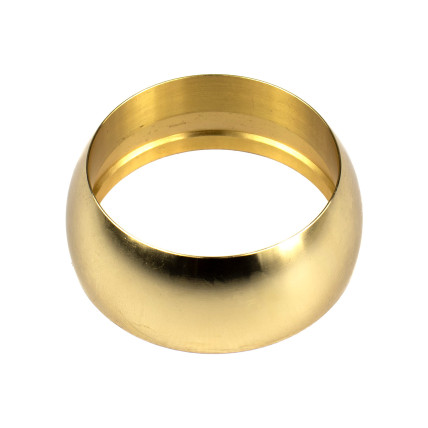

Spare part: Ball guide Caterpillar 122-5114 SKS Part number: 122-5114 Cross-Number: 173-3427 Use in:..
48.17 $
excl. VAT 40.14 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15263
Spare part: Piston shoe Caterpillar 147-5860 SKS Part number: 147-5860 Cross-Number: Use in: Please ..
26.80 $
excl. VAT 22.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15267

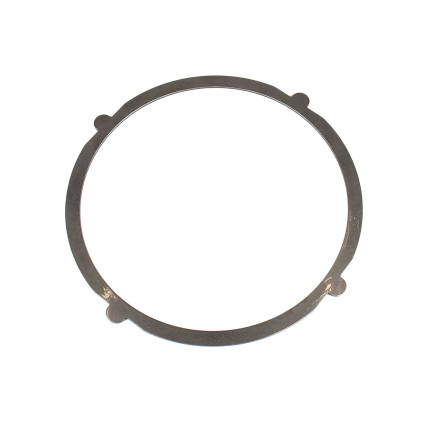

Spare part: Separation Plate Caterpillar 107-6955 SKS Part number: 107-6955 Cross-Number: Use in: Pl..
21.60 $
excl. VAT 18.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15262

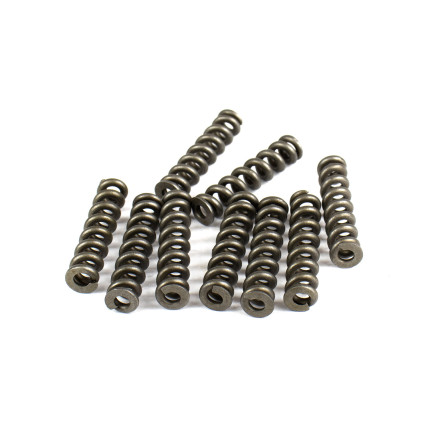

Spare part: Spring of Rotor Caterpillar MCB172, PSV450, AP12, AP14 SKS Part number: Cross-Number: Us..
5.14 $
excl. VAT 4.28 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 15268

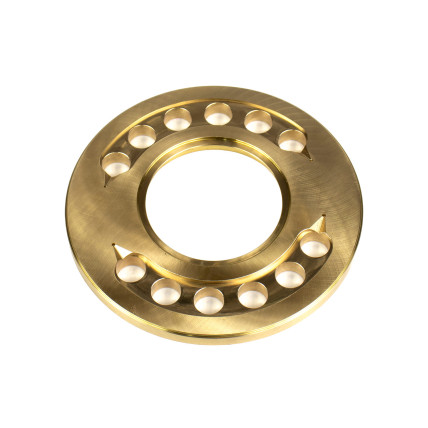

Spare part: Valve plate Motor Caterpillar 133-6777 SKS Part number: 133-6777 Cross-Number: Use in: P..
123.55 $
excl. VAT 102.96 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15266
Pre-Order

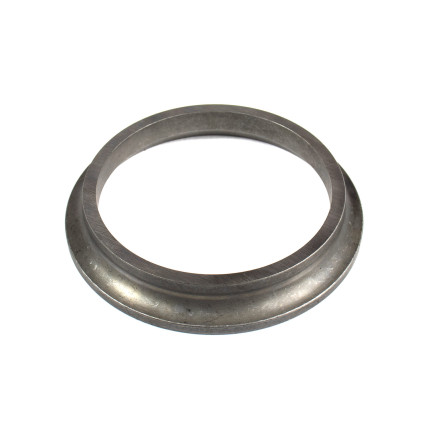

Spare part: Ball Guide Washer Caterpillar 7Y-4215 SKS Part number: 7Y-4215 Cross-Number: Use in: Ple..
16.87 $
excl. VAT 14.06 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 15261
Pre-Order

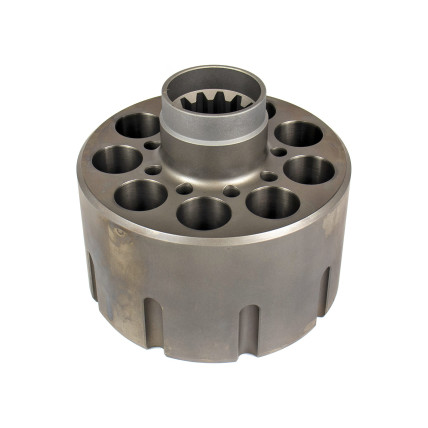

Spare part: Cylinder block Rotor Caterpillar 133-6777 SKS Part number: 133-6777 Cross-Number: Use in..
390.17 $
excl. VAT 325.14 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 17895
Pre-Order

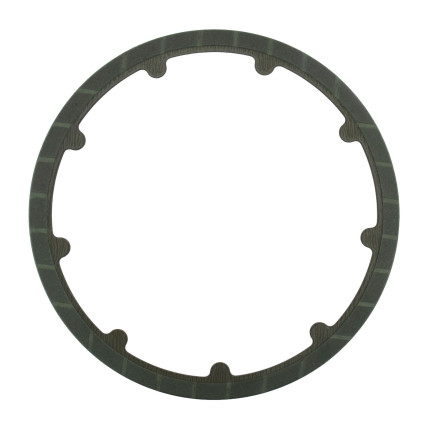

Spare part: Friction Plate Caterpillar 107-6954 SKS
Part number: 107-6954
Cross-Number:
U..
23.88 $
excl. VAT 19.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15264
Pre-Order
Spare part: Retainer Plate Caterpillar 122-5114 SKS Part number: 122-5114 Cross-Number: Use in: Plea..
47.88 $
excl. VAT 39.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Caterpillar CAT 320 TRAVEL engine
The Caterpillar 320 excavator's travel motor (also known as the CAT 320 Travel Motor) is responsible for moving the machine and ensuring its mobility, efficient and reliable operation, allowing it to move around the construction site with the necessary speed and maneuverability.
Technical specifications of Caterpillar CAT 320 Travel Motor:
- Type: Planetary hydraulic motor with piston mechanism.
- Displacement: 85 cm³.
- Maximum working pressure: 350 bar.
- Maximum torque: 8,500 N m.
- Maximum rotation speed: 1500 rpm.
- Materials: high-strength steel body, pistons with anti-corrosion coating.
- Diameter in the machine frame: 330 mm
- Number of holes in the machine frame: 16
- Number of holes in the drive wheel: 16
- Number of hydraulic hoses: 3 or 4
- Drive sprocket diameter: 350 mm
- Design features: reinforced seals that minimize leaks and ensure long-term, trouble-free operation.
- Working medium: hydraulic fluids based on mineral oils with additional additives to increase wear resistance.
Hydraulic motor cross number : 137-3722, 107-7029, 185-6953, 209-5994, 209-5992, 197-7180, 197-7180
Installed in Caterpillar excavator models: Excavator 320C travel motor parts, Caterpillar Excavator 318B N travel motor parts, Caterpillar Excavator 318B travel motor parts, Caterpillar Excavator 322C travel motor parts, Caterpillar Excavator 320C FM travel motor parts, Caterpillar Excavator 318C travel motor parts, Caterpillar Excavator 318E L travel motor parts, Caterpillar Excavator 318F L travel motor parts, Caterpillar Excavator 319D LN travel motor parts, Caterpillar Excavator 319D L travel motor parts, Caterpillar Excavator 320 GC travel motor parts, Caterpillar Excavator 320D FM travel motor parts, Caterpillar Excavator 320D LRR travel motor parts, Caterpillar Excavator 320D L travel motor parts, Caterpillar Excavator 320D travel motor parts, Caterpillar Excavator 320E LN travel motor parts, Caterpillar Excavator 320E LRR travel motor parts, Caterpillar Excavator 320E L travel motor parts, Caterpillar Excavator 320 travel motor parts, Caterpillar Excavator 321D LCR travel motor parts, Caterpillar Excavator 323D LN travel motor parts, Caterpillar Excavator 323D L travel motor parts, Caterpillar Excavator 323D travel motor parts, Caterpillar Excavator 323E LN travel motor parts, Caterpillar Excavator 323E L travel motor parts, Caterpillar Excavator 323F travel motor parts, Caterpillar Excavator 323 travel motor parts, Caterpillar Excavator 324D L travel motor parts, Caterpillar Excavator 324D travel motor parts, Caterpillar Excavator 324E LN travel motor parts, Caterpillar Excavator 324E L travel motor parts, Caterpillar Excavator 325F travel motor parts, Caterpillar Excavator 538 travel motor parts, Caterpillar Excavator 318F travel motor parts, Caterpillar Excavator 319C travel motor parts, Caterpillar Excavator 320B FM LL travel motor parts, Caterpillar Excavator 320B LL travel motor parts, Caterpillar Excavator 320B L travel motor parts, Caterpillar Excavator 320B N travel motor parts, Caterpillar Excavator 320B S travel motor parts, Caterpillar Excavator 320B travel motor parts, Caterpillar Excavator 320D GC travel motor parts, Caterpillar Excavator 320D LN travel motor parts, Caterpillar Excavator 320D RR travel motor parts, Caterpillar Excavator 320D2 FM travel motor parts, Caterpillar Excavator 320E RR travel motor parts, Caterpillar Excavator 320E travel motor parts, Caterpillar Excavator 321C travel motor parts, Caterpillar Excavator 322B LN travel motor parts, Caterpillar Excavator 322B L travel motor parts, Caterpillar Excavator 323D SA travel motor parts, Caterpillar Excavator 323E SA travel motor parts, Caterpillar Excavator 323F LN travel motor parts, Caterpillar Excavator 323F L travel motor parts, Caterpillar Excavator 323F OEM travel motor parts, Caterpillar Excavator 323F SA travel motor parts, Caterpillar Excavator 324D LN travel motor parts, Caterpillar Excavator 324E travel motor parts, Caterpillar Excavator 325 L travel motor parts, Caterpillar Excavator 325-AL travel motor parts, Caterpillar Excavator 325-A travel motor parts, Caterpillar Excavator 325B LN travel motor parts Caterpillar Excavator 325B L travel motor parts motor parts, Caterpillar Excavator 329D travel motor parts, Caterpillar Excavator 329E L travel motor parts, Caterpillar Excavator 329E travel motor parts, Caterpillar Excavator 330B LN travel motor parts, Caterpillar Excavator 330B L travel motor parts, Caterpillar Excavator 319D travel motor parts, Caterpillar Excavator 320D FM RR travel motor parts, Caterpillar Excavator 320D2 L travel motor parts, Caterpillar Excavator 320D2 travel motor parts, Caterpillar Excavator 320F L travel motor parts, Caterpillar Excavator 322 L travel motor parts, Caterpillar Excavator 322-AL travel motor parts, Caterpillar Excavator 323D2 L travel motor parts, Caterpillar Excavator 323D2 travel motor parts, Caterpillar Excavator 323GC travel motor parts, Caterpillar Excavator 326D2 L travel motor parts, Caterpillar Excavator 326D2 travel motor parts, Caterpillar Excavator 326GC travel motor parts, Caterpillar Excavator 329D2 L travel motor parts, Caterpillar Excavator 329D2 travel motor parts, Caterpillar Excavator 329F L travel motor parts, Caterpillar Excavator 330 GC travel motor parts, Caterpillar Excavator 330D2 L travel motor parts, Caterpillar Excavator 330D2 travel motor parts, Caterpillar Excavator 330F L travel motor parts, Caterpillar Excavator 330F travel motor parts
The company "Aspect Plus" offers a wide range of spare parts for repairing the Caterpillar CAT 320 TRAVEL hydraulic motor.
