Sort By:
Most Viewed
Vendor code:
Model: 9486
Spare part: Bearing Linde 0009247305 SKS Part number: 0009247305 Cross-Number: 9509000818 Use in: Pl..
35.75 $
excl. VAT 29.79 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9703
Spare part: Bearing Linde 0009247333 SKS Part number: 0009247333 Cross-Number: Use in: Please make s..
99.50 $
excl. VAT 82.92 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17308
Spare part: Charge Pump Linde 5803001058 SKS Part number: 5803001058 Cross-Number: 5803001058, 58030..
786.48 $
excl. VAT 655.40 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 13950
Spare part: Charge pump Linde 5813001060 SKS
Part number: 5813001060
Cross-Number:
Use in..
786.47 $
excl. VAT 655.39 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 9679
Spare part: Coupling of drive Shaft Linde 5813061901 SKS Part number: 5813061901 Cross-Number: Use i..
85.20 $
excl. VAT 71.00 $
Couplings:
Couplings
Most Viewed
Vendor code:
Model: 9680
Spare part: Cylinder block Rotor Linde 2943200801 piston hole flat SKS Part number: 2943200801 Cross..
475.64 $
excl. VAT 396.37 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9678

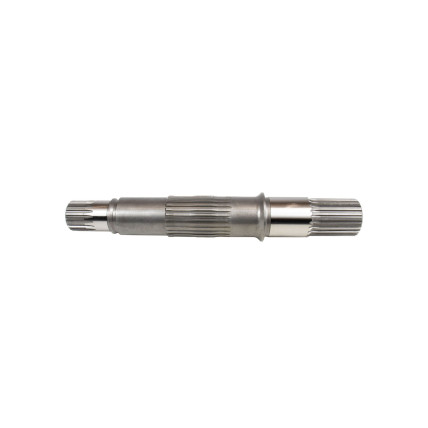

Spare part: Drive Shaft Linde 2643230102 SKS Part number: 2643230102 Cross-Number: 2643230115 Use in..
196.04 $
excl. VAT 163.37 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 12976
Spare part: Fix Plate of Retainer Plate Linde 5063431803 SKS Part number: 5063431803 Cross-Number: 2..
98.92 $
excl. VAT 82.43 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9636
Spare part: Flange Linde 2002324700 SKS Part number: 2002324700 Cross-Number: Use in: Please make su..
180.29 $
excl. VAT 150.24 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9653
Spare part: Piston shoe Linde 2643200412 SKS Part number: 2643200412 Cross-Number: 2643200411 Use in..
32.62 $
excl. VAT 27.18 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11235
Spare part: Retainer Plate Linde 2643231402 SKS Part number: 2643231402 Cross-Number: Use in: Please..
61.72 $
excl. VAT 51.43 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Top
Most Viewed
Vendor code:
Model: 9817
Spare part: Sliding Bearing Linde 0009234032 SKS Part number: 0009234032 Cross-Number: 0009234032, 0..
42.72 $
excl. VAT 35.60 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17625
Spare part: Socket Pin Linde HPV55-02, HPR55-02, HMV55-02, HMR75-02, HMV75-02, HPR75-02, HPV75-02, H..
5.51 $
excl. VAT 4.59 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 12322
Spare part: Swash plate (Cam rocker) Linde 2643232007 SKS Part number: 2643232007 Cross-Number: 2643..
288.61 $
excl. VAT 240.51 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9580
Pre-Order

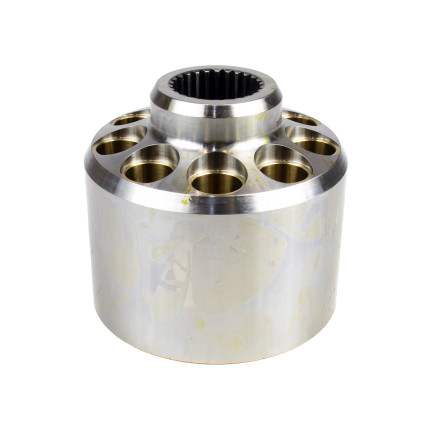

Spare part: Cylinder block Rotor Linde 2943200801 piston hole conical SKS Part number: 2943200801 Cr..
349.90 $
excl. VAT 291.58 $
Main hydraulic units:
Main hydraulic units
Characteristics of the Linde HPV105-02 hydraulic pump
The Linde HPV105-02 hydraulic pump is a variable displacement axial piston pump designed for operation in closed hydrostatic systems. It is widely used in mobile machinery, including asphalt pavers, wheel loaders and other equipment where precise and reliable power transmission is required.
Technical characteristics of the Linde HPV105-02 hydraulic pump:
- Type: Variable displacement axial piston pump
- Displacement: 105 cm3/rev
- Maximum pressure: Up to 500 bar
- Nominal pressure: Up to 450 bar
- Maximum rotation speed: Up to 3400 rpm
- Temperature range: From -25°C to +90°C
- Control system: Mechanical, hydraulic or electro-hydraulic control
- Weight: ~66 kg
The Linde HPV105-02 variable displacement hydraulic pump has the following features and advantages:
- High power in a compact size
- Reliability and durability
- The hydrostatic bearing support ring ensures even load distribution, reducing wear.
- Integrated high and low pressure valves with make-up function ensure stable system operation.
- Removable cartridge filter simplifies maintenance.
- Precise and load-independent control
- The control system provides the same response to commands regardless of the load, which increases the accuracy of machine control.
- Available control options: mechanical (M1R), hydraulic (H1), electro-hydraulic (E1, E2, E5) and others.
- Flexibility in installation
- Ability to rotate in both directions (clockwise and counterclockwise).
- Various mounting flange and shaft options (SAE and ANSI).
- Possibility of installing additional pumps through a through shaft.
- Noise optimization and energy efficiency
- The pump design is optimized to reduce pulsations and noise.
- High energy efficiency thanks to precise flow and pressure regulation.
Hydraulic pump cross number: 2943200801, 0009216247, 2643231402, 2643200412, 2643200411, 2643240222, 2643240223, 2643230115, 2643230102, 2643230502, 2643232022, 2643232007, 0009234032, 0009080261, 0009143614, 2643431803, 2643431804, 2543014003, 5063450401, 2643051206, 0009247333, 9509000776, 5813001060, 0009280393, 2643209903, 2643209900, 2643209901, 2643209908
Installed in the model: PR724 ECOLOG 574B
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Linde HPV105-02 hydraulic pump.
