M2X210

Sort By:

Most Viewed

Ball guide Kawasaki 0365407 SKS

Vendor code:

Model: 10898

In stock

Brand:: SKS Hydraulic

Spare part: Ball guide Kawasaki 0365407 SKS Part number: 0365407 Cross-Number: K9004571, 26031 Use i..

50.02 $ excl. VAT 41.68 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Washer Kawasaki 0365410 HANDOK

Vendor code:

Model: 3067

In stock

Brand:: HANDOK

Spare part: Ball guide Washer Kawasaki 0365410 HANDOK Part number: 0365410 Cross-Number: K9004558 Us..

6.20 $ excl. VAT 5.17 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

Ball Guide Washer Kawasaki 0365410 SKS

Vendor code:

Model: 10899

In stock

Brand:: SKS Hydraulic

Spare part: Ball Guide Washer Kawasaki 0365410 SKS Part number: 0365410 Cross-Number: K9004558 Use i..

7.01 $ excl. VAT 5.84 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

Bearing Kawasaki 0365324 SNR

Vendor code:

Model: 3817

In stock

Brand:: NTN

Spare part: Bearing Kawasaki 0365324 SNR Part number: 0365324 Cross-Number: Use in: Please make sure..

34.08 $ excl. VAT 28.40 $

Oil seals, bearings, gears of hydraulic pumps and motors: Oil seals, bearings, gears of hydraulic pumps and motors

Most Viewed

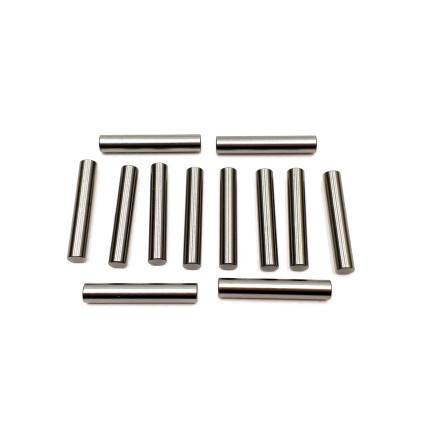

Cylinder block press Pin Kawasaki 0365409 SKS

Vendor code:

Model: 11969

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block press Pin Kawasaki 0365409 SKS Part number: 0365409 Cross-Number: K900456..

2.71 $ excl. VAT 2.26 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

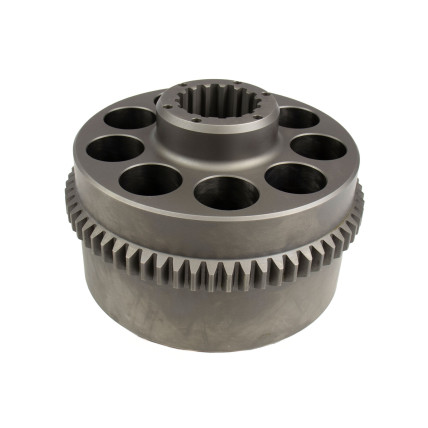

Cylinder block Rotor Kawasaki 0803004 HANDOK

Vendor code:

Model: 4022

In stock

Brand:: HANDOK

Spare part: Cylinder block Rotor Kawasaki 0803004 HANDOK Part number: 0803004 Cross-Number: 0496104 ..

303.18 $ excl. VAT 252.65 $

Main hydraulic units: Main hydraulic units

Most Viewed

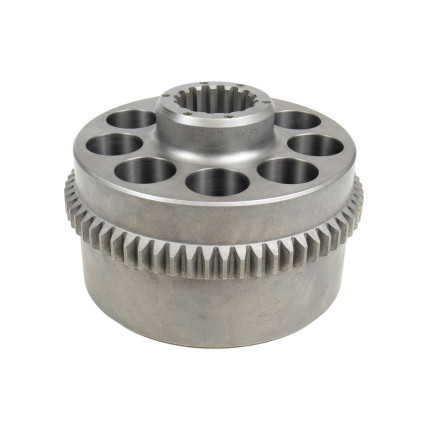

Cylinder block Rotor Kawasaki 0803004 SKS

Vendor code:

Model: 10894

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block Rotor Kawasaki 0803004 SKS Part number: 0803004 Cross-Number: 0496104 Use..

335.87 $ excl. VAT 279.89 $

Main hydraulic units: Main hydraulic units

Most Viewed

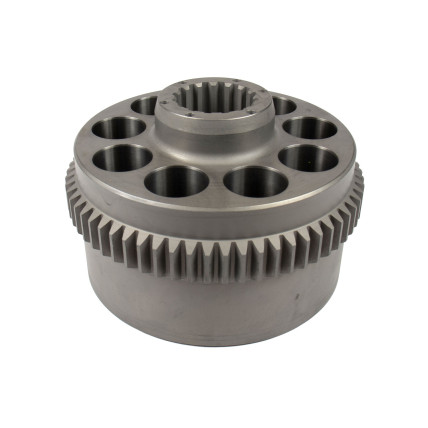

Cylinder block Rotor Kawasaki M2X210 SKS

Vendor code:

Model: 16285

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block Rotor Kawasaki M2X210 SKS Part number: Cross-Number: Use in: Kawasaki M2X..

362.81 $ excl. VAT 302.34 $

Main hydraulic units: Main hydraulic units

Most Viewed

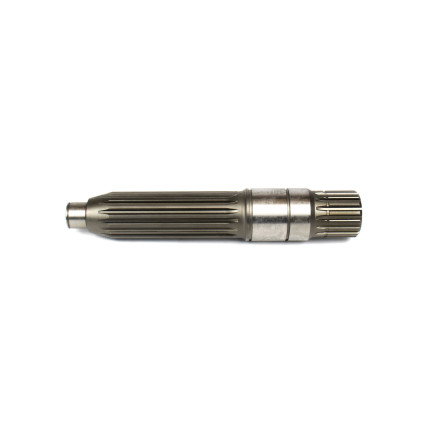

Drive Shaft motor Kawasaki 0803003 HANDOK

Vendor code:

Model: 4023

In stock

Brand:: HANDOK

Spare part: Drive Shaft motor Kawasaki 0803003 HANDOK Part number: 0803003 Cross-Number: 0365404 Use..

113.70 $ excl. VAT 94.75 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

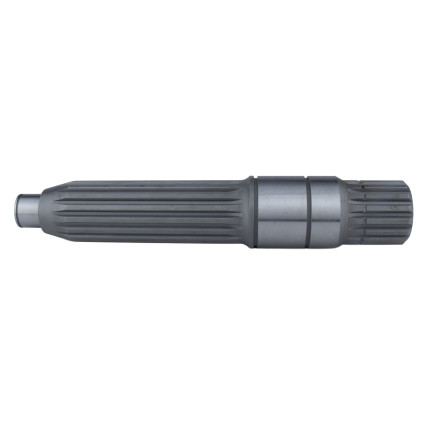

Drive Shaft motor Kawasaki 0803003 SKS

Vendor code:

Model: 17858

In stock

Brand:: SKS Hydraulic

Spare part: Drive Shaft motor Kawasaki 0803003 SKS Part number: 0803003 Cross-Number: 036540..

163.08 $ excl. VAT 135.90 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

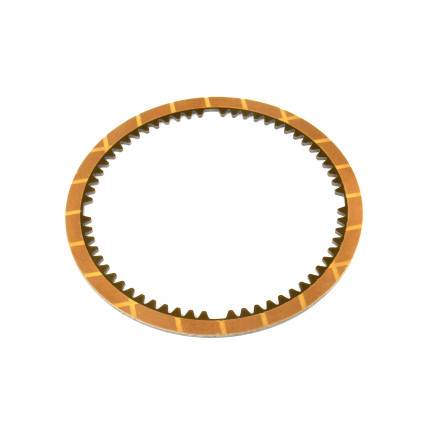

Friction plate Kawasaki 0365428 HANDOK

Vendor code:

Model: 8349

In stock

Brand:: HANDOK

Spare part: Friction plate Kawasaki 0365428 HANDOK Part number: 0365428 Cross-Number: Use in: Please..

33.80 $ excl. VAT 28.17 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

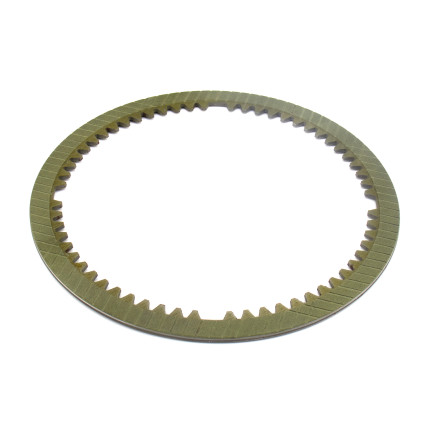

Friction plate Kawasaki 0365428 SKS

Vendor code:

Model: 17351

In stock

Brand:: SKS Hydraulic

Spare part: Friction plate Kawasaki 0365428 SKS Part number: 0365428 Cross-Number: Use in..

43.20 $ excl. VAT 36.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

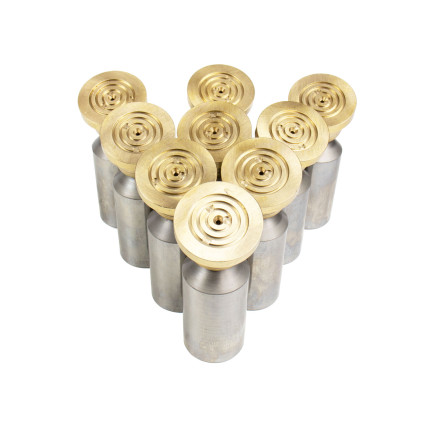

Piston shoe Kawasaki 0983304 SKS

Vendor code:

Model: 10897

In stock

Brand:: SKS Hydraulic

Spare part: Piston shoe Kawasaki 0983304 SKS Part number: 0983304 Cross-Number: K9004568, 0365401, 2..

32.17 $ excl. VAT 26.81 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

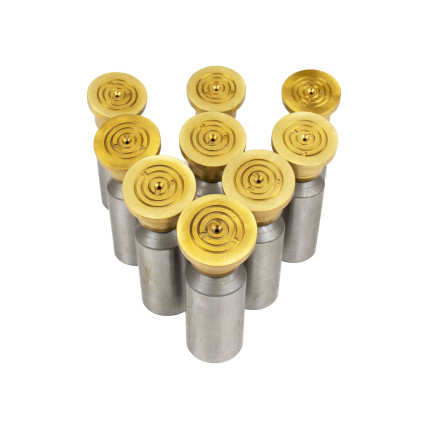

Piston shoe Kawasaki K9004568 HANDOK

Vendor code:

Model: 3064

In stock

Brand:: HANDOK

Spare part: Piston shoe Kawasaki K9004568 HANDOK Part number: K9004568 Cross-Number: 0983304, 036540..

28.15 $ excl. VAT 23.46 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Retainer Plate Kawasaki K9004555 HANDOK

Vendor code:

Model: 3065

In stock

Brand:: HANDOK

Spare part: Retainer Plate Kawasaki K9004555 HANDOK Part number: K9004555 Cross-Number: 0803005, 036..

43.02 $ excl. VAT 35.85 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Kawasaki M2X210 hydraulic motor specifications

The Kawasaki M2X210 hydraulic motor is a fixed displacement, swashplate axial piston motor designed for medium to large excavator slewing drives. It is part of the M2X series, which includes models with displacements from 63 to 210 cc.

Technical specifications of the Kawasaki M2X210 hydraulic motor:

Type: Fixed displacement axial piston motor with swash plate
Displacement: 210 cm³/rev
Maximum working pressure: 29.4 MPa (294 bar)
Maximum torque: up to 20,000 N m
Maximum rotation speed: up to 2,200 rpm
Brake release pressure: 2.3 MPa (maximum allowable - 4.9 MPa)

Design features of the Kawasaki M2X210 hydraulic motor:

Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
High efficiency: Optimized design ensures stable operation under high loads.
Reliability: Built-in valves provide overload protection and stable system operation.

Hydraulic motor cross number: 4371768, 4637117

Installed in the model:

Hitachi: EX300-5 EX345USR(LC) EX350H-5 EX370-5M EX385USR ZX870-3
JCB: JS330 JS360 JS460

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X210 hydraulic motor.
