Vendor code:
Model: 15880

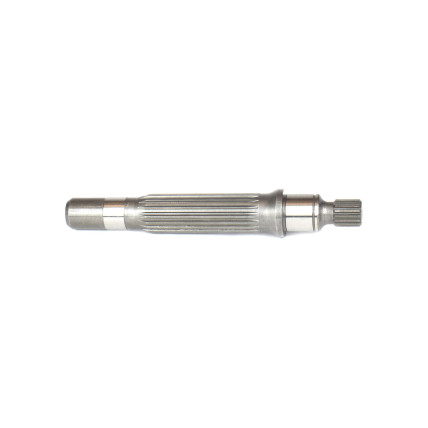

Spare part: Drive shaft Kawasaki 1184408 SKS Part number: 1184408 Cross-Number: Use in: Please make ..
123.83 $
excl. VAT 103.19 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 16527
Spare part: Gear pump Kawasaki 4694758 HANDOK Part number: 4694758 Cross-Number: Use in: Please make..
327.52 $
excl. VAT 272.93 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 15881

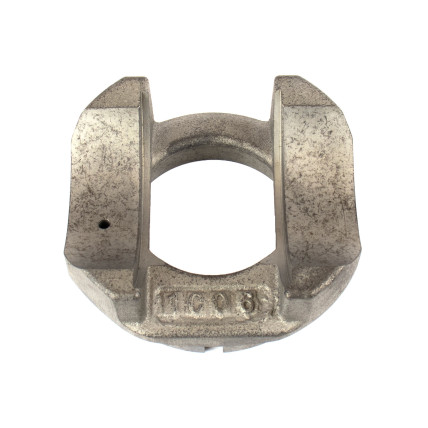

Spare part: Support Kawasaki 1184414 SKS Part number: 1184414 Cross-Number: Use in: Please make sure..
206.05 $
excl. VAT 171.71 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15882

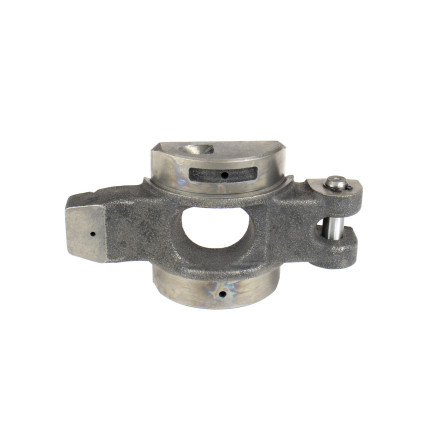

Spare part: Swash plate (Cam rocker) Kawasaki 1184404 SKS Part number: 1184404 Cross-Number: Use in:..
214.46 $
excl. VAT 178.72 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15148
Pre-Order
Spare part: Ball guide Kawasaki 1184413 SKS Part number: 1184413 Cross-Number: Use in: Please make s..
36.62 $
excl. VAT 30.52 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13971
Pre-Order

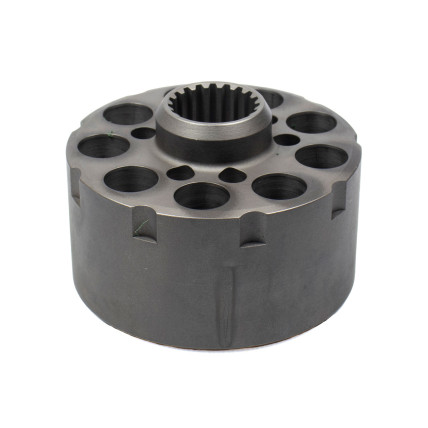

Spare part: Cylinder block Rotor Kawasaki 1184403 SKS Part number: 1184403 Cross-Number: Use in: Ple..
213.86 $
excl. VAT 178.22 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 13973
Pre-Order

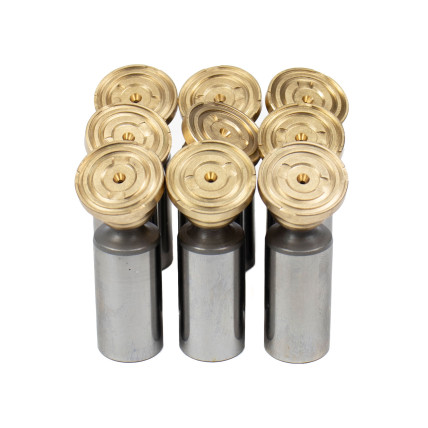

Spare part: Piston shoe Kawasaki 1184402 SKS Part number: 1184402 Cross-Number: Use in: Please make ..
17.65 $
excl. VAT 14.71 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13974
Pre-Order

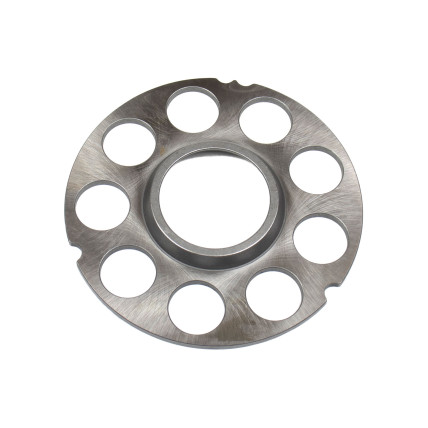

Spare part: Retainer Plate Kawasaki 1184412 SKS Part number: 1184412 Cross-Number: Use in: Please ma..
35.40 $
excl. VAT 29.50 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13970
Pre-Order
Spare part: Spring of Rotor Kawasaki 0818511 SKS Part number: 0818511 Cross-Number: XJBN-00421, 20/9..
2.52 $
excl. VAT 2.10 $
Hydraulic parts other:
Hydraulic parts other
Kawasaki K7V28 hydraulic pump specifications
The Kawasaki K7V28 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mini excavators and other compact equipment.
Technical specifications of the Kawasaki K7V28 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 28 cm3/rev
- Nominal pressure: 35 MPa (343 bar)
- Maximum pressure: 40 MPa (392 bar)
- Maximum rotation speed (self-priming): 2650 rpm
- Weight: approximately 67 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks
Design features of the Kawasaki K7V28 hydraulic pump:
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 4666665, 4706893, YD00002228
Installed in the model: Hitachi ZX70-5A, ZX70-5G, ZX80-GI
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K7V28 hydraulic pump.
