Sort By:
Most Viewed
Vendor code:
Model: 5137
Spare part: Center Pin Disk type Bosch Rexroth R909410254 HANDOK Part number: R909410254 Cross-Numbe..
17.92 $
excl. VAT 14.93 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 14288
Spare part: Center Pin Disk type Bosch Rexroth R909410254 SKS Part number: R909410254 Cross-Number: ..
38.20 $
excl. VAT 31.83 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 10779
Spare part: Cylinder block Rotor Bosch Rexroth 1100228662 SKS Part number: 1100228662 Cross-Number: ..
223.97 $
excl. VAT 186.64 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 14280
Spare part: Disk Spring Bosch Rexroth R909060102 SKS Part number: R909060102 Cross-Number: R90900673..
4.27 $
excl. VAT 3.56 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 5135
Spare part: Holder of Disk Spring Bosch Rexroth R902043502 HANDOK
Part number: R902043502
Cr..
9.80 $
excl. VAT 8.17 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9594
Spare part: Retainer Plate Bosch Rexroth R902072551 SKS Part number: R902072551 Cross-Number: Use in..
37.19 $
excl. VAT 30.99 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12511
Spare part: Valve plate Motor Bosch Rexroth R909921786 SKS Part number: R909921786 Cross-Number: Use..
135.28 $
excl. VAT 112.73 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12866
Pre-Order

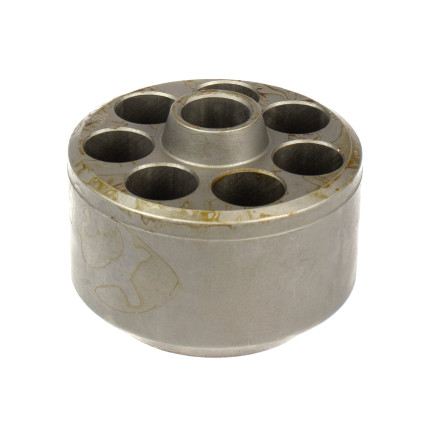

Spare part: Cylinder block Rotor Bosch Rexroth 1100228662 HANDOK Part number: 1100228662 Cross-Num..
170.18 $
excl. VAT 141.82 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 14279
Pre-Order
Spare part: Piston Bosch Rexroth A8V55, A8V59, A6VM59 SKS Part number: Cross-Number: Use in: Bosch R..
39.76 $
excl. VAT 33.13 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 7200
Pre-Order

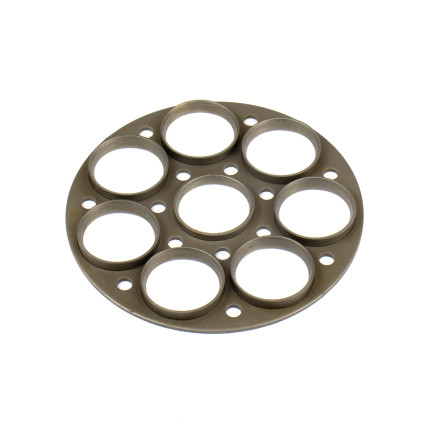

Spare part: Retainer Plate Bosch Rexroth R902072551 HANDOK Part number: R902072551 Cross-Number: Use..
37.74 $
excl. VAT 31.45 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Bosch Rexroth A6VM59 motor
The Bosch Rexroth A6VM59 is a variable displacement axial piston motor that is part of the Rexroth hydraulic components line for mobile and industrial applications. Due to its power, reliability and high load capacity, this motor is widely used in various industries.
Technical specifications of Bosch Rexroth A6VM59:
- Working volume:
- Nominal: 30 cm³
- Maximum: 59 cm³
- Working pressure:
- Nominal: up to 40 MPa 400 bar
- Maximum: up to 45 MPa 450 bar
- Maximum rotation speed: 3600 rpm
- Torque: Up to 380 N m
- Weight: 18–22 kg
- Operating medium: Mineral oils (ISO VG 32–46) or others compatible with HLP/HVLP
- Displacement adjustment: Hydraulic or electro-hydraulic
- Application in special equipment: tracked vehicles, concrete pumps, tractors, combines, sprayers, etc.
Hydraulic motor cross number:
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Bosch Rexroth A6VM59 hydraulic motor.
