Vendor code:
Model: 8091
Spare part: Ball guide Liebherr LPVD100, LPVD107 D=68.0 mm SKS Part number: Cross-Number: Use in: Li..
46.18 $
excl. VAT 38.48 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8092
Spare part: Ball guide Washer Liebherr LPVD100, LPVD107 SKS Part number: Cross-Number: Use in: Liebh..
2.17 $
excl. VAT 1.81 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 11536
Spare part: Bearing Liebherr LPVD100, LPVD107 AFM Part number: Cross-Number: Use in: Liebherr LPVD10..
123.36 $
excl. VAT 102.80 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 8095
Spare part: Bearing Seat Liebherr LPVD100, LPVD107 SKS Part number: Cross-Number: Use in: Liebherr L..
37.72 $
excl. VAT 31.43 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 15192
Spare part: Cylinder block Rotor Liebherr 9073001 flat bottom SKS Part number: 9073001 Cross-Number:..
428.71 $
excl. VAT 357.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 8087
Spare part: Cylinder block Rotor Liebherr 9073001 SKS Part number: 9073001 Cross-Number: Use in: Ple..
428.71 $
excl. VAT 357.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 8086

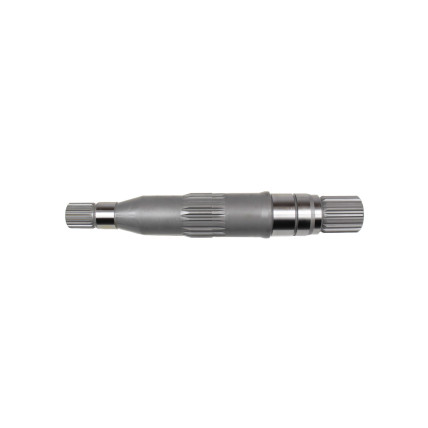

Spare part: Drive Shaft Liebherr 9272427 SKS Part number: 9272427 Cross-Number: Use in: Please make ..
153.16 $
excl. VAT 127.63 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9826

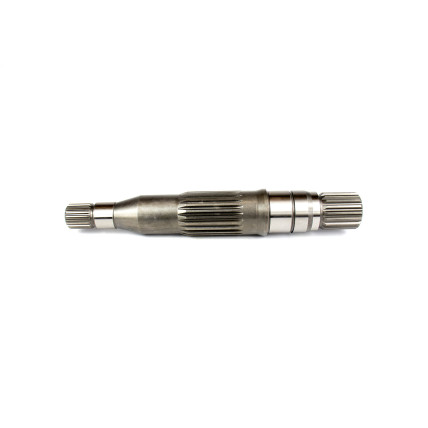

Spare part: Drive Shaft Liebherr LPVD100 SKS Part number: Cross-Number: Use in: Liebherr LPVD100 Use..
153.16 $
excl. VAT 127.63 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9827

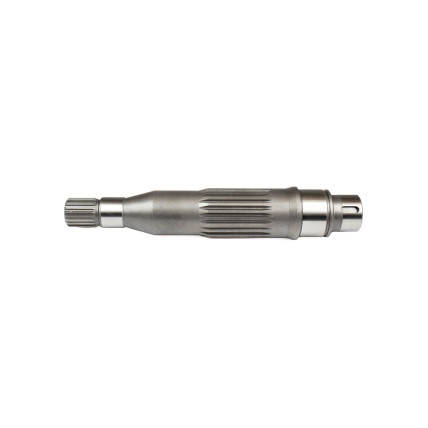

Spare part: Driven Shaft Liebherr LPVD100 L=270.5 mm, 0T/21T SKS Part number: Cross-Number: Use in: ..
153.16 $
excl. VAT 127.63 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9824

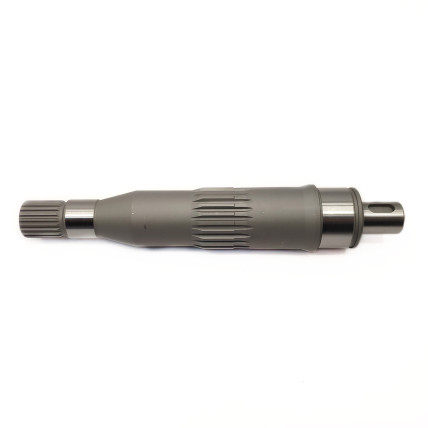

Spare part: Driven Shaft Liebherr LPVD100 L=274.5 mm, 0T/21T SKS Part number: Cross-Number: Use in: ..
153.16 $
excl. VAT 127.63 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 8090
Spare part: Retainer Plate Liebherr LPVD100, LPVD107 ID=66.2 mm SKS Part number: Cross-Number: Use i..
63.31 $
excl. VAT 52.76 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12508

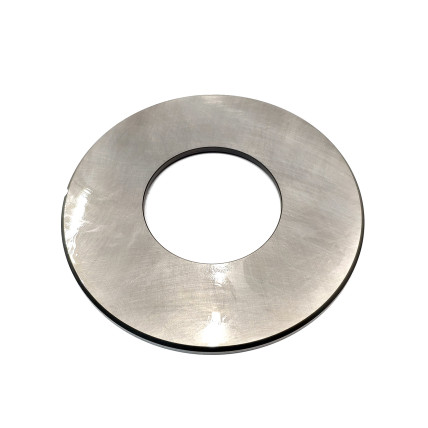

Spare part: Shoe plate Liebherr LPVD100, LPVD107 SKS Part number: Cross-Number: Use in: Liebherr LPV..
57.71 $
excl. VAT 48.09 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 8084

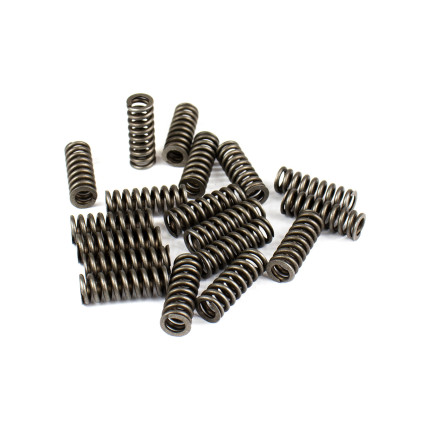

Spare part: Spring of Ball guide Liebherr LPVD100 SKS Part number: Cross-Number: Use in: Liebherr LP..
2.57 $
excl. VAT 2.14 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 9819
Spare part: Spring of Ball guide Liebherr LPVD100, LPVD107 SKS Part number: Cross-Number: Use in: Li..
2.99 $
excl. VAT 2.49 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 11031
Spare part: Swing Pin Liebherr LPVD100, LPVD107 SKS Part number: Cross-Number: Use in: Liebherr LPVD..
14.58 $
excl. VAT 12.15 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Characteristics of the Liebherr LPVD100 hydraulic pump
The Liebherr LPVD100 hydraulic pump is a variable displacement axial piston pump designed for operation in open hydraulic circuit systems. It is part of the reliable LPVD series, which is widely used in construction, quarrying and road construction machinery due to its high performance and adaptability to difficult operating conditions.
Technical characteristics of the Liebherr LPVD100 hydraulic pump:
- Type: variable displacement hydraulic pump
- Design: axial piston (with inclined washer), for open circuit
- Displacement: 100 cm3/rev
- Maximum operating pressure: up to 400 bar
- Peak pressure: up to 420 bar
- Maximum rotation speed: approximately 2,600 rpm
- Adjustment type: hydraulic or electro-hydraulic
- Rotation direction: CW or CCW
- Weight: approximately 50–55 kg
- Mounting type: flange connection, standard drive (spline or conical shaft)
Application of Liebherr LPVD100 hydraulic pump:
- Medium and large class excavators
- Wheel and crawler loaders
- Road and specialized construction equipment
- Industrial mobile installations
- Machines with variable flow requirements and high operating pressure
Hydraulic pump cross number: 9277066, 9278403, 9276574, 9880172, 9072615A, 9880171, 9887534, 9881849, 9272905, 9276575, 9880138, 9270041, 9880171
Installed in the model: Liebherr A912, A914, A922, R914, R922
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Liebherr LPVD100 hydraulic pump.
