Sort By:
Most Viewed
Vendor code:
Model: 9486
Spare part: Bearing Linde 0009247305 SKS Part number: 0009247305 Cross-Number: 9509000818 Use in: Pl..
35.75 $
excl. VAT 29.79 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9703

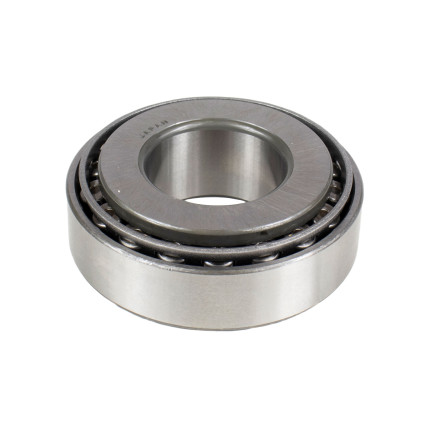

Spare part: Bearing Linde 0009247333 SKS Part number: 0009247333 Cross-Number: Use in: Please make s..
99.50 $
excl. VAT 82.92 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9636

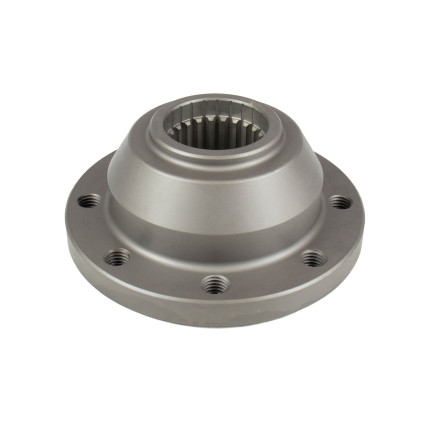

Spare part: Flange Linde 2002324700 SKS Part number: 2002324700 Cross-Number: Use in: Please make su..
180.29 $
excl. VAT 150.24 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9653

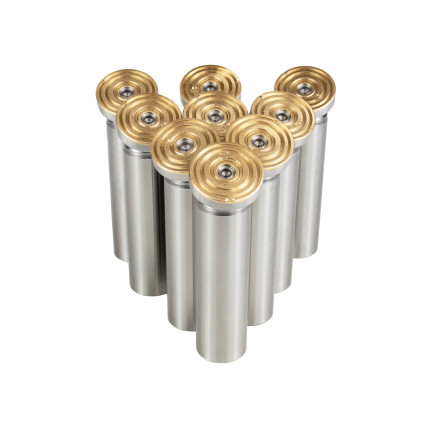

Spare part: Piston shoe Linde 2643200412 SKS Part number: 2643200412 Cross-Number: 2643200411 Use in..
32.62 $
excl. VAT 27.18 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9681

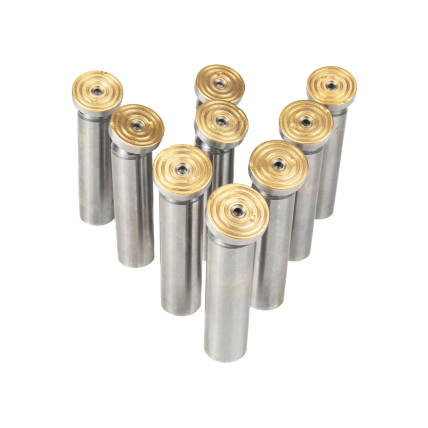

Spare part: Piston shoe Linde HMF105-02, HMV105-02, HMR105-02, HPF105-02 SKS Part number: Cross-Numb..
36.42 $
excl. VAT 30.35 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9632
Spare part: Retainer Plate Linde 2943231402 SKS Part number: 2943231402 Cross-Number: Use in: Please..
55.90 $
excl. VAT 46.58 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9634

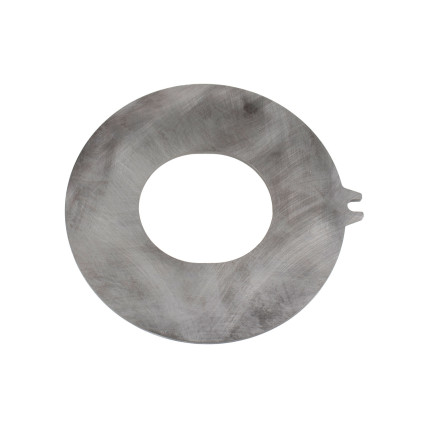

Spare part: Shoe plate Linde 2943435104 SKS Part number: 2943435104 Cross-Number: Use in: Please mak..
64.56 $
excl. VAT 53.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9633
Spare part: Valve plate Motor Linde 2943240206 SKS Part number: 2943240206 Cross-Number: Use in: Ple..
87.49 $
excl. VAT 72.91 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9651
Pre-Order

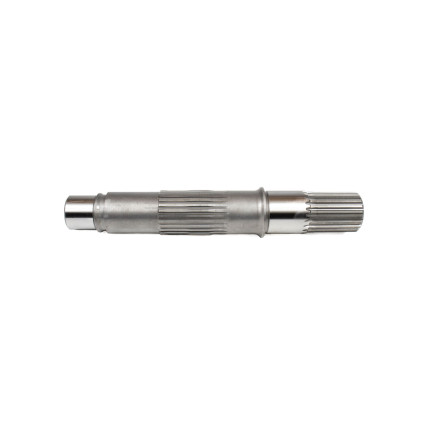

Spare part: Drive Shaft Linde 2943230105 SKS Part number: 2943230105 Cross-Number: 2343230110 Use in..
232.52 $
excl. VAT 193.77 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9635
Pre-Order

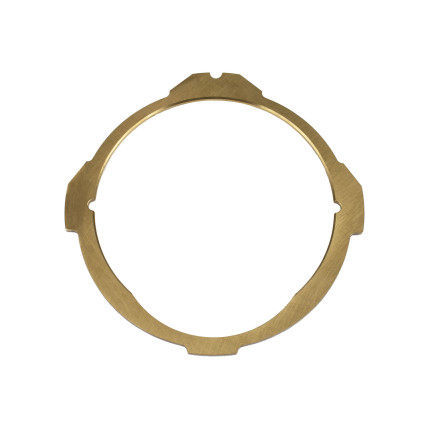

Spare part: Fix Plate of Retainer Plate Linde 2943233112 SKS Part number: 2943233112 Cross-Number: 2..
72.12 $
excl. VAT 60.10 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Top
Most Viewed
Vendor code:
Model: 9874
Pre-Order

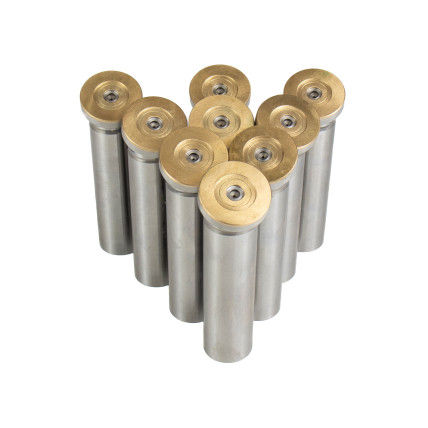

Spare part: Piston shoe Linde 2343200430 SKS Part number: 2343200430 Cross-Number: Use in: Please ma..
36.50 $
excl. VAT 30.42 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Linde HMF105-02 hydraulic motor
The Linde HMF105-02 hydraulic motor is a fixed displacement axial piston motor designed for high-load applications. This model is part of the HMF-02 series from Linde Hydraulics, which is known for its reliability and efficiency.
Technical specifications of the Linde HMF105-02 hydraulic motor:
- Motor type: Axial piston with fixed displacement
- Construction: Bent axle
- Displacement: 105 cm3/rev
- Maximum rotation speed: 3500 rpm
- Maximum speed (short-term): 3800 rpm
- Nominal working pressure: 450 bar
- Maximum pressure (short-term): 500 bar
- Output torque (at ?p=430 bar): 780 N m
- Power at angular speed: 207 kW
- Direction of rotation: Bidirectional
- Shaft type: Splined
- Mounting flange: SAE J744 standard
- Porting: According to ISO 6149
- Coating: Anti-corrosion oil (default)
- Weight: ~33 kg
These characteristics make the Linde HMF105-02 fixed displacement hydraulic motor suitable for applications where high power is required in a compact size.
Hydraulic motor cross number: 2943200801, 0009143902, 2943231402, 2343200430, 2643200412, 2643200411, 2943233112, 2943233111, 2943233110, 2943233109, 2943233108, 2943435104, 2943240206, 2943230105, 2943230109, 2943230501, 0009247333, 9509000818, 0009280393
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMF105-02 hydraulic motor.
