Vendor code:
Model: 15255
Spare part: Ball guide Toshiba PVC80, PVC8080, PVB92 SKS Part number: Cross-Number: Use in: Toshiba ..
66.55 $
excl. VAT 55.46 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15251
Spare part: Cylinder block Rotor Toshiba PVC80, PVC8080 SKS Part number: Cross-Number: Use in: Toshi..
467.77 $
excl. VAT 389.81 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15252
Spare part: Cylinder block Rotor Toshiba PVC80, PVC8080, PVB92 SKS Part number: Cross-Number: Use in..
367.07 $
excl. VAT 305.89 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15257
Spare part: Drive Shaft motor Toshiba PVC80, PVC8080 SKS Part number: Cross-Number: Use in: Toshiba ..
164.98 $
excl. VAT 137.48 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15256
Spare part: Drive Shaft motor Toshiba PVC80, PVC8080, PVC90 SKS Part number: Cross-Number: Use in: T..
168.12 $
excl. VAT 140.10 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 16756
Spare part: Needle Bearing Toshiba PVC90, PVC80, PVC8080, PVB92 SKS Part number: Cross-Number: Use i..
59.62 $
excl. VAT 49.68 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15253
Spare part: Piston shoe Toshiba PVC80, PVC8080, PVB92 SKS Part number: Cross-Number: Use in: Toshiba..
36.18 $
excl. VAT 30.15 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15254
Spare part: Retainer Plate Toshiba PVC80, PVC8080, PVB92 SKS Part number: Cross-Number: Use in: Tosh..
66.64 $
excl. VAT 55.53 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 16184

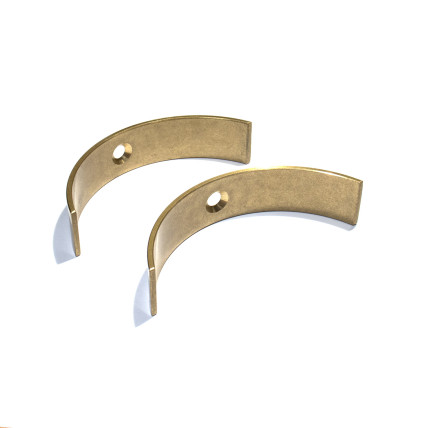

Spare part: Sliding Bearing Toshiba PVB92 SKS Part number: Cross-Number: Use in: Toshiba PVB92 Use i..
36.64 $
excl. VAT 30.53 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 16312
Spare part: Spring of Rotor Toshiba PVC80, PVC8080, PVC90, PVB92 SKS Part number: Cross-Number: Use ..
5.39 $
excl. VAT 4.49 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 15260
Spare part: Swash plate (Cam rocker) Toshiba PVC80, PVC8080 SKS Part number: Cross-Number: Use in: T..
367.22 $
excl. VAT 306.02 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 16185

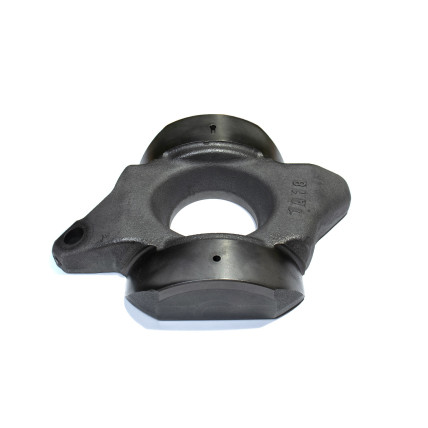

Spare part: Swash plate (Cam rocker) Toshiba PVC80, PVC90 SKS Part number: Cross-Number: Use in: Tos..
367.22 $
excl. VAT 306.02 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15259

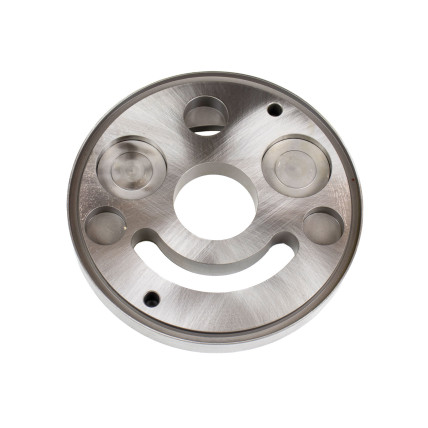

Spare part: Valve plate Left Toshiba PVC80, PVC8080 SKS Part number: Cross-Number: Use in: Toshiba P..
123.55 $
excl. VAT 102.96 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15258

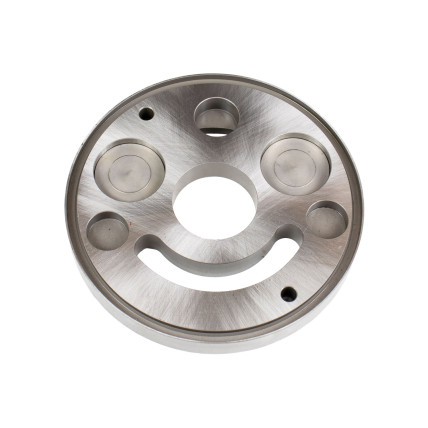

Spare part: Valve plate Right Toshiba PVC80, PVC8080 SKS Part number: Cross-Number: Use in: Toshiba ..
123.55 $
excl. VAT 102.96 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Toshiba PVC80 PVC8080 hydraulic pump
The Toshiba PVC80 / PVC8080 pump is a variable displacement tandem axial piston hydraulic pump. It is designed for use in hydraulic systems of mobile machinery, particularly excavators, where high power and precise control of multiple actuators are required simultaneously. Its design ensures reliability in severe operating conditions and allows for effective flow and pressure regulation.
Technical specifications of the Toshiba PVC80 PVC8080 hydraulic pump:
- Type: Tandem (dual) axial piston pump with variable displacement (Dual Axial Piston Pump with Variable Displacement).
- Design: The pump consists of two identical axial piston sections mounted on a single shaft in a single housing. Each section has a swash plate, the angle of which is adjustable, which allows you to change the performance (flow) of each section independently.
- Displacement: The total displacement is approximately 80+80 cm3/rev. This means that each of the two sections has a volume of approximately 80 cm3 per revolution of the shaft.
- Pressure:
- Nominal working pressure: Approximately 280-300 bar (28-30 MPa).
- Maximum peak pressure: Can reach 350 bar (35 MPa).
- Rotation speed: Nominal - 1800-2200 rpm.
- Weight: approximately 90-120 kg.
- Application: This type of pump is a main component of the hydraulic systems of medium excavators and other construction and specialized equipment.
- Other: The pump is usually equipped with power regulators that automatically limit performance depending on the pressure in the system so as not to overload the machine's engine.
Cross hydraulic pump numbers: 0310007, 20/925743, 333/R2915, 333/R6486, VOE14520750, 14520750
Hydraulic pump models: PVC8080R1NS016, PVC80RS04, PVC80RC01, PVC80RS02
Installed in the model:
- JCB 8080, 8085
- Yuchai YC135
- Volvo ECR88, EC80, EC90
- CAT 307D, 308D
The company "Aspect Plus" offers a wide range of spare parts for repairing the Toshiba PVC80 PVC8080 hydraulic pump.
