Sort By:
Most Viewed
Vendor code:
Model: 11118
Spare part: Ball guide 860139409 Kawasaki K7V125 HANDOK Part number: 860139409 Cross-Number: Use in:..
37.62 $
excl. VAT 31.35 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 11842
Spare part: Coupling of drive Shaft 860139402 Kawasaki K7V125DTP HANDOK Part number: 860139402 Cross..
53.81 $
excl. VAT 44.84 $
Couplings:
Couplings
Most Viewed
Vendor code:
Model: 15523

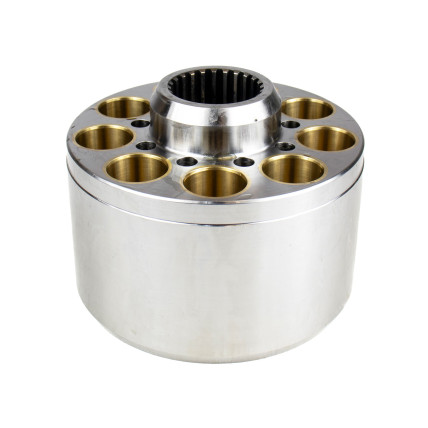

Spare part: Cylinder block Rotor Kawasaki K7V140 SKS Part number: Cross-Number: Use in: Kawasaki K7V..
427.50 $
excl. VAT 356.25 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 11123
Spare part: Drive Shaft 860139400 Kawasaki K7V125 HANDOK Part number: 860139400 Cross-Number: Use in..
131.87 $
excl. VAT 109.89 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15528
Spare part: Drive Shaft 860139400 Kawasaki K7V140, K7V125 SKS Part number: 860139400 Cross-Number: L..
153.90 $
excl. VAT 128.25 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 11122
Spare part: Driven Shaft 860139401 Kawasaki K7V125 HANDOK Part number: 860139401 Cross-Number: Use i..
98.75 $
excl. VAT 82.29 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15527
Spare part: Driven Shaft 860139401 Kawasaki K7V140, K7V125 SKS Part number: 860139401 Cross-Number: ..
114.14 $
excl. VAT 95.12 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17634
Spare part: EPR Valve Kawasaki 4654325 SKS
Part number: 4654325
Cross-Number: Yb35v00006f1, ..
171.58 $
excl. VAT 142.98 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 15529

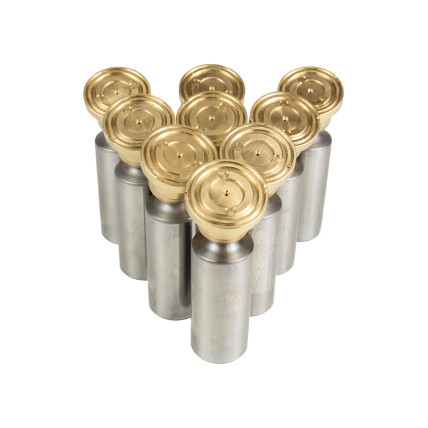

Spare part: Piston shoe Kawasaki LC10V00046R100 SKS Part number: LC10V00046R100 Cross-Number: Use in..
42.61 $
excl. VAT 35.51 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15530

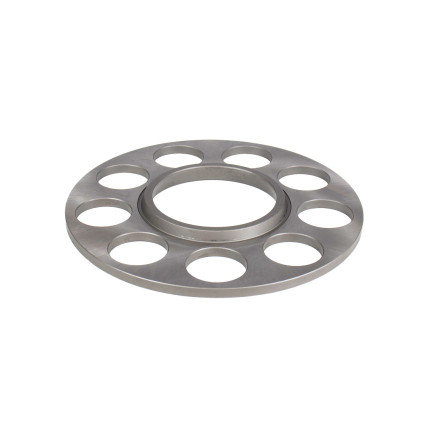

Spare part: Retainer Plate 860139408 Kawasaki K7V140, K7V125 SKS Part number: 860139408 Cross-Number..
46.18 $
excl. VAT 38.48 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15531

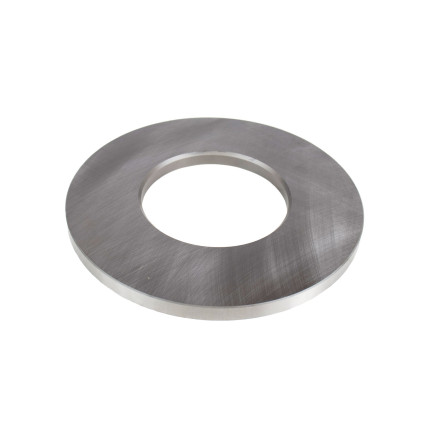

Spare part: Shoe plate 860139410 Kawasaki K7V140, K7V125 SKS Part number: 860139410 Cross-Number: LQ..
40.75 $
excl. VAT 33.96 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15524
Spare part: Spring of Rotor 2437U219S157 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V125, K..
4.70 $
excl. VAT 3.92 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 16228

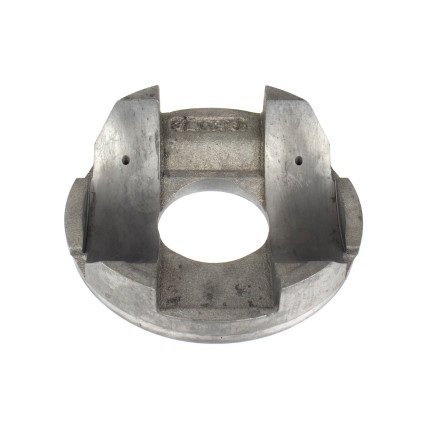

Spare part: Support LQ10V00035S251 Kawasaki K7V125, K7V140 SKS Part number: LQ10V00035S251 Cross-Num..
128.96 $
excl. VAT 107.47 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 16633

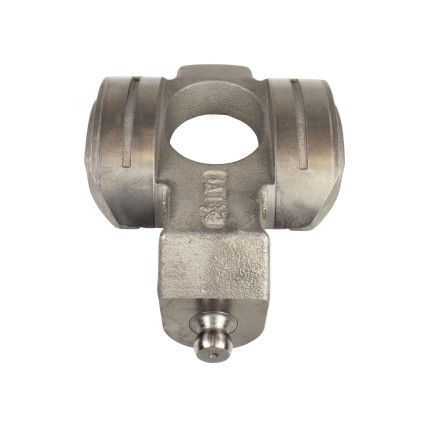

Spare part: Swash plate (Cam rocker) LQ10V00035R400 Kawasaki K7V125, K7V140 SKS Part number: LQ10V00..
199.36 $
excl. VAT 166.13 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15525

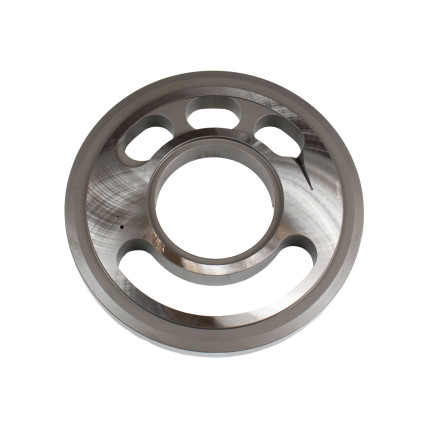

Spare part: Valve plate Left Kawasaki LC10V00046R300 SKS Part number: LC10V00046R300 Cross-Number: U..
77.09 $
excl. VAT 64.24 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki K7V140 hydraulic pump specifications
The Kawasaki K7V140 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, particularly in mid-range excavators.
Technical specifications of the Kawasaki K7V140 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 140 cm3/rev
- Nominal pressure: 35 MPa (350 bar)
- Maximum pressure: 40 MPa (400 bar)
- Maximum rotation speed: 2,500 rpm
- Configurations: single-section, tandi
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: excavators, garbage trucks, loaders, cranes, injection machines, fans, tractors, combines
Design features of the Kawasaki K7V140 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: LC10V00041F1, LC10V00041F2, LC10V00047F1, LC10V00046F1, LQ10V00035S156, LC10V00046R300, LC10V00046R200, 2437U219S157, LQ10V00035S113, LQ10V00035S111, LC10V00046R100, LQ10V00035S153, LQ10V00035S211
Installed in the model: KOBELCO SK330-10, SK350LC-10, SK350-10, SK380-10
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K7V140 hydraulic pump.
