A10V28 A10VD28

Sort By:

Most Viewed

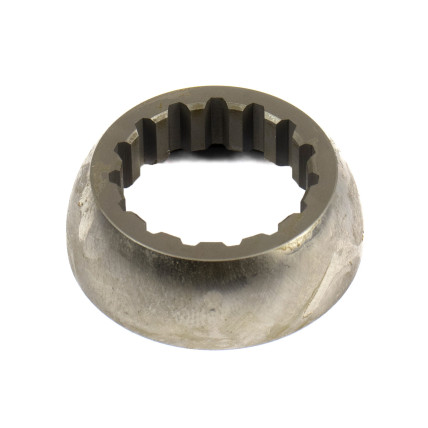

Ball guide Bosch Rexroth A10V28, A10VD28 HANDOK

Vendor code:

Model: 5845

In stock

Brand:: HANDOK

Spare part: Ball guide Bosch Rexroth A10V28, A10VD28 HANDOK Part number: Cross-Number: Use in: Bosch..

21.95 $ excl. VAT 18.29 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

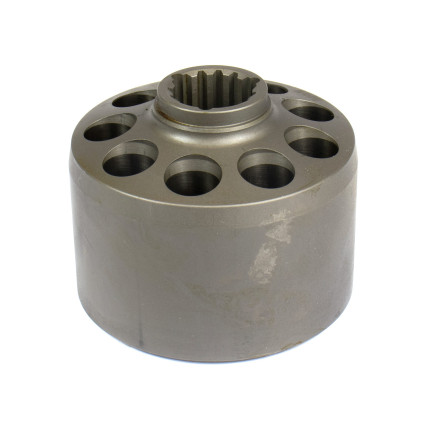

Cylinder block Rotor Bosch Rexroth R902407325 HANDOK

Vendor code:

Model: 5840

In stock

Brand:: HANDOK

Spare part: Cylinder block Rotor Bosch Rexroth R902407325 HANDOK Part number: R902407325 Cross-Numbe..

125.75 $ excl. VAT 104.79 $

Main hydraulic units: Main hydraulic units

Most Viewed

Piston shoe Bosch Rexroth R902433667 SKS

Vendor code:

Model: 8446

In stock

Brand:: SKS Hydraulic

Spare part: Piston shoe Bosch Rexroth R902433667 SKS Part number: R902433667 Cross-Number: R90243366..

13.00 $ excl. VAT 10.83 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Retainer Plate Bosch Rexroth A10V28, A10VD28 HANDOK

Vendor code:

Model: 5844

In stock

Brand:: HANDOK

Spare part: Retainer Plate Bosch Rexroth A10V28, A10VD28 HANDOK Part number: Cross-Number: Use in: B..

23.17 $ excl. VAT 19.31 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

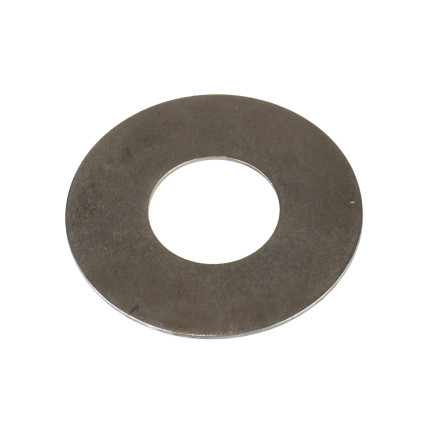

Shoe plate Bosch Rexroth A10V28, A10VD28 HANDOK

Vendor code:

Model: 5847

In stock

Brand:: HANDOK

Spare part: Shoe plate Bosch Rexroth A10V28, A10VD28 HANDOK Part number: Cross-Number: Use in: Bosch..

19.30 $ excl. VAT 16.08 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

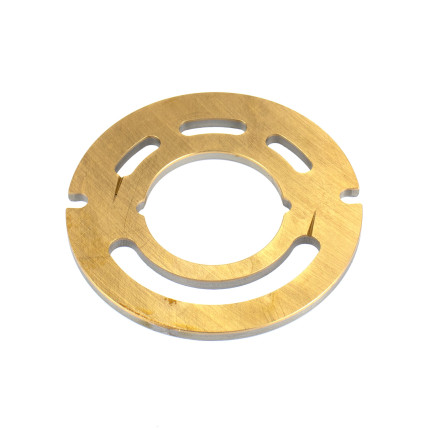

Valve plate Left Bosch Rexroth A10V28, A10VD28 HANDOK

Vendor code:

Model: 5842

In stock

Brand:: HANDOK

Spare part: Valve plate Left Bosch Rexroth A10V28, A10VD28 HANDOK Part number: Cross-Number: Use in:..

47.48 $ excl. VAT 39.57 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

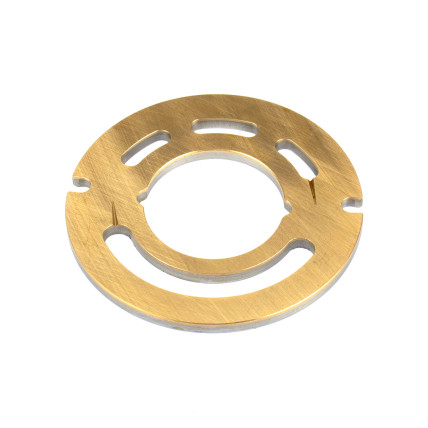

Valve plate Right Bosch Rexroth A10V28, A10VD28 HANDOK

Vendor code:

Model: 5843

In stock

Brand:: HANDOK

Spare part: Valve plate Right Bosch Rexroth A10V28, A10VD28 HANDOK Part number: Cross-Number: Use in..

59.35 $ excl. VAT 49.46 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

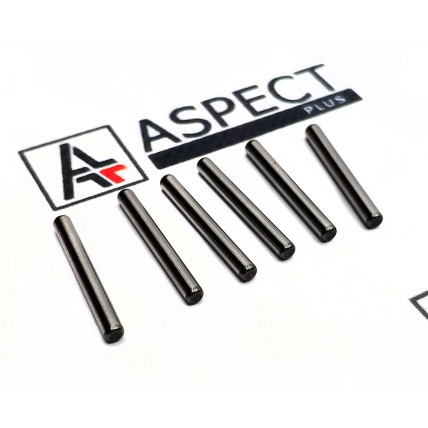

Cylinder block press Pin Bosch Rexroth 332/E5677 HANDOK

Vendor code:

Model: 5841

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block press Pin Bosch Rexroth 332/E5677 HANDOK Part number: 332/E5677 Cross-Num..

3.60 $ excl. VAT 3.00 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

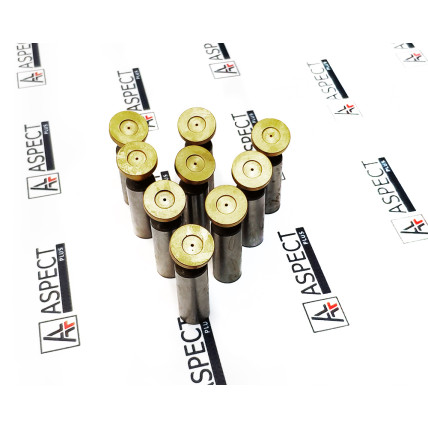

Piston shoe Bosch Rexroth R902433667 HANDOK

Vendor code:

Model: 5846

Pre-Order

Brand:: HANDOK

Spare part: Piston shoe Bosch Rexroth R902433667 HANDOK Part number: R902433667 Cross-Number: Use in..

13.80 $ excl. VAT 11.50 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Bosch Rexroth A10V28 A10VD28 pump specifications

This is a variable displacement axial piston pump for open circuits (A10V) or double acting (A10VD). They are used in various applications, providing high performance, durability and energy efficiency.

Technical specifications of Bosch Rexroth A10V28 A10VD28:

Displacement: 28 cm³
Working pressure:
- Nominal: up to 28 MPa 280 bar
- Maximum: up to 35 MPa 350 bar
Maximum rotation speed:
- A10V: up to 3000 rpm
- A10VD: typically up to 2500 rpm
Flow rate (at 1500 rpm): ~ 42 l/min
Weight:
- A10V28: 14-18 kg
- A10VD28: 20-24 kg
Working medium: Hydraulic oils according to DIN 51524
Application in special equipment: hydraulic presses, timber trucks, harvesters, sprayers, snowplows, road machines, lifts, tractors, etc.

Hydraulic pump cross number: R902451499, R910932983, R902532354, R902476996, R902449296, R902543256, R902531893, R902550211, R902861161, R902462895, R902465751, R902532714, R910978605, R902444235, R910969941, R910987362, R910943805, R900935918, R902465267, R900911928, R900985874, R910926144, R900911162, R902541915, R900995939, R902538203, R902538191, R902538183, R902504528, R902496300, R902491835, R902416619, R902430246, R902541916, R902538137, R902417929, R910947331, R910987363, R910985874, R910916326, R910947320, R910993670, R910993671, R910993866, R910995262, R910995263, R910995264, R910995265, R910993669, R910922624, R910949789, R910961975, R910962290, R910968635, R910968685, R910969466, R910901473, R910927146, R910992506, R910991436, R910989575, R910947923, R910949206, R910951919, R910951943, R910944328, R910944329, R910918036, R910918037, R910918038, R902408087, R902417375, R910987639, R910987642, R910987758, R910988589, R910989011, R910989033, R902487514, R910728888, R910947786, R902533325, R902454048, R910993669, R902487514, R910993670

Installed in the model:

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A10V28 A10VD28 hydraulic pump.
