Vendor code:
Model: 13882
Spare part: Cylinder block Rotor Linde 2063200808 SKS Part number: 2063200808 Cross-Number: 20632008..
421.80 $
excl. VAT 351.50 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 16667
Spare part: Piston shoe Linde 4373200594 SKS Part number: 4373200594 Cross-Number: 4373200595, 43732..
40.91 $
excl. VAT 34.09 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 16631
Spare part: Retainer Plate Linde 2063231401 SKS Part number: 2063231401 Cross-Number: 2063231400 Use..
67.16 $
excl. VAT 55.97 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15942

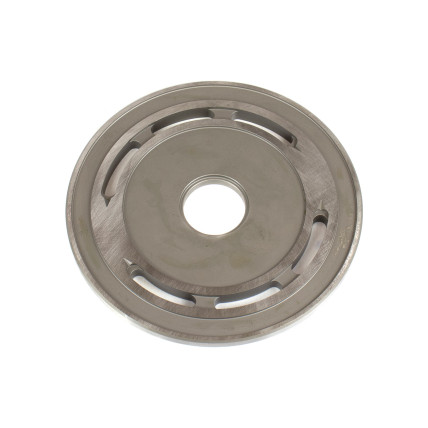

Spare part: Valve plate Motor Linde 2163240226 SKS Part number: 2163240226 Cross-Number: 2163240225 ..
96.10 $
excl. VAT 80.08 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Linde BMF105-01 hydraulic motor
The Linde BMF105-01 hydraulic motor is a fixed displacement axial piston motor from the BMF series from Linde Hydraulics. These motors are known for their high efficiency, reliability and ability to operate in difficult operating conditions.
Technical characteristics of the Linde BMF105-01 hydraulic motor:
- Motor type: Axial piston with fixed displacement
- Construction: Bent axle
- Displacement: 105 cm3/rev
- Maximum rotation speed: 4500 rpm
- Nominal working pressure: 420 bar
- Maximum pressure (short-term): 500 bar
- Direction of rotation: Bidirectional
- Shaft type: Splined
- Mounting flange: SAE J744 standard
- Standard: According to ISO 6149
- Coating: Anti-corrosion oil (default)
- Weight: approximately 25 kg
These characteristics make the Linde BMF105-01 fixed displacement hydraulic motor suitable for use in systems where high power is required in a compact size.
Hydraulic motor cross number: 2163240226, 4373200595, 4373200593, 4373200591, 2063200809, 2063231401, 0009280393, 4193220790
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde BMF105-01 hydraulic motor.
