Sort By:
Most Viewed
Vendor code:
Model: 17394
Spare part: Ball guide Kawasaki 0818510 SKS
Part number: 0818510
Cross-Number: XJBN-00422, S..
31.08 $
excl. VAT 25.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 2727
Spare part: Ball guide Kawasaki XJBN-00422 HANDOK
Part number: XJBN-00422
Cross-Number: 0818..
22.12 $
excl. VAT 18.43 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15598
Spare part: Drive Shaft Kawasaki K3VL80 HANDOK Part number: Cross-Number: Use in: Kawasaki K3VL80 Us..
160.27 $
excl. VAT 133.56 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15150
Spare part: Drive Shaft Kawasaki K3VL80 L=267 mm, 0T/KEY SKS Part number: Cross-Number: Use in: Kawa..
115.43 $
excl. VAT 96.19 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 13977
Spare part: Drive Shaft Kawasaki K3VL80 L=267 mm, 14T/0T SKS Part number: Cross-Number: Use in: Kawa..
115.43 $
excl. VAT 96.19 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 13976
Spare part: Drive Shaft Kawasaki K3VL80 L=293.5 mm, 14T/16T SKS Part number: Cross-Number: Use in: K..
115.43 $
excl. VAT 96.19 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 16674
Spare part: Retainer Plate Kawasaki 0818509 SKS Part number: 0818509 Cross-Number: 0818509, XJBN-004..
30.47 $
excl. VAT 25.39 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5935
Spare part: Roller Bearing Kawasaki 0878107 NTN Part number: 0878107 Cross-Number: XJBN-00429, 20/95..
63.00 $
excl. VAT 52.50 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 12949

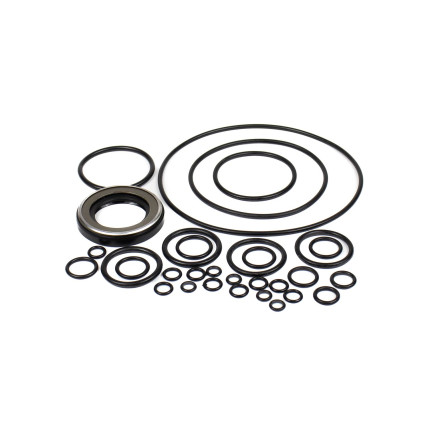

Spare part: Seal kit pump Kawasaki 29L8100S0Y SKS
Part number: 29L8100S0Y
Cross-Number:
U..
102.36 $
excl. VAT 85.30 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 17319

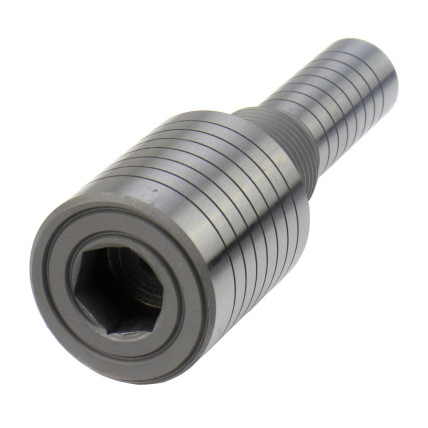

Spare part: Servo Piston Kawasaki 20/950606 SKS
Part number: 20/950606
Cross-Number: XJBN-00..
38.47 $
excl. VAT 32.06 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 2778

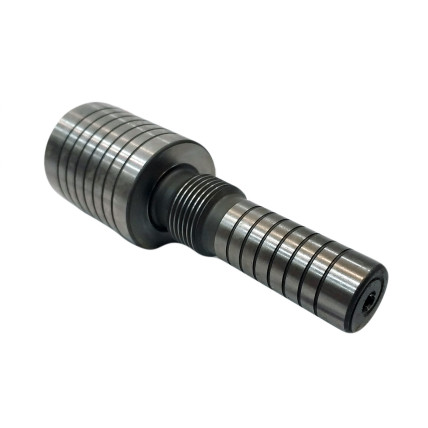

Spare part: Servo Piston Kawasaki XJBN-00407 L=95.5 mm HANDOK Part number: XJBN-00407 Cross-Number: ..
29.52 $
excl. VAT 24.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 2700
Spare part: Shoe plate Kawasaki 0818512 HANDOK
Part number: 0818512
Cross-Number: 0818512, X..
24.31 $
excl. VAT 20.26 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 17345
Spare part: Shoe plate Kawasaki 0818512 SKS
Part number: 0818512
Cross-Number: XJBN-00420, 2..
31.50 $
excl. VAT 26.25 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 13261
Spare part: Support Kawasaki 2923330-0111 SKS Part number: 2923330-0111 Cross-Number: Use in: Please..
123.83 $
excl. VAT 103.19 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 12948

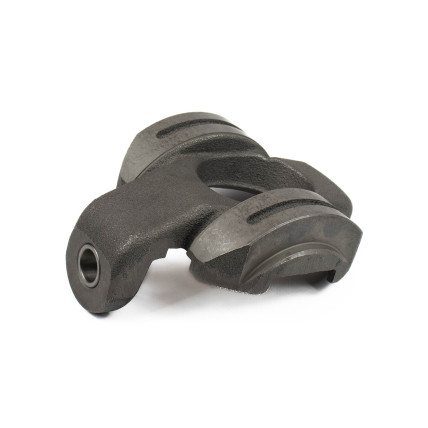

Spare part: Swash plate (Cam rocker) Kawasaki 2953802301 SKS Part number: 2953802301 Cross-Number: M..
115.43 $
excl. VAT 96.19 $
Main hydraulic units:
Main hydraulic units
Kawasaki K3VL80 hydraulic pump specifications
The Kawasaki K3VL80 hydraulic pump is a variable displacement axial piston pump with a swash plate designed for open hydraulic systems in mobile and industrial applications.
Technical specifications of the Kawasaki K3VL80 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacement: 80 cm3/rev
- Nominal pressure: 320 bar
- Maximum pressure: 350 bar
- Maximum rotation speed: 2400 rpm
- Weight: approximately 35 kg
- Direction of rotation: right (clockwise)
- Mounting type: SAE flange with splined shaft
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt
- Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks
Design features of the Kawasaki K3VL80 hydraulic pump:
- Configurations: single-section
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Additional options: presence or absence of PTO (power take-off shaft)
The Kawasaki K3VL80 hydraulic pump has the following advantages::
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number:
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K3VL80 hydraulic pump.
