MS05 MSE05

Characteristics of the Poclain MS05 MSE05 hydraulic motor

The Poclain MS05 and MSE05 hydraulic motors are versatile and powerful mid-sized units, representing the "golden mean" in the Poclain radial piston motor range. They offer significant torque and high reliability for a wide range of mobile machinery, from agricultural machinery to construction equipment. The MSE05 model, as in the other series, is an improved version of the MS05, optimized for higher speeds and higher power output.

Technical characteristics of the Poclain MS05 MSE05 hydraulic motor:

• Type: High Torque Low Speed (HTLS) Hydraulic Motor
• Design: Radial piston, modular. Known as the "Classic" version
• Displacement: From 260 to 820 cm³/rev
• Max. torque: Up to 1300 Nm
• Max. peak pressure:
  • Poclain MS05: Up to 450 bar
  • Poclain MSE05: Up to 400 bar
• Max. continuous pressure: Up to 300 bar
• Max. rotation speed
  • Poclain MS05: Up to 520 rpm
  • Poclain MSE05: Up to 700 rpm
• Max power
  • Poclain MS05: Up to 29 kW (39 hp)
  • Poclain MSE05: Up to 50 kW (67 hp)
• Weight (approximate): ~ 35 - 45 kg

Poclain MS05 and MSE05 hydraulic motorsare extremely popular and are used where more power is needed than the younger models (MS02/MSE02) can offer.

• Construction machinery:
  • Drive of medium rollers and loaders: Ensure the movement of equipment weighing up to 10-12 tons.
  • Platform rotation drive: Often used to drive the turret on small excavators and cranes.
  • Attachment drive: Powerful brushes, trenchers, hydraulic drills.
• Agricultural machinery:
  • Wheel drive of self-propelled sprayers and combines: A reliable drive for working on difficult terrain. The MSE05 is particularly popular due to its ability to move quickly.
  • Active tool drive: Drive of seeders, spreaders, feed mixers.
• Municipal and special equipment:
  • Garbage trucks: Pressing mechanism drive.
  • Forestry equipment: Drive of extension rollers on harvester heads, drive of wheels of small forwarders.
  • Industrial winches: Used to create high pulling force.

Cross-Number:

Installed in the equipment model:

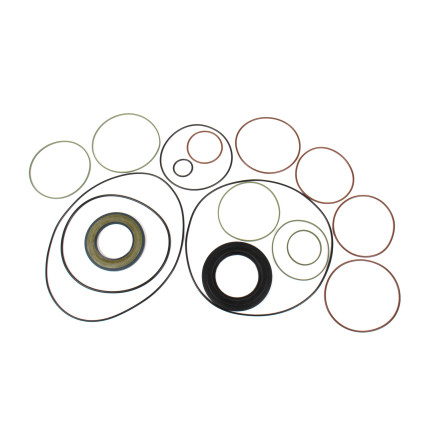

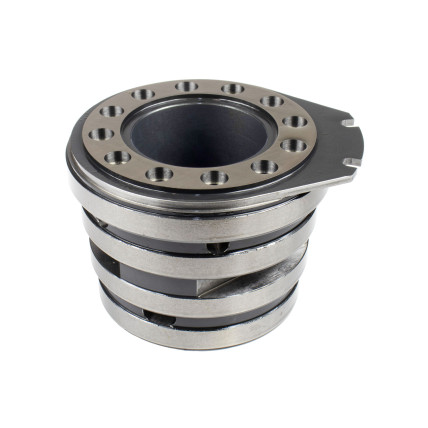

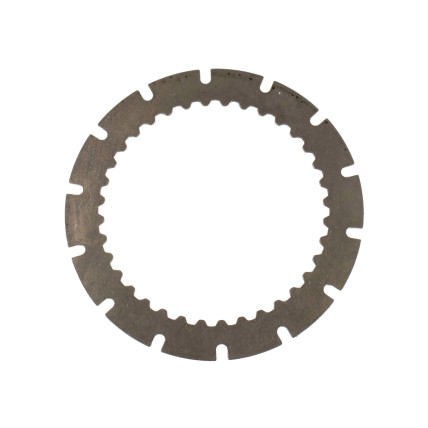

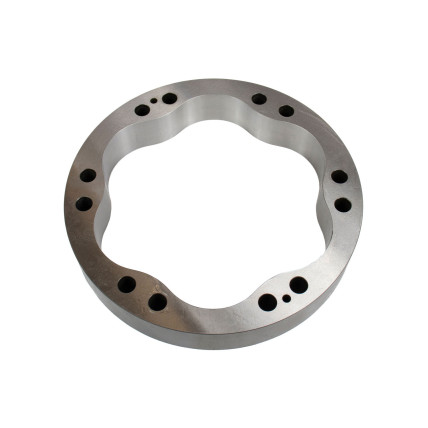

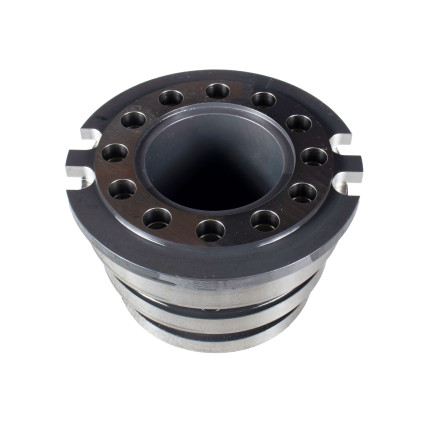

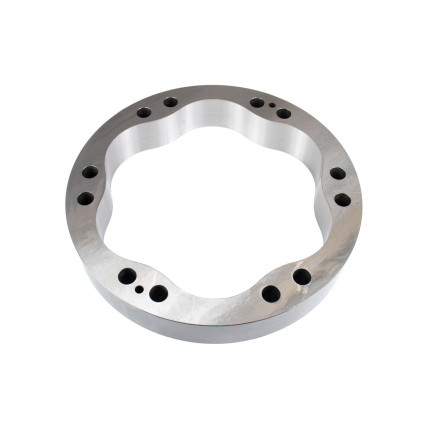

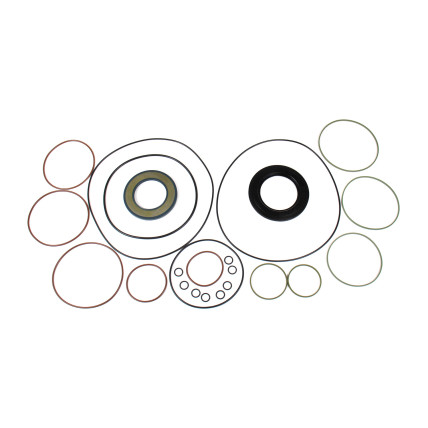

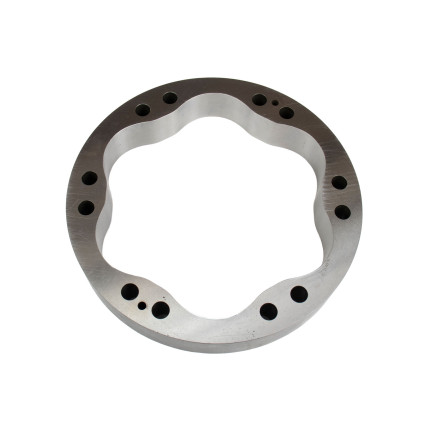

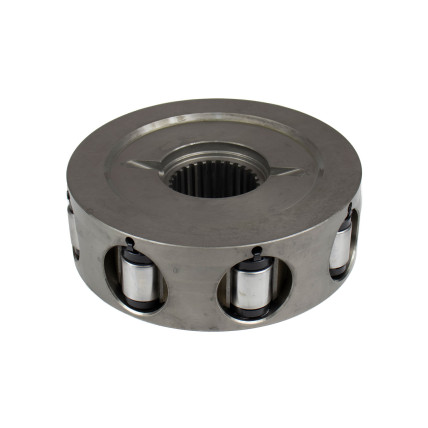

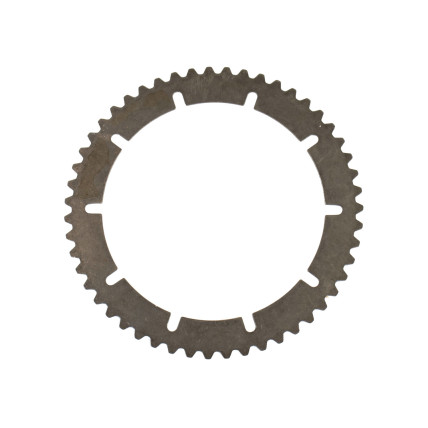

The company "Aspect Plus" offers a wide range of spare parts for repairing the Poclain MS05 MSE05 hydraulic motor.
