P2105

Characteristics of the Parker P2105 hydraulic pump

The Parker P2105 hydraulic pump is a high-performance axial piston pump with variable displacement. This powerful unit is designed for the most demanding hydraulic systems of mobile equipment, where significant flow and high reliability are required. Its main task is to effectively create and regulate the flow of hydraulic fluid to power the working parts of the machines.

Technical characteristics of the Parker P2105 hydraulic pump:

• Type: axial piston pump with variable displacement
• Design: with swashplate, durable cast iron body, conical pistons, designed for heavy duty use.
• Displacement: 105 cm³/rev
• Maximum working pressure: 280 bar (4060 psi)
• Rotation speed
  • maximum continuous speed: 2,400 rpm
  • minimum speed: 500 rpm
• Weight: Approximately 51 kg
• Application:
  • heavy construction equipment (large wheel loaders, excavators)
  • logging equipment (forwarders, harvesters)
  • mining equipment
  • large agricultural machinery
• Other features:
  • high overall efficiency
  • available with various types of regulators, including Load Sensing and pressure regulators
  • designed for long service life under intensive loads.

Hydraulic pump cross number:

Installed in the model:

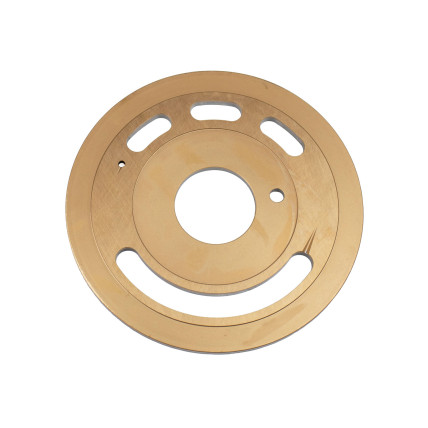

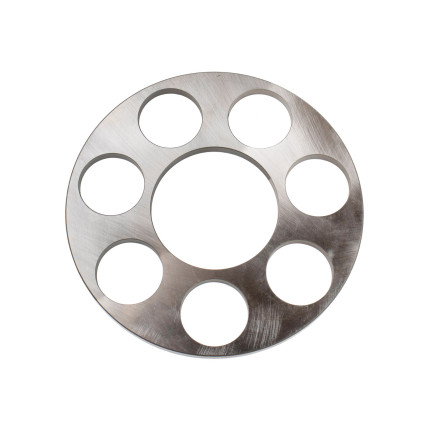

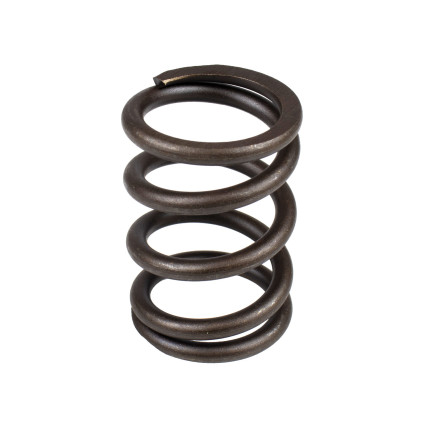

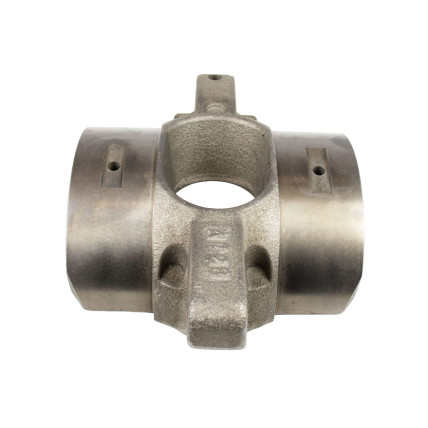

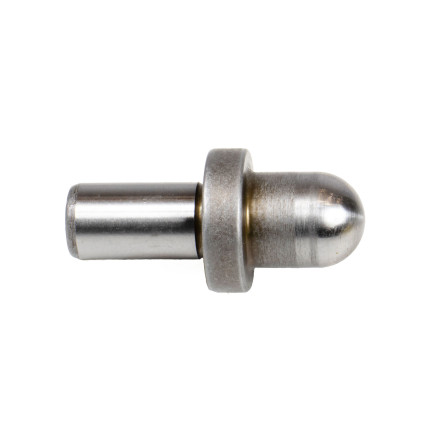

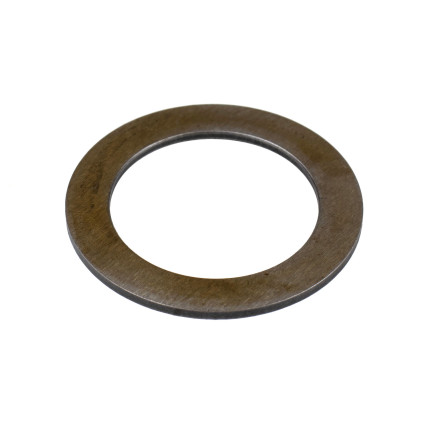

The company "Aspect Plus" offers a wide range of spare parts for repairing the Parker P2105 hydraulic pump.
