M2X120

Sort By:

Most Viewed

Ball guide Kawasaki 0425105 HANDOK

Vendor code:

Model: 4592

In stock

Brand:: HANDOK

Spare part: Ball guide Kawasaki 0425105 HANDOK Part number: 0425105 Cross-Number: 5I-8634 Use in: Pl..

26.30 $ excl. VAT 21.92 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Kawasaki 0425105 SKS

Vendor code:

Model: 10042

In stock

Brand:: SKS Hydraulic

Spare part: Ball guide Kawasaki 0425105 SKS Part number: 0425105 Cross-Number: 5I-8634 Use in: Pleas..

48.17 $ excl. VAT 40.14 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Washer Kawasaki 0425108 HANDOK

Vendor code:

Model: 4599

In stock

Brand:: HANDOK

Spare part: Ball guide Washer Kawasaki 0425108 HANDOK Part number: 0425108 Cross-Number: Use in: Ple..

6.13 $ excl. VAT 5.11 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

Ball Guide Washer Kawasaki M2X120, M5X130 SKS

Vendor code:

Model: 10039

In stock

Brand:: SKS Hydraulic

Spare part: Ball Guide Washer Kawasaki M2X120, M5X130 SKS Part number: Cross-Number: Use in: Kawasak..

5.90 $ excl. VAT 4.92 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

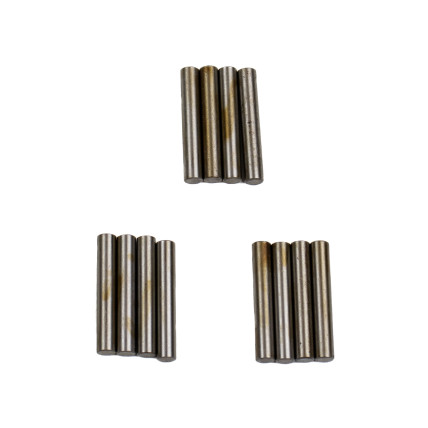

Cylinder block press Pin Kawasaki 0425107 HANDOK

Vendor code:

Model: 4595

In stock

Brand:: HANDOK

Spare part: Cylinder block press Pin Kawasaki 0425107 HANDOK Part number: 0425107 Cross-Number: Use ..

3.40 $ excl. VAT 2.83 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

Cylinder block press Pin Kawasaki M2X120 SKS

Vendor code:

Model: 10040

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block press Pin Kawasaki M2X120 SKS Part number: Cross-Number: Use i..

3.28 $ excl. VAT 2.73 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

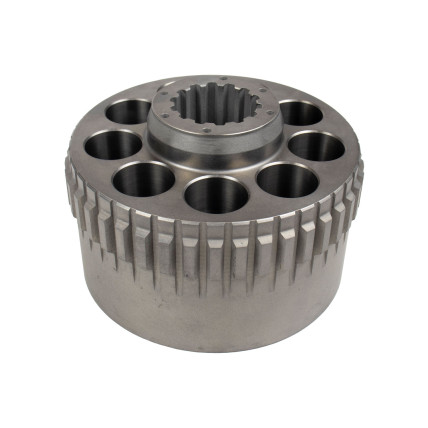

Cylinder block Rotor Kawasaki M2X120 SKS

Vendor code:

Model: 10038

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block Rotor Kawasaki M2X120 SKS Part number: Cross-Number: Use in: Kawasaki M2X..

288.56 $ excl. VAT 240.47 $

Main hydraulic units: Main hydraulic units

Most Viewed

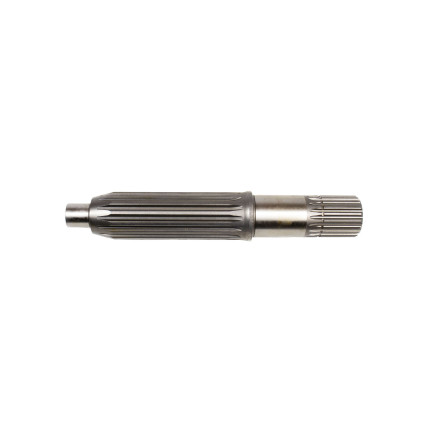

Drive Shaft motor Kawasaki 0425103 HANDOK

Vendor code:

Model: 4594

In stock

Brand:: HANDOK

Spare part: Drive Shaft motor Kawasaki 0425103 HANDOK Part number: 0425103 Cross-Number: 5I-8640 Use..

98.65 $ excl. VAT 82.21 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

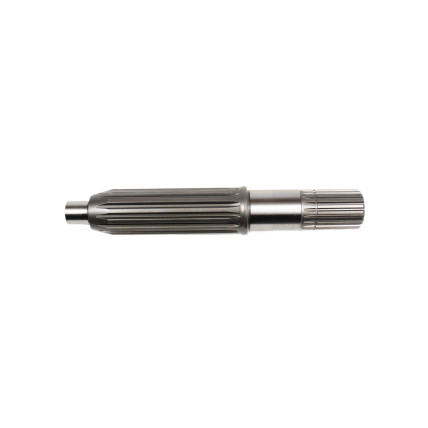

Drive Shaft Motor Kawasaki M2X120 SKS

Vendor code:

Model: 10871

In stock

Brand:: SKS Hydraulic

Spare part: Drive Shaft Motor Kawasaki M2X120 SKS Part number: Cross-Number: Use in: Kawasaki M2X120..

114.43 $ excl. VAT 95.36 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Friction plate Kawasaki 0788816 SKS

Vendor code:

Model: 10045

In stock

Brand:: SKS Hydraulic

Spare part: Friction plate Kawasaki 0788816 SKS Part number: 0788816 Cross-Number: VOE14529762, 5I-8..

26.80 $ excl. VAT 22.33 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

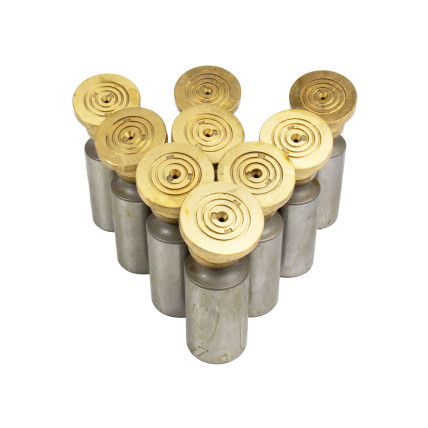

Piston shoe Kawasaki 0425101 HANDOK

Vendor code:

Model: 4596

In stock

Brand:: HANDOK

Spare part: Piston shoe Kawasaki 0425101 HANDOK Part number: 0425101 Cross-Number: 5I-8632 Use in: P..

24.26 $ excl. VAT 20.22 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

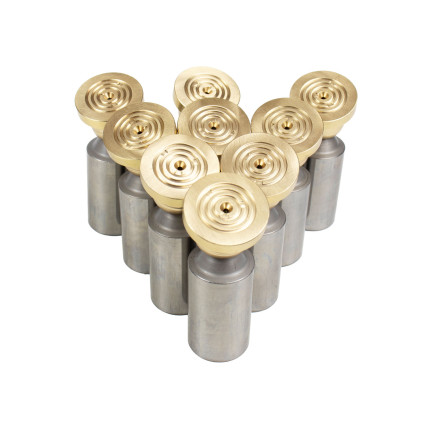

Piston shoe Kawasaki 0425101 SKS

Vendor code:

Model: 10274

In stock

Brand:: SKS Hydraulic

Spare part: Piston shoe Kawasaki 0425101 SKS Part number: 0425101 Cross-Number: 5I-8632 Use in: Plea..

22.80 $ excl. VAT 19.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

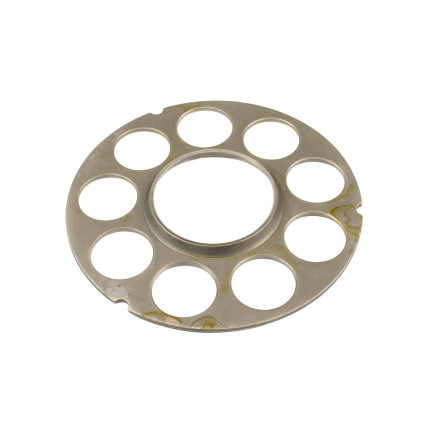

Retainer Plate Kawasaki 0425110 HANDOK

Vendor code:

Model: 10562

In stock

Brand:: HANDOK

Spare part: Retainer Plate Kawasaki 0425110 HANDOK Part number: 0425110 Cross-Number: 5I-8636 Use in..

30.23 $ excl. VAT 25.19 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

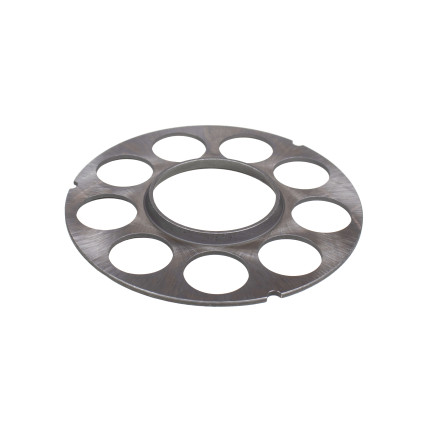

Retainer Plate Kawasaki M2X120 SKS

Vendor code:

Model: 10043

In stock

Brand:: SKS Hydraulic

Spare part: Retainer Plate Kawasaki M2X120 SKS Part number: Cross-Number: Use in: Kawasaki M2X120 Us..

45.31 $ excl. VAT 37.76 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Roller Bearing Kawasaki 0878107 NTN

Vendor code:

Model: 5935

In stock

Brand:: NTN

Spare part: Roller Bearing Kawasaki 0878107 NTN Part number: 0878107 Cross-Number: XJBN-00429, 20/95..

63.00 $ excl. VAT 52.50 $

Oil seals, bearings, gears of hydraulic pumps and motors: Oil seals, bearings, gears of hydraulic pumps and motors

Kawasaki M2X120 hydraulic motor specifications

The Kawasaki M2X120 hydraulic motor is a fixed displacement axial piston motor with a swash plate, specifically designed for mid-range excavator slewing mechanisms. This model is part of the M2X series, which also includes the M2X63, M2X96, M2X128, M2X146, M2X150, M2X170, M2X210 models.

Technical specifications of the Kawasaki M2X120 hydraulic motor:

Type: Fixed displacement axial piston motor with swash plate
Displacement: 120 cm³/rev
Maximum working pressure: 29 MPa (290 bar)
Maximum torque: approximately 10,000 N m
Maximum rotation speed: approximately 100 rpm
Maximum flow rate: up to 150 l/min
Brake release pressure: 2–7 MPa

Design features of the Kawasaki M2X120 hydraulic motor:

Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
High efficiency: Optimized design ensures stable operation under high loads.
Reliability: Built-in valves provide overload protection and stable system operation.

Hydraulic motor cross number:

Installed in the model:

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X120 hydraulic motor.
