Sort By:
Most Viewed
Vendor code:
Model: 17308
Spare part: Charge Pump Linde 5803001058 SKS Part number: 5803001058 Cross-Number: 5803001058, 58030..
786.48 $
excl. VAT 655.40 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 13950
Spare part: Charge pump Linde 5813001060 SKS
Part number: 5813001060
Cross-Number:
Use in..
786.47 $
excl. VAT 655.39 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Vendor code:
Model: 9659

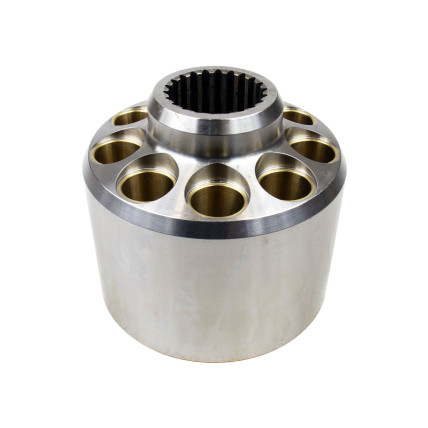

Spare part: Cylinder block Rotor Linde 2553200802 SKS Part number: 2553200802 Cross-Number: 25532008..
453.58 $
excl. VAT 377.98 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9897

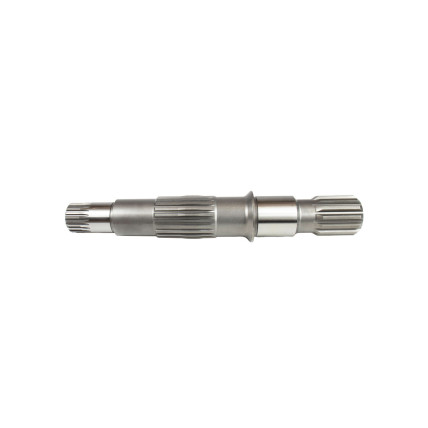

Spare part: Drive Shaft Linde 2553230141 SKS Part number: 2553230141 Cross-Number: 2553230131 Use in..
218.74 $
excl. VAT 182.28 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9648

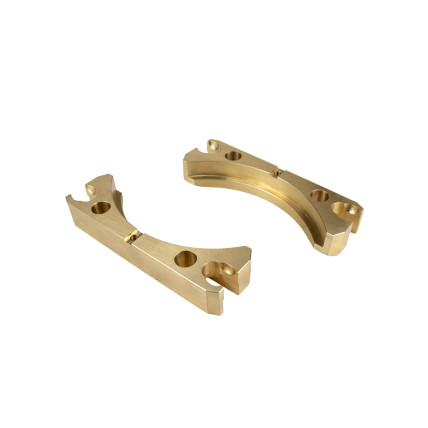

Spare part: Fix Plate of Retainer Plate Linde 2553431804 SKS Part number: 2553431804 Cross-Number: U..
152.62 $
excl. VAT 127.18 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9649
Spare part: Fix Plate of Retainer Plate Linde 2553431806 SKS Part number: 2553431806 Cross-Number: 2..
114.58 $
excl. VAT 95.48 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9662
Spare part: Pipe Linde 2553014005 SKS Part number: 2553014005 Cross-Number: 2553014002 Use in: Pleas..
93.62 $
excl. VAT 78.02 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9646
Spare part: Retainer Plate Linde 2653231414 SKS Part number: 2653231414 Cross-Number: Use in: Please..
77.52 $
excl. VAT 64.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10850

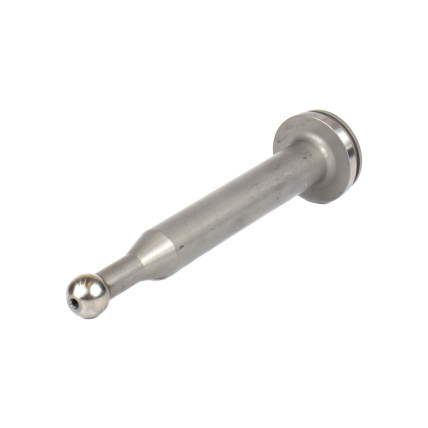

Spare part: Servo Piston Linde 2553450403 SKS Part number: 2553450403 Cross-Number: Use in: Please m..
128.53 $
excl. VAT 107.11 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9813
Spare part: Sliding Bearing Linde 0009234036 SKS Part number: 0009234036 Cross-Number: Use in: Pleas..
61.70 $
excl. VAT 51.42 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 17625
Spare part: Socket Pin Linde HPV55-02, HPR55-02, HMV55-02, HMR75-02, HMV75-02, HPR75-02, HPV75-02, H..
5.51 $
excl. VAT 4.59 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9661
Spare part: Swash plate (Cam rocker) Linde 2853232005 SKS Part number: 2853232005 Cross-Number: 2853..
412.25 $
excl. VAT 343.54 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9660
Spare part: Valve plate Right Linde 2553240229 SKS Part number: 2553240229 Cross-Number: 2553240235,..
95.47 $
excl. VAT 79.56 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9663
Pre-Order
Spare part: Piston shoe Linde 2653200408 ID=8.0 mm SKS Part number: 2653200408 Cross-Number: Use in:..
32.92 $
excl. VAT 27.43 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 5319
Pre-Order
Spare part: Piston shoe Linde 2653200408 SKS Part number: 2653200408 Cross-Number: Use in: Please ma..
64.13 $
excl. VAT 53.44 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Linde HPR135-02 hydraulic pump specifications
The Linde HPR135-02 hydraulic pump is a variable displacement axial piston pump designed for open circuit systems. It provides high reliability, efficiency and adaptability in a variety of mobile and industrial applications such as construction machinery, agricultural machinery and other mobile installations.
Technical specifications of the Linde HPR135-02 hydraulic pump:
- Pump type: Axial piston with variable displacement
- Displacement: 135 cm3/rev
- Maximum rotation speed: up to 2700 rpm
- Maximum volume flow: up to 216 l/min (at 1600 rpm)
- Nominal pressure: 420 bar
- Maximum pressure: 500 bar
- Maximum pressure in the housing: 2.5 bar
- Torque: approximately 907 N m
- Theoretical power: about 153 kW
- Weight: approximately 65 kg
The Linde HPR135-02 regulating pump has the following features and advantages:
- High energy efficiency: The flow on demand function allows the pump to adapt the hydraulic flow according to the system requirements, reducing energy consumption.
- Noise reduction: The integration of the SPU (Silencer Pulsation Unit) reduces pressure pulsations by up to 70%, ensuring quiet operation in sensitive environments.
- Modular design: Supports a variety of configurations, including tandem and multi-pump installations, with compatibility for high-pressure SAE ports and a variety of mounting flanges.
- Reliability: High performance and durability even in difficult operating conditions.
Hydraulic pump cross number: VOE14609472, 2553200802, 2553200818, 2653200408, 2553230141, 2553230131, 2553230142, 2553230130, 2553230144, 2553230135, 2553230143, 2553230129, 2553230101, 2653231414, 2553240230, 2553240234, 2553240229, 2553240235, 2553240231, 2853232005, 2853232000, 2653232013, 2653232002, 2553014005, 2653431825, 2553431806, VOE14382432, 2553431804, 2553450403, 0009234036, 0009160200, 0009247309, 9509000735, 0009280637, 0009280345
Installed in the model: Atlas 1604, EcoLog 574B, Volvo EW 140B, Volvo EW 140C, Volvo EW 160B, Volvo EW 160C, Volvo EW 160D
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Linde HPR135-02 hydraulic pump.
