Vendor code:
Model: 8216
Spare part: Cylinder block Rotor Linde 2933200807 SKS
Part number: 2933200807
Cross-Number:
..
353.70 $
excl. VAT 294.75 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 10843
Spare part: Fix Plate of Retainer Plate Linde 2933233108 SKS Part number: 2933233108 Cross-Number: 2..
60.07 $
excl. VAT 50.06 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 9643
Spare part: Flange Linde HMF75-02 21T SKS Part number: Cross-Number: Use in: Linde HMF75-02 Use in m..
165.60 $
excl. VAT 138.00 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9642
Spare part: Flange Linde HMF75-02 21T, 114.5 mm SKS Part number: Cross-Number: Use in: Linde HMF75-0..
165.60 $
excl. VAT 138.00 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9644
Spare part: Flange Linde HMF75-02 23T, 120.0 mm SKS Part number: Cross-Number: Use in: Linde HMF75-0..
165.60 $
excl. VAT 138.00 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9689
Spare part: Retainer Plate Linde 2533231406 SKS Part number: 2533231406 Cross-Number: Use in: Please..
41.70 $
excl. VAT 34.75 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9898
Spare part: Retainer Plate Linde 2933231403 SKS Part number: 2933231403 Cross-Number: Use in: Please..
77.87 $
excl. VAT 64.89 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9676
Spare part: Separation Bush Linde 2933230501 SKS Part number: 2933230501 Cross-Number: 2053230505 Us..
16.85 $
excl. VAT 14.04 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 17329
Spare part: Shoe plate Linde 2933435105 SKS
Part number: 2933435105
Cross-Number:
Use in:..
62.10 $
excl. VAT 51.75 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9640

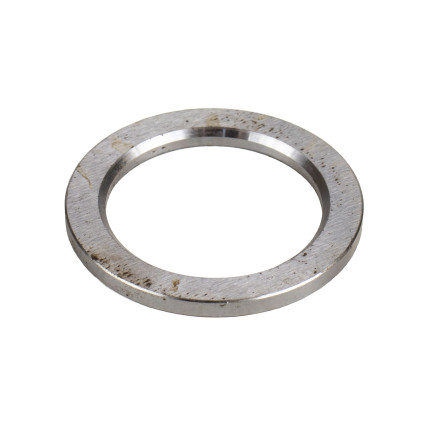

Spare part: Washer Linde 0009143218 SKS Part number: 0009143218 Cross-Number: Use in: Please make su..
3.85 $
excl. VAT 3.21 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 9641
Spare part: Washer Linde HPR55-02, HPV75-02, HMV75-02, HMF75-02, HMR75-02 SKS Part number: Cross-Num..
3.85 $
excl. VAT 3.21 $
Other parts:
Other parts
Most Viewed
Vendor code:
Model: 17874
Pre-Order
Spare part: Cylinder block Rotor Linde 2933200804 SKS
Part number: 2933200804
Cross-Number: ..
331.32 $
excl. VAT 276.10 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 9899
Pre-Order
Spare part: Drive Shaft Linde 2933230108 SKS
Part number: 2933230108
Cross-Number: 293323010..
95.90 $
excl. VAT 79.92 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9877
Pre-Order
Spare part: Piston shoe Linde 2333200402 SKS Part number: 2333200402 Cross-Number: Use in: Please ma..
22.97 $
excl. VAT 19.14 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10847
Pre-Order

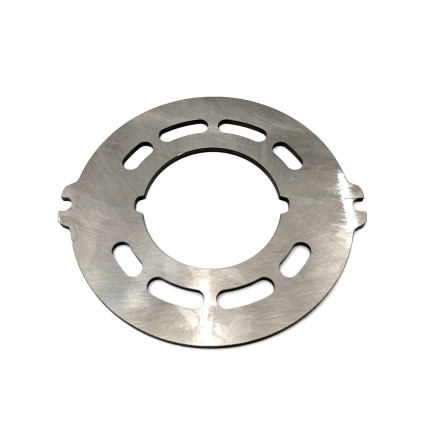

Spare part: Valve plate Motor Linde 2933240206 SKS Part number: 2933240206 Cross-Number: Use in: Ple..
89.15 $
excl. VAT 74.29 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Linde HMF75-02 hydraulic motor
The Linde HMF75-02 hydraulic motor is a fixed displacement axial piston motor designed for high-load applications. This model is part of the HMF-02 series from Linde Hydraulics, which is known for its reliability and efficiency.
Technical characteristics of the Linde HMF75-02 hydraulic motor:
- Motor type: Axial piston with fixed displacement
- Construction: Bent axle
- Displacement: 75.9 cm3/rev
- Maximum rotation speed: 3800 rpm
- Maximum speed (short-term): 4100 rpm
- Nominal working pressure: 450 bar
- Maximum pressure (short-term): 500 bar
- Output torque (at ?p=430 bar): 519 N m
- Power at angular speed: 207 kW
- Direction of rotation: Bidirectional
- Shaft type: Splined (21 teeth, diameter 34 mm)
- Mounting flange: ISO 3019-2 (2 holes)
- Porting: According to ISO 6149
- Coating: Anti-corrosion oil (default)
- Weight: ~27.5 kg
These characteristics make the Linde HMF75-02 fixed displacement hydraulic motor suitable for applications where high power is required in a compact size.
Hydraulic motor cross number: 2933200807, 2933200804, 2933200803, 2933200802, 2943200801, 0009215627, 2933231403, 2533231406, 2333200402, 5203200427, 5203200426, 5203200411, 5203200400, 2933233112, 2933233111, 2933233110, 2933233109, 2933233108, 2933435105, 2933240206, 2933230107, 2933230501, 0009143500, 0009143506, 0009143218, 9456622505, 0009280367
Installed in the model: FUCHS MHL340, Liebherr A 914, Liebherr A 922, Liebherr A 924
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMF75-02 hydraulic motor.
