HMR90-01

Characteristics of the Linde HMR90-01 hydraulic motor

The Linde HMR90-01 hydraulic motor is a variable displacient axial piston motor designed for operation in closed hydraulic circuits. This motor provides high power, reliability and efficiency, making it suitable for use in mobile machinery, construction machinery and industrial equipment.

Technical specifications of the Linde HMR90-01 hydraulic motor:

• Motor type: Axial piston with variable displacient
• Construction: Bent axle
• Displacient: 90 cm³/rev
• Maximum rotation speed: 3700 rpm
• Nominal working pressure: 450 bar
• Maximum pressure (short-term): 500 bar
• Output torque (at ?p=430 bar): 613 N m
• Power at angular speed: 260 kW
• Weight: ~38 kg

These characteristics make the Linde HMR90-01 variable displacient hydraulic motor suitable for applications where high power is required in a compact size.

The Linde HMR90-01 regulating motor has the following features and advantages:

• High reliability: Ensures a long service life even with intensive use.
• Compact design: Allows the motor to be integrated in confined spaces.
• Flexibility in settings: Ability to adapt to different systi requirients.

Hydraulic motor cross number: 2343200805, 0009215619, 9517000122, 9517000129, 0009144004, 0009144098, 0009143805, 0009153521, 0009143515, 9289003666, 9456622544, 2343201400, 2343201400, 2343200401, 2343200425, 2443240205, 2443232005, 2443232005, 2443231801, 2443014005, 2443400000, 0009841005, 2443400005, 0009841004, 2443230105, 2343230510, 0009280393, 0009280344, 9509000818, 9509000731

Installed in the model:

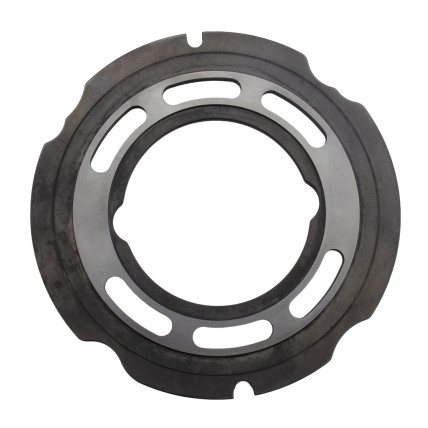

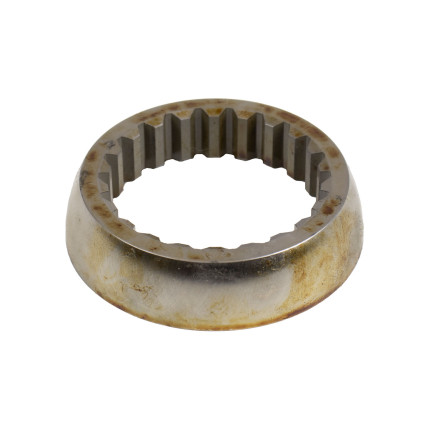

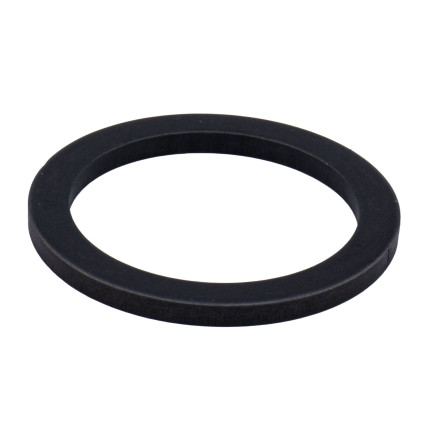

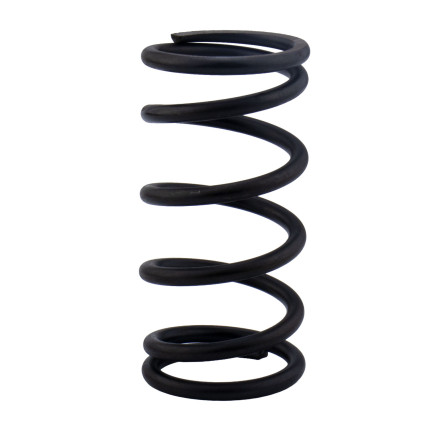

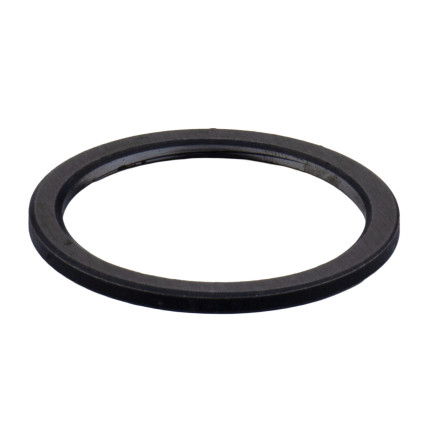

The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMR90-01 hydraulic motor.
