Sort By:
Most Viewed
Vendor code:
Model: 10891
Spare part: Ball guide Kawasaki 0365308 SKS Part number: 0365308 Cross-Number: XKAH-00159 Use in: Pl..
33.35 $
excl. VAT 27.79 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10884
Spare part: Ball Guide Washer Kawasaki M2X150 SKS Part number: Cross-Number: Use in: Kawasaki M2X150..
10.84 $
excl. VAT 9.03 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 3817
Spare part: Bearing Kawasaki 0365324 SNR Part number: 0365324 Cross-Number: Use in: Please make sure..
34.08 $
excl. VAT 28.40 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 10893
Spare part: Cylinder block press Pin Kawasaki 0365310 SKS Part number: 0365310 Cross-Number: XKAH-00..
3.28 $
excl. VAT 2.73 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:

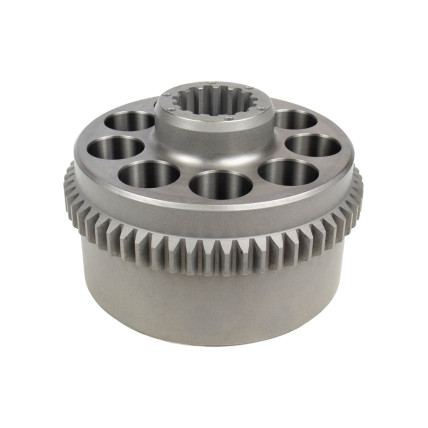

Model: 10886
Spare part: Cylinder block Rotor Kawasaki 0365307 SKS Part number: 0365307 Cross-Number: XKAH-00160,..
274.74 $
excl. VAT 228.95 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:

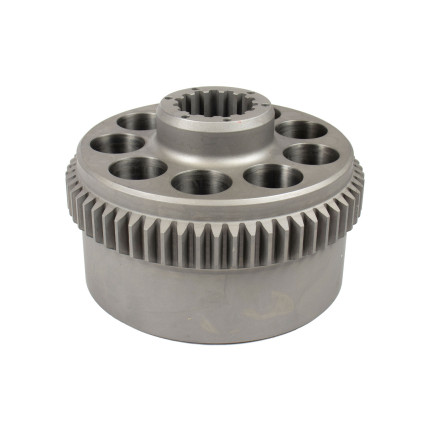

Model: 10887
Spare part: Cylinder block Rotor Kawasaki 04556 SKS Part number: 04556 Cross-Number: Use in: Please ..
309.08 $
excl. VAT 257.57 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:

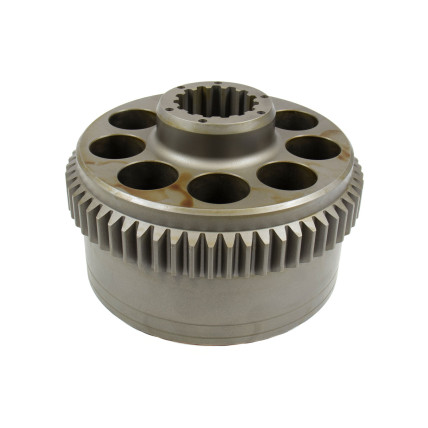

Model: 6436
Spare part: Cylinder block Rotor Kawasaki M2X150, M2X170 HANDOK Part number: Cross-Number: Use in: K..
312.53 $
excl. VAT 260.44 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:

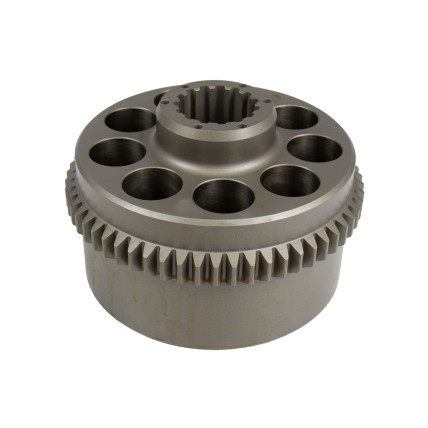

Model: 3847
Spare part: Cylinder block Rotor Kawasaki XKAH-00160 HANDOK Part number: XKAH-00160 Cross-Number: 03..
262.57 $
excl. VAT 218.81 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:

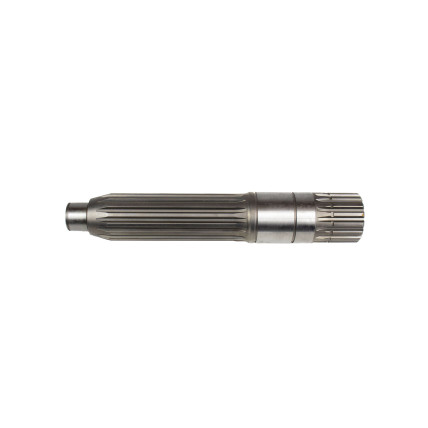

Model: 4019
Spare part: Drive Shaft Motor Kawasaki M2X150, M2X170 L=255.7 mm HANDOK Part number: Cross-Number: U..
91.18 $
excl. VAT 75.98 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:

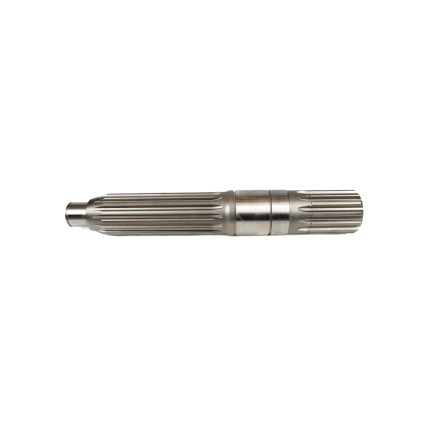

Model: 6437
Spare part: Drive Shaft Motor Kawasaki M2X150, M2X170 L=288.0 mm HANDOK Part number: Cross-Number: U..
141.95 $
excl. VAT 118.29 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:

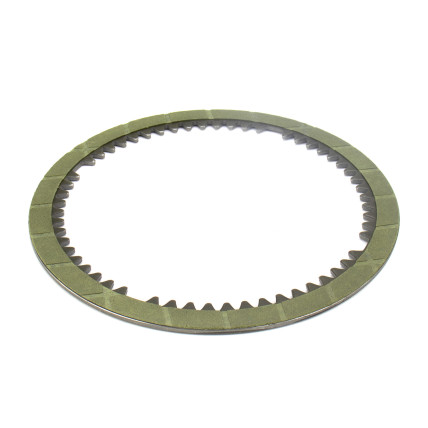

Model: 4020
Spare part: Friction plate Kawasaki XKAH-00126 AFM
Part number: XKAH-00126
Cross-Number:
..
25.20 $
excl. VAT 21.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:

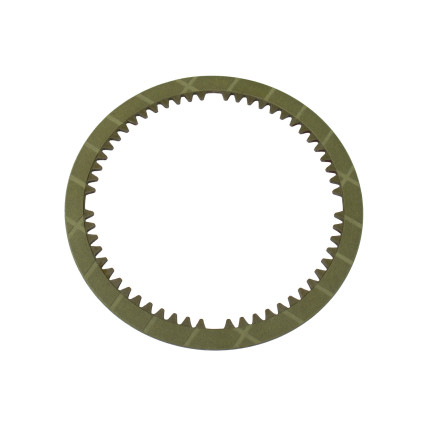

Model: 10888
Spare part: Friction plate Kawasaki XKAH-00126 SKS Part number: XKAH-00126 Cross-Number: Use in: Ple..
26.80 $
excl. VAT 22.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Top
Most Viewed
Vendor code:

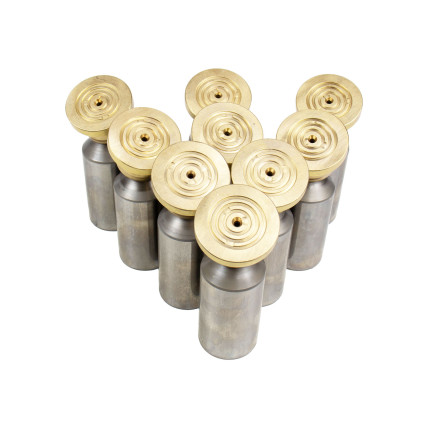

Model: 10890
Spare part: Piston shoe Kawasaki 0365301 SKS Part number: 0365301 Cross-Number: XKAH-00154+XKAH-0015..
23.09 $
excl. VAT 19.24 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:

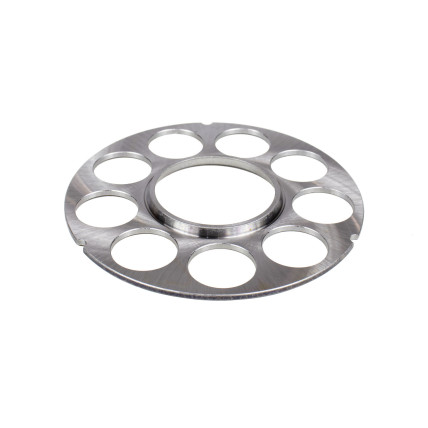

Model: 10892
Spare part: Retainer Plate Kawasaki 0365313 SKS Part number: 0365313 Cross-Number: XKAH-00152 Use in..
38.20 $
excl. VAT 31.83 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12566
Spare part: Roller Bearing VOE14596311 Kawasaki K5V200DT, K3V140, K3V180, K3VG180, K5V160, K5V180, K..
100.80 $
excl. VAT 84.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Kawasaki M2X150 hydraulic motor specifications
The Kawasaki M2X150 hydraulic motor is a fixed-displacement axial piston motor with a swash plate, specifically designed for the slewing mechanisms of medium and large excavators.
Technical specifications of the Kawasaki M2X150 hydraulic motor:
- Type: Fixed displacement axial piston motor with swash plate
- Displacement: 150 cm3/rev
- Maximum working pressure: 29 MPa (290 bar)
- Maximum torque: approximately 13,000 N m
- Maximum rotation speed: approximately 90 rpm
- Maximum flow rate: up to 150 l/min
- Brake release pressure: 2–7 MPa
Design features of the Kawasaki M2X150 hydraulic motor:
- Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
- High efficiency: Optimized design ensures stable operation under high loads.
- Reliability: Built-in valves provide overload protection and stable system operation.
Hydraulic motor cross number: 4244113, 4334276, 4224991, 4246413, 4392604, 4486433, 4352851, 4312837, 4429583, 31N8-12010, 31EL-12060, 31N7-10160, 31Q7-10150, 31Q7-10150, 31Q7-10130, 31N8-12010, 31N8-12020, 31Q8-10150, 31Q8-10151, 31Q8-10130, 31NB-11160, 31NB-11140
Installed in the model:
- Hitachi CX1000, CX1100, CX1800, CX2000, CX350DR, CX500, CX550, CX700, EX200, EX220, EX400, EX400-3, EX400-5, EX450-3
- Hyundai R160LC-7, R160LC-7A, R170W-7, R170W-7A, R180LC-7, R180LC-7A, R250LC-7, R250LC-7A, R250LC-9, R260LC-9A, R260LC-9S, R290LC-7, R290LC-7A, R290LC-7A, R290LC7H, R290LC-9, R290LC-9MH, R300LC-7, R300LC-7, R300LC-9A, R305LC-7, R320LC-7, R320LC-7A, R450LC-7, R450LC-7A, R500LC-7, R500LC-7A
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X150 hydraulic motor.
