K3VL112

Kawasaki K3VL112 hydraulic pump specifications

The Kawasaki K3VL112 hydraulic pump is a variable displacement axial piston pump with a swash plate designed for open hydraulic systems in mobile and industrial applications.

Technical specifications of the Kawasaki K3VL112 hydraulic pump:

• Type: Swash plate axial piston pump
• Displacement: 112 cm³/rev
• Nominal pressure: 320 bar
• Maximum pressure: 350 bar
• Maximum rotation speed (self-priming): 2200 rpm
• Maximum rotation speed (with increased inlet pressure): 2700 rpm
• Weight: approximately 65 kg
• Working fluid: Mineral hydraulic oil with anti-wear properties
• Viscosity range: 200–1000 cSt (system must be warmed up before starting)
• Applications: garbage trucks, injection machines, fans, tractors, combines, excavators, loaders, cranes

Design features of the Kawasaki K3VL112 hydraulic pump:

• Configurations: single-section
• Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
• Additional options: presence or absence of PTO (power take-off shaft)

The Kawasaki K3VL112 hydraulic pump has the following advantages::

• High reliability: durability and wear resistance
• Compact: easy to install in limited space
• Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
• High performance: stable oil supply even under high loads

Hydraulic pump cross number:

Installed in the model:

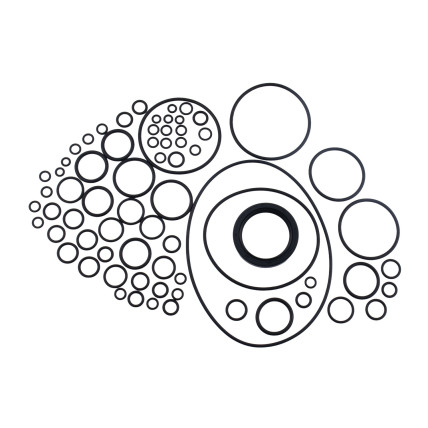

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K3VL112 hydraulic pump.
