Vendor code:
Model: 9638
Spare part: Cylinder block Rotor Linde 2923200824 SKS Part number: 2923200824 Cross-Number: Use in: ..
378.92 $
excl. VAT 315.77 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 10859

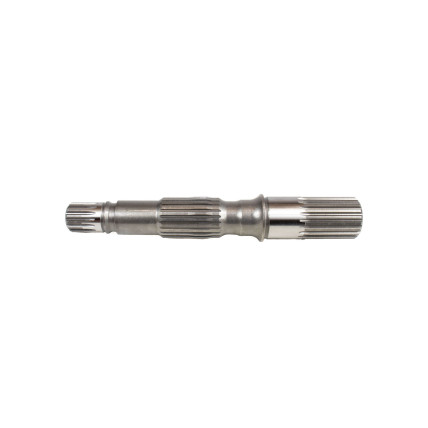

Spare part: Drive Shaft Linde 2623230105 SKS Part number: 2623230105 Cross-Number: Use in: Please ma..
122.95 $
excl. VAT 102.46 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 9685
Spare part: Retainer Plate Linde 2623231403 SKS Part number: 2623231403 Cross-Number: Use in: Please..
53.04 $
excl. VAT 44.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9639
Spare part: Spring of Rotor Linde 0009215205 SKS Part number: 0009215205 Cross-Number: Use in: Pleas..
10.55 $
excl. VAT 8.79 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 12049

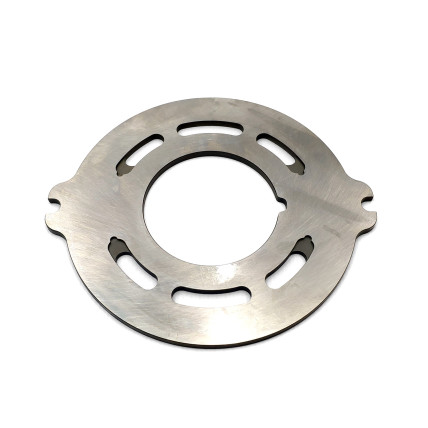

Spare part: Valve plate Motor Linde 2923240211 H=3.1 mm SKS Part number: 2923240211 Cross-Number: ..
81.17 $
excl. VAT 67.64 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12050

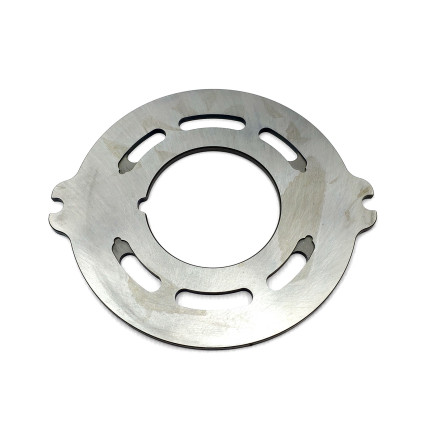

Spare part: Valve plate Motor Linde 2923240211 H=3.0 mm SKS Part number: 2923240211 Cross-Number: Us..
81.10 $
excl. VAT 67.58 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 10842
Spare part: Valve plate Motor Linde 2923240211 SKS Part number: 2923240211 Cross-Number: Use in: Ple..
69.28 $
excl. VAT 57.73 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 9901
Spare part: Washer Linde 0009142900 SKS Part number: 0009142900 Cross-Number: Use in: Please make su..
9.83 $
excl. VAT 8.19 $
Other parts:
Other parts
Characteristics of the Linde HMF55-02 hydraulic motor
The Linde HMF55-02 hydraulic motor is a fixed displacement axial piston motor designed for high-load applications. This model is part of the HMF-02 series from Linde Hydraulics, which is known for its reliability and efficiency.
Technical specifications of the Linde HMF55-02 hydraulic motor:
- Motor type: Axial piston with fixed displacement
- Construction: Bent axle
- Displacement: 54.7 cm3/rev
- Maximum rotation speed: 4100 rpm
- Maximum speed (short-term): 4400 rpm
- Nominal working pressure: 450 bar
- Maximum pressure (short-term): 500 bar
- Output torque (at ?p=430 bar): 374 N m
- Power at angular speed: 161 kW
- Direction of rotation: Bidirectional
- Shaft type: Splined
- Mounting flange: SAE J744 standard
- Porting: According to ISO 6149
- Coating: Anti-corrosion oil (default)
- Weight: ~19 kg
These characteristics make the Linde HMF55-02 fixed displacement hydraulic motor suitable for applications where high power is required in a compact size.
Hydraulic motor cross number: 2923200825, 2923200824, 0009215205, 0009142900, 0009142710, 2923233119, 2923233118, 2923233117, 2923233116, 2923233115, 2923231405, 2323200404, 2923240211, 2923435105, 2323230102, 0009280367
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Linde HMF55-02 hydraulic motor.
