Sort By:
Most Viewed
Vendor code:
Model: 15936
Spare part: Ball guide Komatsu 708-2G-13510 SKS Part number: 708-2G-13510 Cross-Number: Use in: Plea..
47.88 $
excl. VAT 39.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 12021
Spare part: Cylinder block press Pin Komatsu 708-2H-23360 SKS Part number: 708-2H-23360 Cross-Number..
3.71 $
excl. VAT 3.09 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Vendor code:
Model: 15879

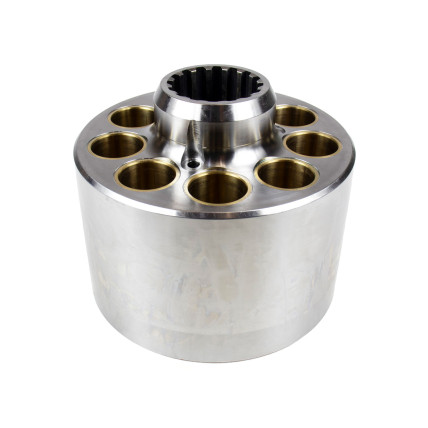

Spare part: Cylinder block Rotor Komatsu 708-2G-13191 SKS Part number: 708-2G-13191 Cross-Number: Us..
436.96 $
excl. VAT 364.13 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 7080

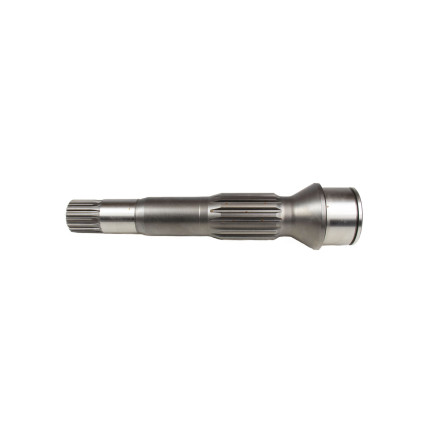

Spare part: Driven Shaft Komatsu 708-2G-12121 HANDOK Part number: 708-2G-12121 Cross-Number: 708-2G-..
127.02 $
excl. VAT 105.85 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 15937

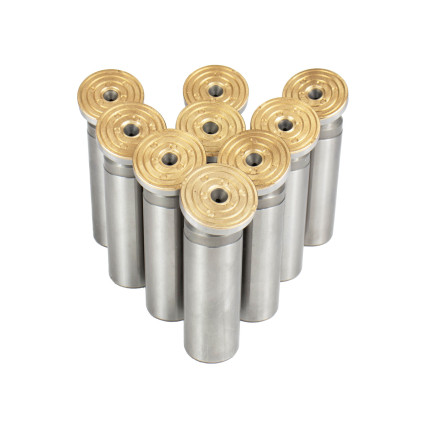

Spare part: Piston shoe Komatsu 708-2G-13311 SKS Part number: 708-2G-13311 Cross-Number: 708-2G-1337..
33.77 $
excl. VAT 28.14 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15935
Spare part: Retainer Plate Komatsu 708-2G-13411 SKS Part number: 708-2G-13411 Cross-Number: 708-2G-1..
47.88 $
excl. VAT 39.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 15644

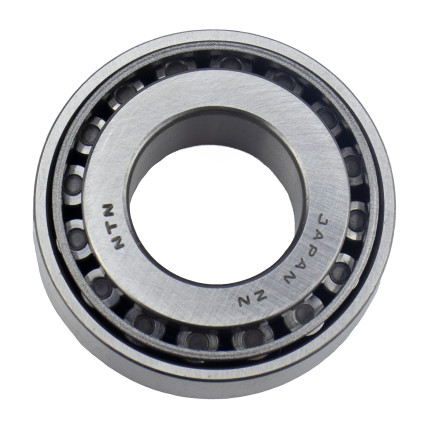

Spare part: Roller Bearing Komatsu 4T-32004X NTN
Part number: 4T-32004X
Cross-Number: 32004J..
21.60 $
excl. VAT 18.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Vendor code:
Model: 8493

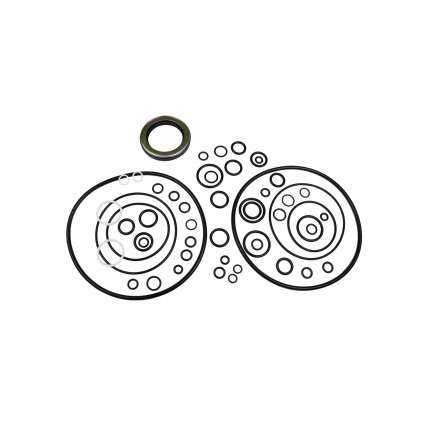

Spare part: Seal kit pump Komatsu HPV140 YBS Part number: Cross-Number: Use in: Komatsu HPV140 Use i..
65.04 $
excl. VAT 54.20 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Vendor code:
Model: 17632

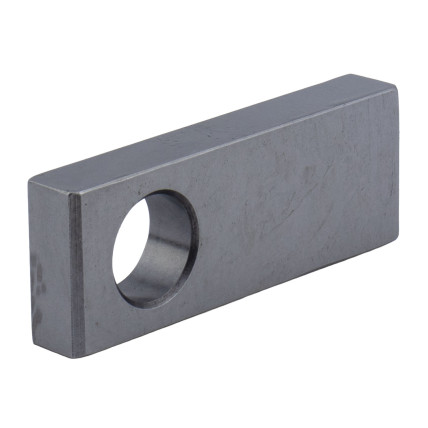

Spare part: Slider Komatsu 708-2G-14120 SKS
Part number: 708-2G-14120
Cross-Number:
Use i..
88.36 $
excl. VAT 73.63 $
Hydraulic parts other:
Hydraulic parts other
Novelty
Vendor code:
Model: 15636

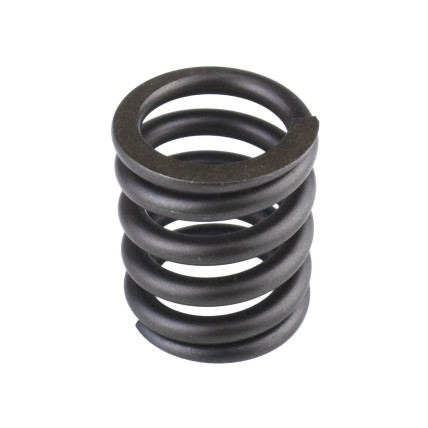

Spare part: Spring of Rotor Komatsu 708-2G-13152 AFM
Part number: 708-2G-13152
Cross-Number:..
26.40 $
excl. VAT 22.00 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Vendor code:
Model: 15938

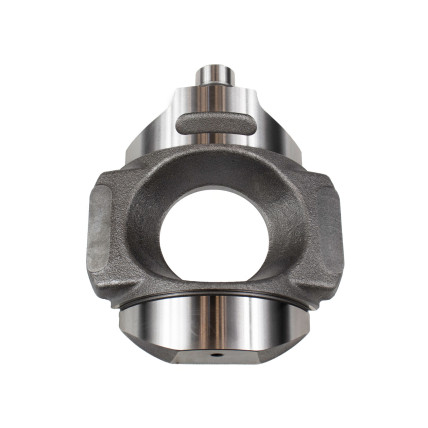

Spare part: Swash plate (Cam rocker) Komatsu 708-2G-13450 SKS Part number: 708-2G-13450 Cross-Number..
220.78 $
excl. VAT 183.98 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 15934

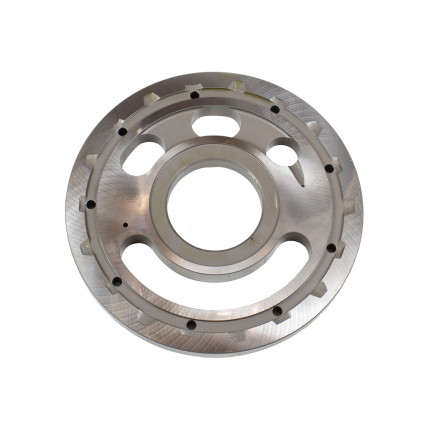

Spare part: Valve plate Left Komatsu 708-2G-13241 SKS Part number: 708-2G-13241 Cross-Number: Use in..
99.61 $
excl. VAT 83.01 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 7074
Pre-Order
Spare part: Ball guide Komatsu 708-2G-13510 HANDOK Part number: 708-2G-13510 Cross-Number: Use in: P..
64.44 $
excl. VAT 53.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Vendor code:
Model: 7077
Pre-Order
Spare part: Cylinder block and Valve plate Left Komatsu 708-2G-04151 HANDOK Part number: 708-2G-0415..
699.84 $
excl. VAT 583.20 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Vendor code:
Model: 7078
Pre-Order
Spare part: Cylinder block and Valve plate Right Komatsu 708-2G-04141 HANDOK Part number: 708-2G-041..
699.84 $
excl. VAT 583.20 $
Main hydraulic units:
Main hydraulic units
Komatsu HPV140 hydraulic pump specifications
The Komatsu HPV140 hydraulic pump is a powerful tandem axial piston pump with variable displacement (~280 cm3/rev in total), optimized for medium and large excavators (PC300, PC350, PC800). It is characterized by high performance (up to 420 bar), reliability due to its robust design, and easy repairability with numerous available spare parts.
Technical characteristics of the Komatsu HPV140 hydraulic pump:
- Type: variable displacement axial piston pump (swash-plate), two-section (tandem)
- Volume: ~140 cm3/rev per section, total about 280 cm3/rev
- Nominal pressure:
- approximately 35 MPa (350 bar)
- peak – up to 42 MPa (420 bar)
- Rotation speed:
- nominal – ~2200–2500 rpm
- maximum – up to 3000 rpm
- Weight: about 220 kg
- Casing circuit: used as the main pump for the open/closed circuit of large excavators
Hydraulic pump cross number: 708-1G-00014, 708-1G-01014, 708-1G-00030, 708-1G-01030, 708-2G-00060, 708-2G-01063, 708-2G-90060, 708-2G-00024, 708-2G-00023, 708-2G-00022, 708-2G-01021, 708-2G-01025, 708-2G-00700, 708-2G-01070, 708-2G-000700, 708-2G-01070, 708-2G-01074, 708-2G-01072, 708-2G-00140, 708-2G-01140, 708-2G-00800, 708-2G-00801, 708-2G-00802, 708-2G-01081, 708-2G-01080, 708-2G-01083, 708-2G-01120, 708-2G-00120
Installed in the model:
- Crawler excavators PC300-7, PC300HD-7L, PC300LC-7, PC340LC-7K, PC340NLC-7K, PC350-7, PC380LC-7K, PC300HD-7EO, PC300LL-7EO, PC300-8, PC300-7EO, PC350-8, PC360LC-10, PC390LC-10
- Wheeled excavators PW160-7, PW160-7EO, PW160-7K, PW180-7EO, PW180-7K
- Wheel loaders WA600-6, WA600-8
- Wheel dozer WD600-6
- Bulldozer (crawler dozer) D475A-5C
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Komatsu HPV140 hydraulic pump.
