A2FO32 A2FM32

Bosch Rexroth A2FO32 A2FM32 pump specifications

Models A2FO32 (open circuit) and A2FM32 (closed circuit) are constant displacient axial piston pumps that are widely used in hydraulic systis to provide high performance and reliability under various conditions. These pumps have a wide range of applications in industry, agriculture and mobile systis.

Technical specifications of Bosch Rexroth A2FO32 and A2FM32:

• Type: axial piston pump
• Maximum working volume: 32 cm³
• Working pressure
  • A2FO32
    • Nominal: up to 35 MPa 350 bar
    • Maximum: up to 40 MPa 400 bar
  • A2FM32
    • Nominal: up to 40 MPa 400 bar
    • Maximum: up to 45 MPa 450 bar
• Maximum rotation speed: 3500–4000 rpm
• Working environment: hydraulic oils ISO VG 32–46 or equivalent
• Weight:
  • A2FO32: 9-10 kg
  • A2FM32: 10-11 kg
• Application in special equipment: press machines, pumping systis, combines, sprayers, agricultural machinery and hydraulic systis for processing crops, etc.

Hydraulic pump cross number:

Installed in the model:

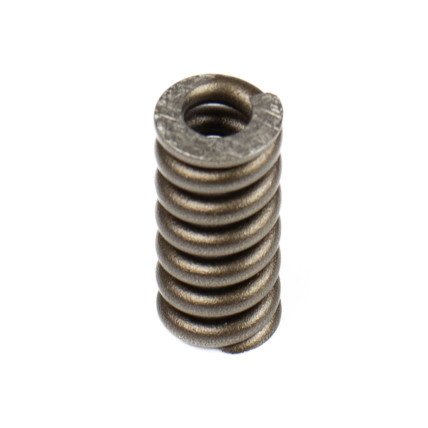

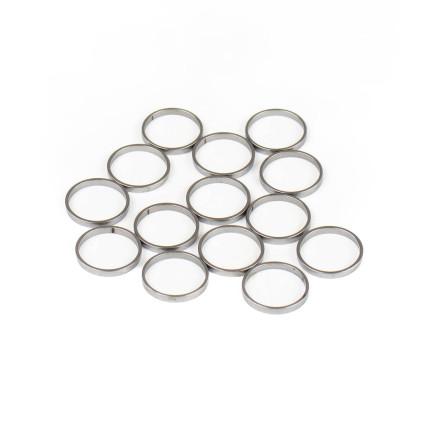

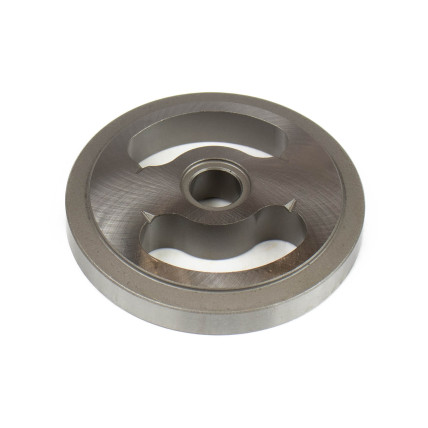

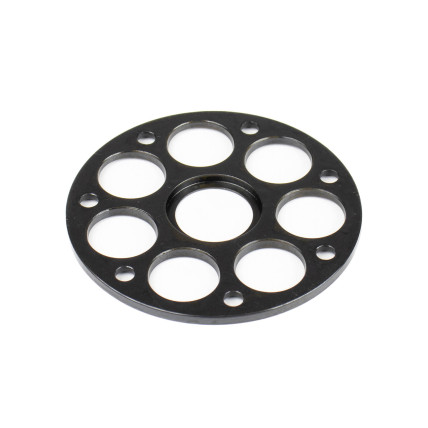

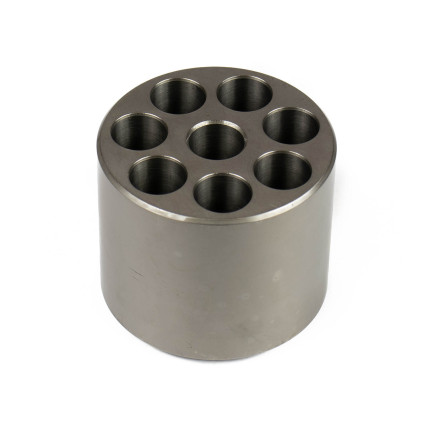

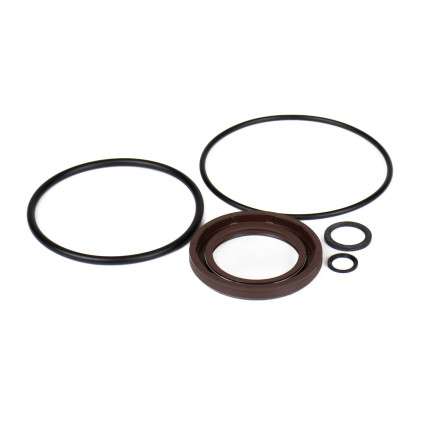

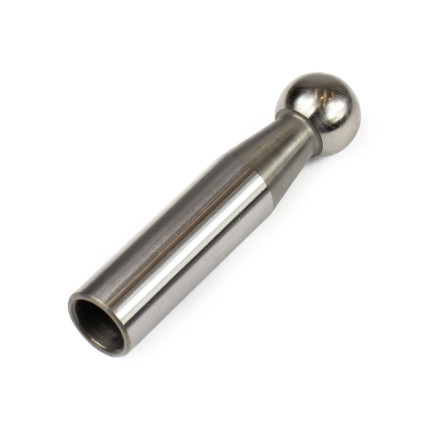

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A2FO32 and A2FM32 hydraulic pump.
