Sort By:
Most Viewed
Model: 13036
Spare part: Center Pin Bosch Rexroth R909409909 SKS Part number: R909409909 Cross-Number: Use in: Pl..
19.08 $
excl. VAT 15.90 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 11715
Spare part: Cylinder block Rotor Bosch Rexroth R909421291 SKS Part number: R909421291 Cross-Number: ..
171.96 $
excl. VAT 143.30 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 14780
Spare part: Drive Shaft Bosch Rexroth R909425890 SKS Part number: R909425890 Cross-Number: R90992181..
171.00 $
excl. VAT 142.50 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Top
Most Viewed
Model: 11716
Spare part: Piston Bosch Rexroth R902021900 SKS Part number: R902021900 Cross-Number: Use in: Please..
34.44 $
excl. VAT 28.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15559
Spare part: Piston Ring Bosch Rexroth A8VO28, A7VO28, A6VM28 SKS
Part number:
Cross-Number:
..
7.56 $
excl. VAT 6.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13035
Spare part: Retainer Plate Bosch Rexroth R902072550 SKS Part number: R902072550 Cross-Number: Use in..
34.56 $
excl. VAT 28.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 14215
Spare part: Retainer Plate Bosch Rexroth R909404873 SKS
Part number: R909404873
Cross-Number..
34.44 $
excl. VAT 28.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13037

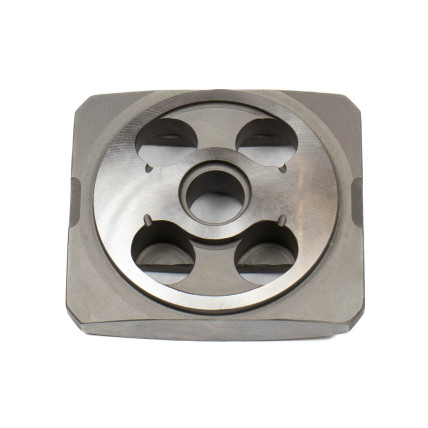

Spare part: Valve plate Motor Bosch Rexroth R909921785 SKS Part number: R909921785 Cross-Number: Use..
68.76 $
excl. VAT 57.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Bosch Rexroth A6VM28 motor
The Bosch Rexroth A6VM28 is a variable displacement axial piston motor used in closed and open hydraulic systems. It provides high torque and precise speed control, making it ideal for mobile and industrial applications.
Technical specifications of Bosch Rexroth A6VM28:
- Working volume:
- Nominal: 18 cm³
- Maximum: 28 cm³
- Working pressure:
- Nominal: up to 40 MPa 400 bar
- Maximum: up to 45 MPa 450 bar
- Maximum rotation speed: 4200 rpm
- Torque: up to 178 N m
- Weight: 12–15 kg
- Operating medium: mineral oils (ISO VG 32–46) or biodegradable fluids compatible with HLP/HVLP
- Displacement adjustment: hydraulic or electro-hydraulic
- Application in special equipment: excavators, loaders, road rollers, combines, tractors, sprayers, etc.
Hydraulic motor cross number: R902218743 R992001672 R902207403 R902218727 R902218674 R902189184 R902075347 R909604221 R909604573 R909604852 R909605436 R909605703 R909610106 R909610412 R909610932 R902158598 R902052198 R902040133 R909604173 R902092143 R902119896 R902130791 R902132298 R902134616 R902070568 R909604013 R902052408 R902052415 R902054023 R909604249 R909611303 R909421740 R909434706 R909447948 R902082438 R902018310 R902024614 R902028828 R909610699 R909604202 R909603912 R902189188 R902054599 R902054606 R902054613 R902054615 R902065984 R902006617 R902014303 R909604629 R909604159 R902006872 R902052416
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Bosch Rexroth A6VM28 hydraulic motor.
