AP2D16

Characteristics of the Uchida AP2D16 hydraulic pump

The Uchida AP2D16 hydraulic pump is a dual (tandem) axial piston pump with variable displacement, which serves as the main source of hydraulic energy for compact excavators and other mobile equipment. Its design combines two pumps in one sturdy housing, which allows you to effectively power multiple hydraulic circuits simultaneously, ensuring smooth and fast operation. Thanks to the built-in power control system, the AP2D16 pump optimally uses engine power, which contributes to fuel economy and protects the engine from overloads.

Technical characteristics of the Uchida AP2D16 hydraulic pump:

• Type: Axial piston pump, double (tandem), with variable displacement.
• Design: Swash plate pump. Often equipped with a third gear pump for servo control.
• Displacement (piston part): 2 x 16 cm³/rev
• Nominal working pressure: 20.6 - 24.5 MPa (206 - 245 bar)
• Maximum rotation speed: ~2400 - 2600 rpm
• Performance (Flow): 2 x ~38-42 l/min
• Direction of rotation: Right (clockwise)
• Weight: Approximately 35 - 40 kg:
• Application: Main hydraulic pump for mini excavators weighing 3.5-4.5 tons.

Hydraulic pump cross number:

Installed in the model:

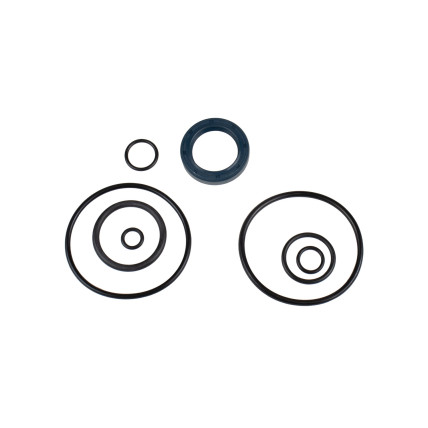

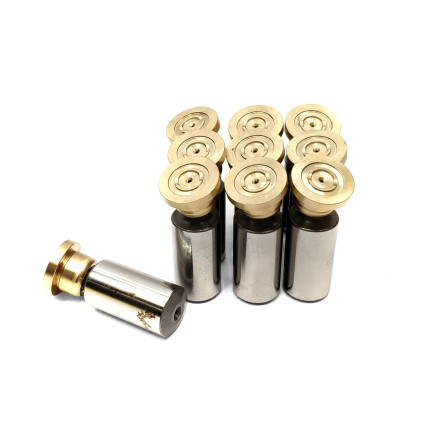

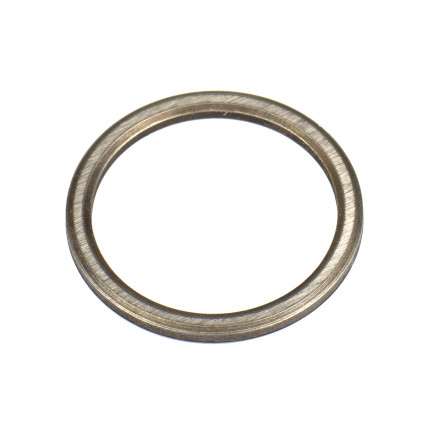

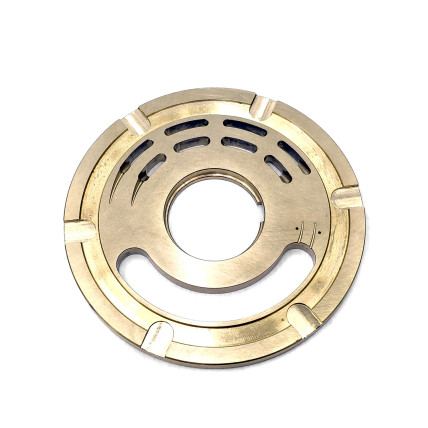

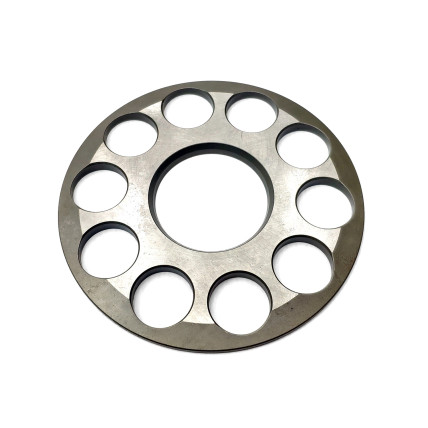

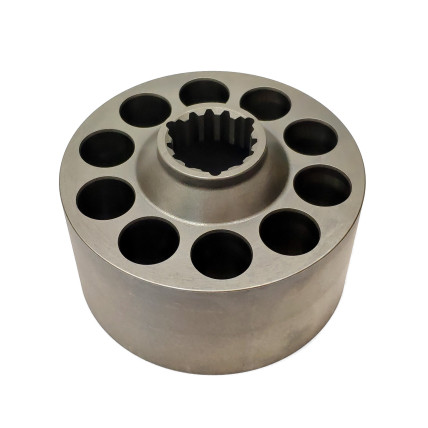

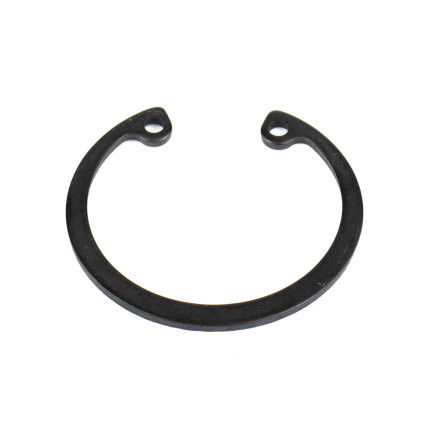

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Uchida AP2D16 hydraulic pump.
