Model: 9284
Spare part: Ball guide Uchida AP2D36, AP2D38 HANDOK Part number: Cross-Number: Use in: Uchida AP2D36..
29.64 $
excl. VAT 24.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15312
Spare part: Cylinder block press Pin Uchida 2.123-00079 L=29.7 mm SKS Part number: 2.123-00079 Cross..
2.52 $
excl. VAT 2.10 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 10542

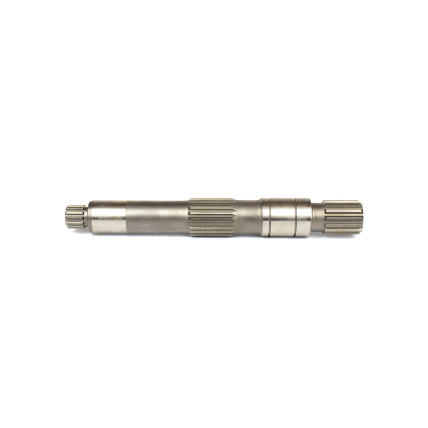

Spare part: Drive Shaft Uchida AP2D38 HANDOK Part number: Cross-Number: Use in: Uchida AP2D38 Use in..
59.88 $
excl. VAT 49.90 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 9429
Spare part: Gear Pump Double Uchida 1902024800 HANDOK Part number: 1902024800 Cross-Number: Use in: ..
252.00 $
excl. VAT 210.00 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 15983
Spare part: Gear Pump Double Uchida 1902024800 SKS Part number: 1902024800 Cross-Number: Use in: Ple..
300.12 $
excl. VAT 250.10 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 9277
Spare part: Gear Pump Double Uchida AP2D21, AP2D25, AP2D28, AP2D36, AP2D38 21.0 СС, 10.7CC HANDOK Pa..
285.36 $
excl. VAT 237.80 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 9428
Spare part: Gear Pump Double Uchida XJDD-01033 18.8 СС, 9.0 CC HANDOK Part number: XJDD-01033 Cross-..
297.36 $
excl. VAT 247.80 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 9273
Spare part: Gear pump Uchida AP2D21, AP2D25, AP2D28, AP2D36, AP2D38 9.0 CC HANDOK Part number: Cross..
176.76 $
excl. VAT 147.30 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 17055
Spare part: Gear pump Uchida XJDD-00792 SKS
Part number: XJDD-00792
Cross-Number: XJDD-00792..
293.04 $
excl. VAT 244.20 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 9293

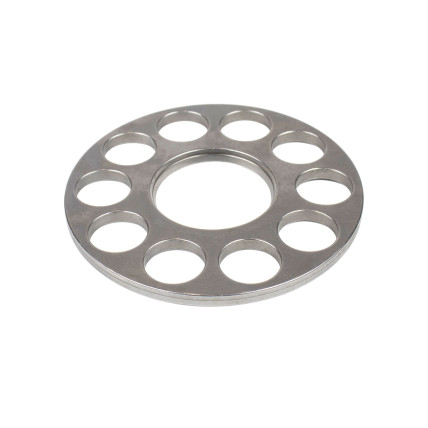

Spare part: Retainer Plate Uchida AP2D36, AP2D38 HANDOK Part number: Cross-Number: Use in: Uchida AP..
26.52 $
excl. VAT 22.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13456
Spare part: Retainer Plate Uchida AP2D36, AP2D38, AP2D42 HANDOK Part number: Cross-Number: Use in: U..
24.36 $
excl. VAT 20.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9427

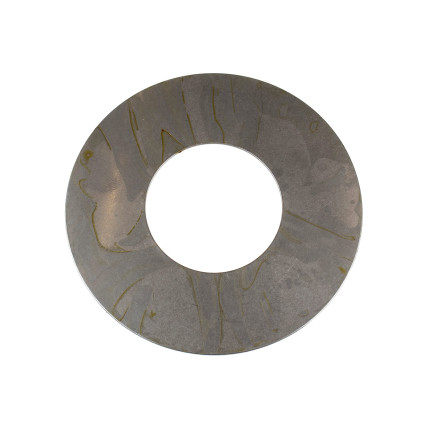

Spare part: Shoe plate Uchida AP2D36, AP2D38, AP2D42 HANDOK Part number: Cross-Number: Use in: Uchid..
21.12 $
excl. VAT 17.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 5969

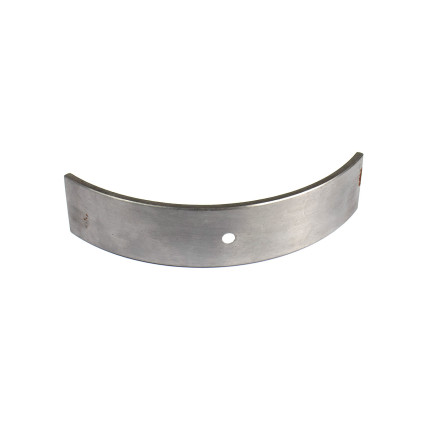

Spare part: Sliding Bearing Vickers 692949 SKS Part number: 692949 Cross-Number: Use in: Please make..
20.40 $
excl. VAT 17.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 9285
Pre-Order

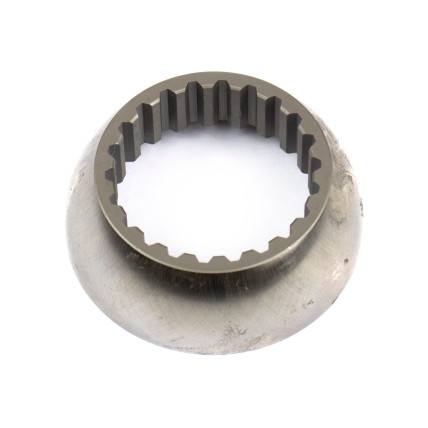

Spare part: Ball guide Uchida AP2D36, AP2D38, AP2D42 HANDOK Part number: Cross-Number: Use in: Uchid..
29.64 $
excl. VAT 24.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9291
Pre-Order

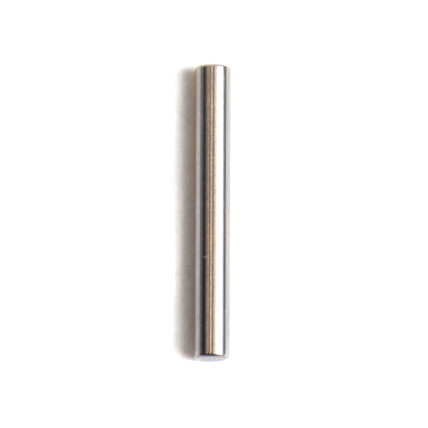

Spare part: Cylinder block press Pin Uchida 2.123-00079 L=26.5 mm HANDOK Part number: 2.123-00079 Cr..
3.12 $
excl. VAT 2.60 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Characteristics of the Uchida AP2D38 hydraulic pump
The Uchida AP2D38 hydraulic pump is a high-performance, variable displacement, dual (tandem) axial piston pump that serves as the main hydraulic pump in mid-range crawler excavators. Its design combines two pumps in one sturdy housing, which allows it to simultaneously power multiple hydraulic circuits for complex operations without loss of power. With its robust design and built-in power control system, the AP2D38 pump ensures efficient use of engine power, stable operation, and durability of the entire hydraulic system of the machine.
Technical characteristics of the Uchida AP2D38 hydraulic pump:
- Type: Axial piston pump, double (tandem), with variable displacement
- Design: Swash plate pump. Probably equipped with a third gear pump for the control circuits
- Displacement (piston part): 2 x 38 cm3/rev
- Nominal working pressure: ~29.4 MPa (300 bar)
- Maximum pressure: up to ~34.3 MPa (350 bar)
- Maximum rotation speed: ~2000 - 2200 rpm
- Performance (Flow): 2 x ~76-84 l/min
- Direction of rotation: Right (clockwise)
- Weight: Approximately 75 - 85 kg
- Application: Main hydraulic pump for 8-10 ton crawler excavators
Hydraulic pump cross number: R971050727, 4430672, 4438309, 4350924, 4460977, 0755501, 31N1-10010, 31N1-10011, 31M6-15010, 31N1-10010, 31Q1-10050, R971056752, XJDD-00002, XJDD-01296, XJDD-00024, XJDD-00025, XJDD-00026, XJDD-00027, XJDD-00028, XJDD-01297, XJDD-00029, XJDD-00030, XJDD-00011, XJDD-00012, XJDD-00013, XJDD-00014, XJDD-00015, XJDD-00016, XJDD-00017, JDD-00020, XJDD-00003, XJDD-00031, XJDD-00038, XJDD-00032, XJDD-00033, XJDD-00034, XJDD-00035, XJDD-00036, XJDD-00037, XJDD-00021, XJDD-00022, XJDD-00023, XJDD-00004, XJDD-00039, XJDD-00040, XJDD-00041, XJDD-00042, XJDD-00043, XJDD-00044, XJDD-00045, XJDD-00046, XJDD-00006, XJDD-00056, XJDD-00065, XJDD-00057, XJDD-00058, XJDD-00066, XJDD-00059, XJDD-00067, XJDD-00060, XJDD-00068, XJDD-00061, XJDD-00062, XJDD-00063, XJDD-00064, XJDD-00007, XJDD-00069, XJDD-00070, XJDD-00071, XJDD-00072, XJDD-00073, XJDD-00074, XJDD-00075, XJDD-00076, XJDD-00009, XJDD-00010
Installed in the model:
- YANMAR VIO70, VIO75.
- HITACHI ZX70, ZX75, ZX75US, ZX80, EX75, EX60-3, EX60-5, EX70-5, EX75UR-3.
- HYUNDAI R80-7.
- Haniks 30, 308B, 4M40.
- KOBELCO SK60-5.
- CAT 307, 307B, 308, 308B.
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Uchida AP2D38 hydraulic pump.
